Find Light Bars & Off-Road Lighting for your F-150

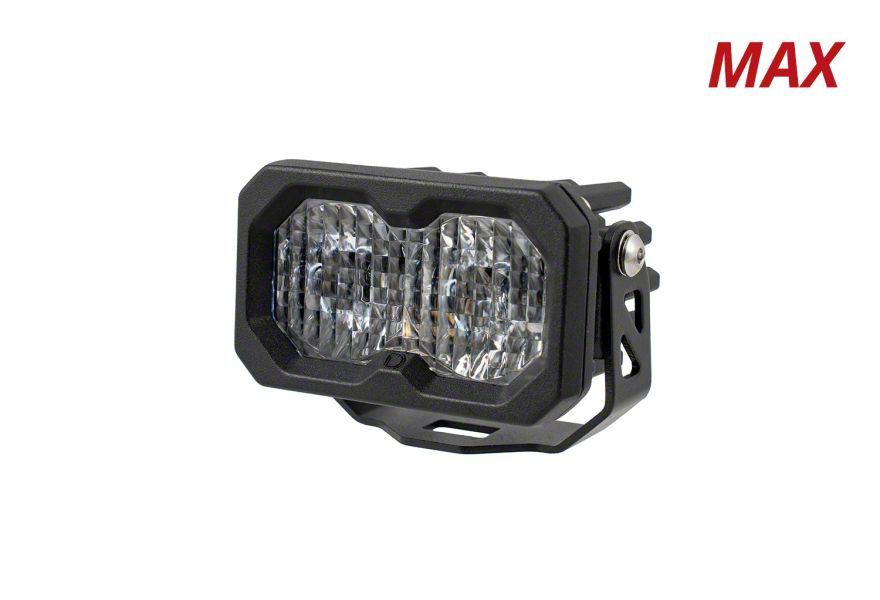

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Driving (Universal; Some Adaptation May Be Required)
Item T637133
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial in Your Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temperature (CCT): 6000K _x000D_
- Power (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector: Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (in): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (lb): 0.55 _x000D_
- Product Weight (lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White SAE Driving is a compact and powerful lighting solution designed for automotive use. It delivers intense, focused light output ideal for tight mounting spaces on vehicles, enhancing visibility and safety in various conditions.
_x000D__x000D_Construction and Appearance. This LED pod features a durable aluminum casting with a powder-coated finish for enhanced heat dissipation and corrosion resistance. The polycarbonate lens has a rubber gasket seal to provide moisture-proof performance. Its passive pin-fin heatsink maintains optimal operating temperatures, ensuring maximum longevity.
_x000D__x000D_Installation. Installation is straightforward, typically requiring only basic hand tools with no complex wiring or drilling needed for most mounting applications. The compact form factor and multiple mounting points offer adjustable positioning for a tailored setup.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, providing assurance of its quality and durability.
_x000D__x000D_Application. Fits universally; some adaptation may be required.
Diode Dynamics DD8242S
