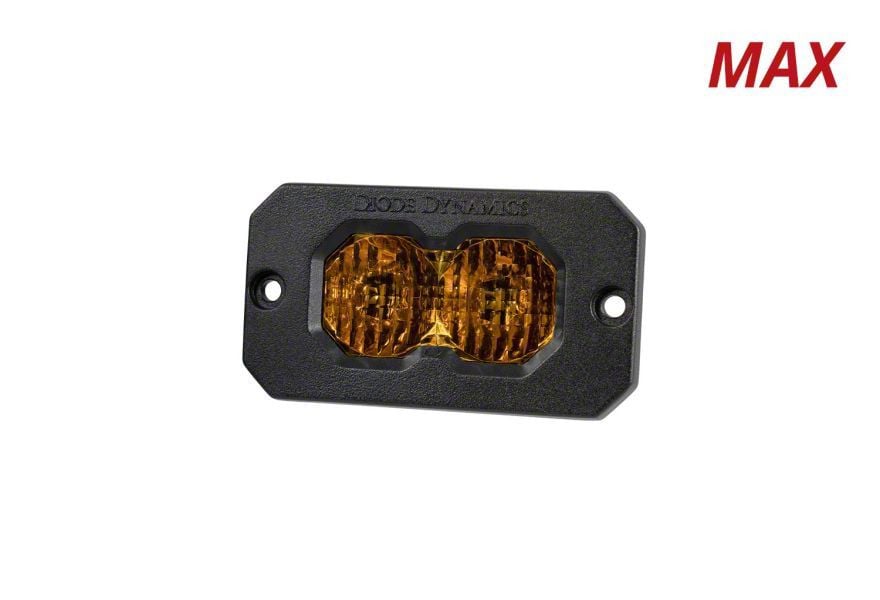

Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Light with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)
Item T637123
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Includes One Stage Series C2 2.0 LED Pod, One Deutsch-Style Wire Pigtail, One Mounting Bracket, and Hardware _x000D_
- Osram Boost HX LED Emitter _x000D_
- Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Passive Cooling with Pin-Fin Heatsink _x000D_
- IP69K Waterproof and High-Pressure Rated _x000D_
- Operates Between -40°C to 85°C (-40°F to 185°F) _x000D_
- Operating Voltage Range 9-30V _x000D_
- Power Consumption: Main Beam 30 Watts, Backlight 0.38 Watts _x000D_
- Output Color 3000K Yellow _x000D_
- Raw Output Lumens Up to 3,960 _x000D_
- Peak Beam Intensity Up to 16,500 Candela for Combo/Driving Max _x000D_
- Combo/Driving Beam Pattern with 55x20 Degree Spread _x000D_
- Flood Beam Pattern with 70x45 Degree Spread _x000D_
- Backlight Functionality with Amber Low-Power Accent Light _x000D_
- Deutsch DT Input Connector _x000D_
- Polarity Specific _x000D_
- Stage Series Constant Current Driver _x000D_
- Product Dimensions 2.5 x 4.5 x 2.4 Inches _x000D_
- Unit Weight 0.55 Pounds _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
HIGH-POWER LED POD. The Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod with Amber Backlight and Yellow Flood is engineered to provide exceptional illumination from a compact design. Ideal for bumpers, cargo areas, trailers, or roof racks, this rugged pod delivers focused and efficient lighting with a maximum output of 3,960 lumens. Its advanced optics and robust construction ensure optimal performance and durability in demanding automotive environments.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Constructed with a powder-coated aluminum housing and a polycarbonate lens, this LED pod features a copper-core circuit board directly bonded to the Osram Boost HX LEDs for superior thermal management. The optics are crafted from optically designed material to enhance light focus and reduce glare, while the rubber gasket seals the assembly for IP69K-rated waterproof protection. The sleek amber backlight adds a modern accent with OEM-matching color.
_x000D__x000D_INSTALLATION. Installation typically takes 30 to 60 minutes using basic tools. The included flush mount kit allows for low-profile mounting on flat surfaces without the need for extensive modification or complicated wiring.
_x000D__x000D_WARRANTY. This LED pod comes with a limited lifetime warranty, ensuring reliability and customer satisfaction.
_x000D__x000D_APPLICATION. Designed for universal fitment, this LED pod may require some adaptation depending on the mounting location and vehicle configuration.
Diode Dynamics DD8129S
