How to Install Corsa 3 in. Sport Cat-Back Exhaust w/ Polished Tip - Single Side Exit (04-08 4.6L) on your Ford F-150

Please take time to read and understand these installation instructions.

We recommend that the installation of this system be performed by a qualified service center or professional muffler installer who has the necessary equipment, tools and experienced personnel. However, if you decide to perform this install, the use of a hoist and an additional person will be required.

CAUTION: Never work on a hot exhaust system. Allow time for the vehicle to cool. Always wear eye protection when working under a vehicle.

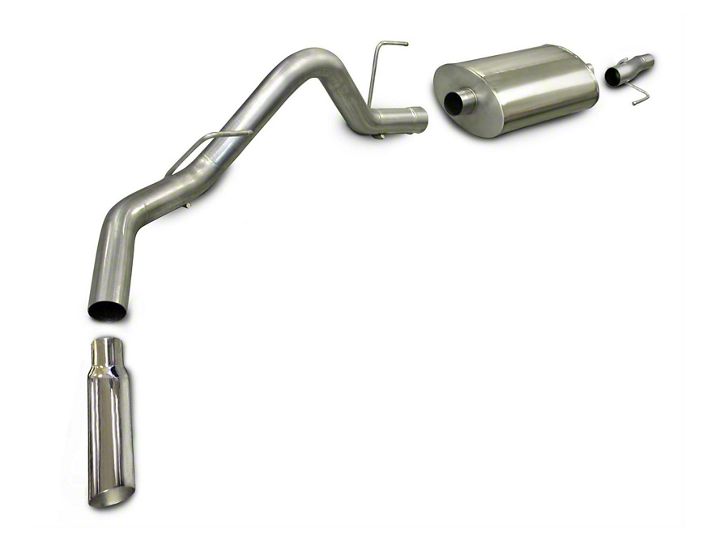

Bill of Materials:
1 dB Muffler Assembly
2 dB Slash Cut Tip
3 Tailpipe Assembly
4 Intermediate Pipe Assembly

1. Loosen the factory double bolt clamp at the front of the center pipe using a 13mm socket and ratchet. (See Fig. A)

2. Unbolt the muffler hanger mount from the chassis using a 10mm socket and ratchet. (See Fig. B)

3. Unbolt the front tailpipe hanger mount from the chassis using a long extension, and a 10mm socket and ratchet. (See Fig. C)

4. Unbolt the rear tailpipe hanger mount from the chassis using a long extension, and a 10mm socket and ratchet. (See Fig. D & E) Carefully remove the entire stock exhaust system from the vehicle by moving it forward and down past the rear axle. The stock exhaust is removed as one piece and is fully intact.

5. Remove the factory double bolt clamp from the center pipe, as this clamp will be reused during the installation process. (See Fig. F)

Note: If you have 2004 version of the vehicle, continue with step 6. If you have the 2005-2008 version of the vehicle, skip to step 7.

6. With the stock exhaust on the ground, loosen the clamp on the factory center pipe using a 15mm socket and ratchet. (See Fig G) Rotate the center pipe until the retaining boss on the stock exhaust is aligned with the slot and then remove the center pipe from the rest of the factory system. (See Fig. H & I) Save the center pipe and the clamp for reuse during the installation process.

7. Remove the factory muffler hanger (not shown) and tailpipe hangers from the rubber isolators on the hanger mounts using a grommet puller or a similar device. (See Fig. J & K) Note the position and orientation of each hanger mount. Set aside the muffler and tailpipe hanger mounts and the retaining bolts to be reused during the installation process.

NOTE: The use of a soapy water solution may aid in the removal and later installation of the hangers in the rubber isolators.

8. Removal is now complete. Installation of your dB Performance exhaust system can now begin.

NOTE: The supplied double edge clamps in this system will crush and permanently deform the exhaust piping as they are tightened. DO NOT tighten these clamps any more than is necessary to lightly hold the exhaust components in place, until the very end of this installation process. It will be difficult or impossible to make any positional or rotational adjustments to the exhaust system after these clamps have been tightened down.

Note: If you have 2004 version of the vehicle, continue with steps 3-5, then skip to step 9. If you have the 2005-2008 version of the vehicle, skip to step 6.

2004 Only

3. Locate the factory center pipe that was disconnected during the removal process, along with the factory double bolt clamp. Position the clamp in its original position, and reinstall the factory center pipe. Snug tighten both of the bolts on the double bolt clamp using a 13mm socket and ratchet. (See Fig. N) Make sure that the center pipe is oriented so that the notch at the rear of the pipe faces upwards.

NOTE: Using a soapy water solution on the muffler hanger grommet at this time will make the following step much easier to accomplish.

4. Locate the intermediate pipe assembly. Insert the intermediate pipe hanger into the factory muffler hanger grommet, and then move the front end of the intermediate pipe forward into the factory center pipe. Seat the front end of the intermediate pipe assembly into the center pipe expansion, past the end of the factory clamp. Use a rubber mallet if necessary to make sure the pipe is properly seated. (See Fig. 0)

5. Rotate the intermediate pipe assembly until the hanger is positioned in the middle of the factory muffler hanger grommet. Snugly tighten the factory clamp on the center pipe using a 15mm socket and ratchet. (See Fig. P)

2005-08 Only

6. Locate the dB Performance adapter pipe (See Fig. Q), along with the factory double bolt clamp. NOTE: dB Performance Supercab 6.5 ft bed adapter pipe is 21-3/4" long, the Supercrew 5.5 ft bed adapter pipe is 16-1/4" long, and the Supercrew 6.5 ft bed adapter pipe is 27-3/4" long. Position the clamp in its original position, and install the adapter pipe. Snug tighten both of the bolts on the double bolt clamp using a 13mm socket and ratchet. (See Fig. N)

NOTE: Using a soapy water solution on the muffler hanger grommet at this time will make the following step much easier to accomplish.

7. Locate the intermediate pipe assembly, and the 2.5" diameter supplied clamp. Insert the intermediate pipe hanger into the factory muffler hanger grommet, and then seat the front end of the intermediate pipe assembly into the adapter pipe expansion. (See Fig. R)

8. Rotate the intermediate pipe assembly until the hanger is positioned in the middle of the factory muffler hanger grommet. Secure the intermediate pipe in place with the supplied 2.5" clamp as shown, using a 9/16" socket and ratchet, making sure to only tighten the clamp nuts just enough to hold the intermediate pipe onto the adapter pipe. Note the position and orientation of the clamp. (See above clamp notes & See Fig. S)

All Versions

9. Locate the dB Performance muffler, and one of the supplied 3" clamps. Slide the expanded end of the muffler inlet pipe onto the intermediate pipe.

IMPORTANT: Make sure that the small drain hole in the muffler is facing straight downwards when the muffler is installed. (See Fig. T)

10. Secure the muffler in place with the supplied clamp as shown, using a 9/16" socket and ratchet, making sure to only tighten the clamp nuts just enough to hold the muffler onto the intermediate pipe. Note the position and orientation of the clamp. (See Fig. U)

NOTE: The unbolted tailpipe hanger assemblies from the removal process should now be installed onto the corresponding hangers on the tailpipe by pushing the rubber grommets onto the hangers. Once again, a soapy water solution will aid in this installation process. (See Fig. V & W)

11. Locate the rear tailpipe assembly, along with the 10mm hardware to secure the hanger mounts, and the last of the supplied 3" clamps.  Slide the expanded end of the tailpipe onto the outlet of the rear muffler. (See Fig. X)

11. Continued: Align the hanger mounts with the mounting holes in the chassis, and secure with a 10mm socket and ratchet, and a long extension. Note the proper orientation of the muffler hanger mounts as shown. Torque the 10mm bolts to factory specs. (See Fig. Y, Z & AA)

12. Rotate the rear tailpipe assembly until the rearmost section of the pipe is horizontal, and then secure it with the supplied clamp as shown, using a 9/16" socket and ratchet, making sure to only tighten the clamp nuts just enough to hold the tailpipe onto the muffler. (See Fig. BB)

13. Locate the dB Performance straight tip assembly, which has a clamp built into it. Slide the clamp end of the tip onto the end of the tailpipe. (See Fig. CC) Rotate the tip until the dB Performance logo is centered on the top side of the tip. (See Fig. DD) Snugly tighten the clamp as shown using a 13mm socket and ratchet, making sure to only tighten the clamp enough to hold the tip in place on the tailpipe. (See Fig. EE)

14. Visually inspect the exhaust system position, tip alignment, clamp orientation and position, and exhaust pipe clearance. Make any necessary adjustments at the slip joints.

15. Fully tighten the 13mm bolts on the factory double bolt clamp. Torque to the factory specs. For 2004 models, tighten the clamp on the factory center pipe to 45 ft-lbs. For 2005-08 models, tighten the nuts on the 2.5" supplied clamp on the end of the adapter pipe to 35 ft-lbs.

16. Start at the front of the vehicle, and tighten the nuts on the two supplied clamps on each side of the muffler. Torque the nuts on the clamps to 35 ft-lbs. Tip clamp: 16-20 ft-lbs.

17. It is STRONGLY SUGGESTED that all clamps be checked and re-tightened (if necessary) to the recommended torque after initial road testing of the vehicle, as thermal cycling has occurred on the system. Please wait until system has fully cooled to conduct this process.
