Find Engine Components for your Sierra 2500

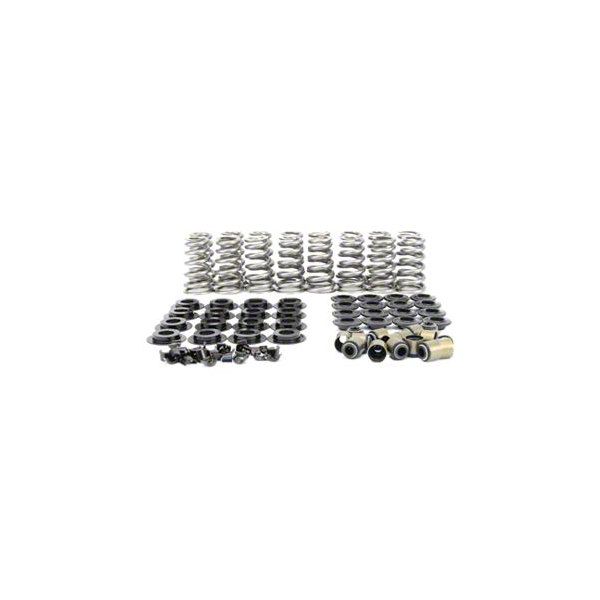

Comp Cams Conical Valve Springs with Tool Steel Retainers; 0.615-Inch Max Lift (10-19 6.0L Sierra 2500 HD)Find parts that fit my vehicle

Item HG28883
Product Image
106 Reviews of Comp Cams
Our Price

$714.95

Military, Medical & First Responders $35.75 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Complete Kit Allows Installation Of Revolutionary Conical Valve Springs On Nearly Any GM LS Engine
        • _x000D_
      • LS Conical Valve Spring Kits Allow Enthusiasts And Builders To Better Harness The Power Of Popular LS Race And Street Engine Applications
        • _x000D_
      • Warranty 12 Months
        • _x000D_
      • Emissions Code N/A
        • _x000D_
      • Retainer Material Tool Steel
        • _x000D_
      • Max Lift 0.615 Inches
        • _x000D_
      • Installed Height 1.8 Inches
        • _x000D_
      • Coil Bind Height 1.125 Inches
        • _x000D_
      • Outer Diameter 1.030 / 1.286 Inches
        • _x000D_
      • Inner Diameter 0.622 / 0.918 Inches
        • _x000D_
      • Valve Locks Part # 623-16
        • _x000D_
      • Valve Lock Type 7° Steel
        • _x000D_
      • Spring Style Conical
        • _x000D_
      • Spring Seats Type I.D. Locator
        • _x000D_
      • Spring Seats Part # 4680-16
        • _x000D_
      • Spring Rate 440 lb/in
        • _x000D_
      • Valve Seals Part # 511-16
        • _x000D_
      • Valve Seals Type Steel Jacketed Viton
        • _x000D_
      • Spring Part # 7228-16
        • _x000D_
      • Seat Pressure 136 lb
        • _x000D_
      • Make GM
        • _x000D_
      • Engine LS
        • _x000D_
      • Fits 2010-2019 6.0L Sierra 2500 HD
        • _x000D_

      Description

      Innovative Valve Spring Solution. The Comp Cams Conical Valve Springs with Tool Steel Retainers and 0.615-inch max lift offer a revolutionary valve spring kit designed to improve the performance of GM LS race and street engines. This complete kit facilitates the installation of high-performance conical valve springs that help enthusiasts and builders harness greater power from their engines.

      _x000D__x000D_

      Construction and Appearance. These valve springs are made with precision-engineered tool steel retainers that provide superior durability and strength. The springs themselves are conical style, designed for efficient operation and enhanced engine response, featuring steel-jacketed Viton valve seals for reliable sealing and longevity.

      _x000D__x000D_

      Installation. Installation is straightforward and suitable for experienced mechanics; no additional drilling or modifications are required, as the kit is designed to fit directly onto compatible GM LS engines. This allows for a smooth upgrade process without complex modification.

      _x000D__x000D_

      Warranty. The product comes with a 12-month warranty, ensuring coverage against manufacturing defects and providing added peace of mind to the customer. Application. This kit fits the 2010-2019 6.0L Sierra 2500 HD, offering an optimal upgrade for this specific vehicle configuration.

      Comp Cams 7228TS-KIT

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.7

      Reviews of Comp Cams Engine Products (106)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 2500

      • 6.0L V8 - 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
