Barricade 9,500 lb. Winch (Universal; Some Adaptation May Be Required)

Item S102660
Our Price

$399.99 kit

Coupon
Apply 10% Discount
One coupon per order | Details
Military, Medical & First Responders $40.00 Available in AT Cash Rewards.
Confirm Eligibility

Save with Open Box

From $239.99

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • 9,500 Lb., (4310 Kgs.), Single-Line Pulling Capacity
      • 5.5 HP, 12 Volt, Series Wound Motor
      • 3 Stage Planetary Gear with a 195.4:1 Ratio
      • 94 Feet of 21/64-Inch Steel Winch Rope with Replaceable Hook
      • Line Speed Under Full Load is 6.4 Feet Per Minute
      • Weighs 58 lbs. and is 21.1 Inches by 6.3 Inches by 8.6 Inches
      • Black Powder Coat Finish
      • Heavy-Duty Rubberized Remote Control with a 12-Foot Lead
      • Roller Fairlead
      • Fits All 1999-2026 Silverados

      Description

      Strong Pull. Recover your Silverado from the deepest mud or big rock jam with the power of the Barricade 9,500 lb. Winch. The 5.5 HP, 12-volt motor has a gear ratio of 195.4:1 that will give your pickup the extra pulling power to easily get out when you're stuck. If you are seeking a reasonably priced winch that doesn't build tension under load, this lightweight winch will do the job.

      Winch and Line Specs. This Barricade Off-Road winch comes with everything needed to get started, straight out of the box. The 94 feet of 21/64 of an inch steel winch cable is made to last you years and resist the elements you put it through. Matched with the two-way automatic, in-the-drum braking system you know you can always rely on this winch to hold your rig.

      Accessories. This winch comes with a 21/64 inch steel winch cable, hook, remote control on a 12 foot lead, and a 4-way aluminum roller fairlead.

      Simple, Bolt-On Installation. Barricade engineered their Winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With this simple bolt-on kit all required hardware is included and no drilling is required for this application.

      Application. This Barricade 9,500 lb. Winch requires a battery with a minimum of 650 cold cranking amps to operate properly. Installs on all 1999-2026 Chevy Silverado models.

      Line Pull Speeds
      • 0 lbs. - 35.4 ft./min
      • 2000 lbs. - 14.8 ft./min
      • 4000 lbs. - 11.2 ft./min
      • 6000 lbs. - 9.5 ft./min
      • 8000 lbs. - 7.87 ft./min
      • 9500 lbs. - 6.43 ft./min

      • Replacement Hardware – SKU U2395H

      Barricade Off-Road

      Shop All Truck Parts And Accessories

      Shop All Truck Winches

      Barricade S102660

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Install Details & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

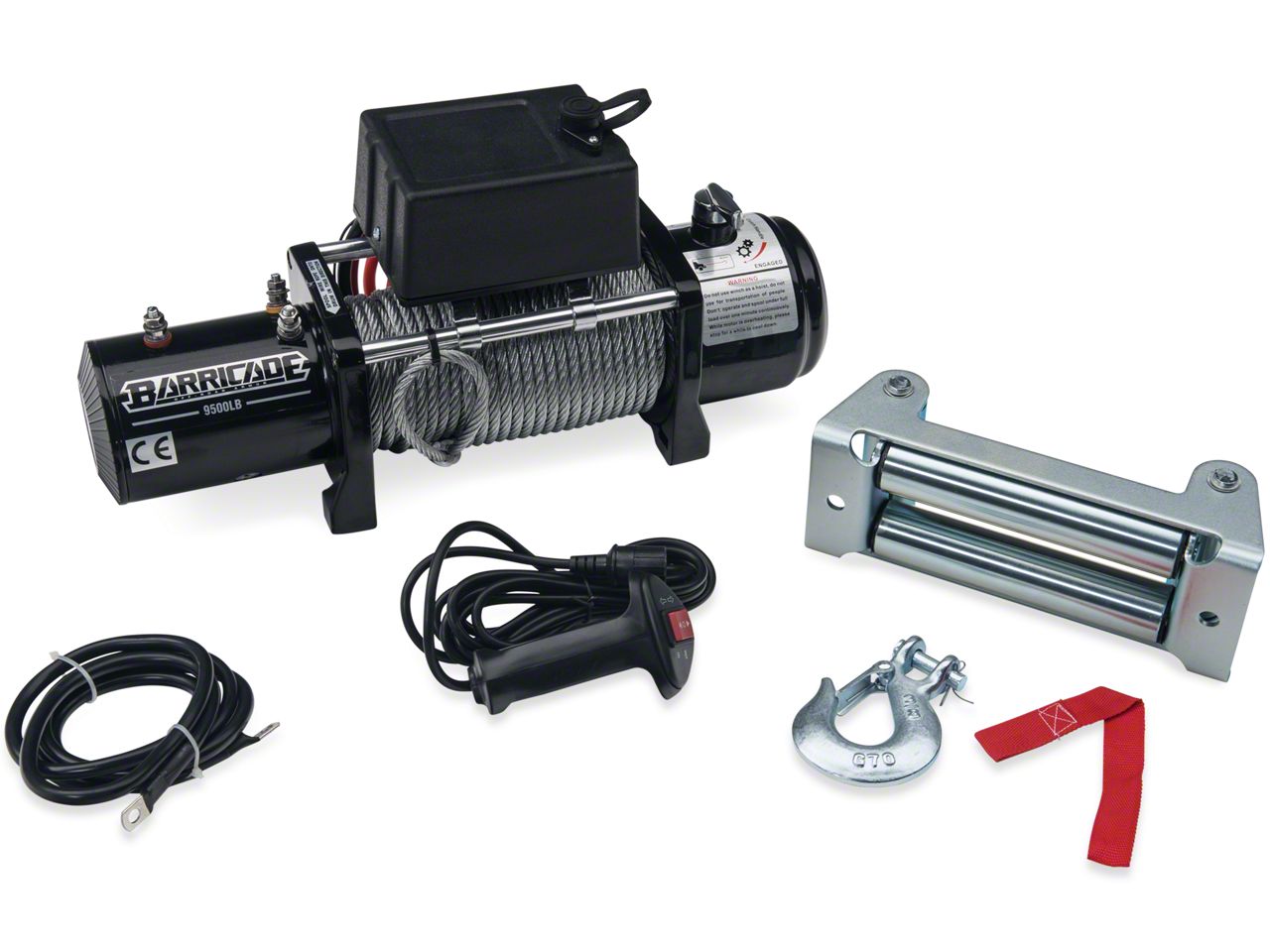

      What's in the Box

      • 9500 lb. Winch and Cable
      • Roller Fairlead
      • Remote Control Lead
      • Solenoid
      • Wiring Harness
      • Cable Hook
      • Red Line Flag
      • Hardware

      Warranty

      Barricade offers our valued customers the following Limited Warranty on all Barricade product purchased after September 1st, 2026.

      What is Covered

      Subject to the terms, exclusions and limitations herein, and with respect only to products first sold in the United States, Barricade warrants that its products shall be free of manufacturing defects for five (5) years and finish defects, including rust & corrosion, for three (3) years from the date of initial retail purchase when the Barricade product is installed and used on purchaser’s vehicle according to supplied product installation instructions and/or warnings. This Limited Warranty is made only with respect to the initial purchaser and is not transferrable. Barricade reserves the right to require proof of purchase as a condition of this Limited Warranty and to make future revisions to this product or its Limited Warranty without obligation to provide notice of same to purchaser or to conform existing product to future revisions. Any change to this warranty made after purchase may be applied retroactively at the sole discretion of Barricade.

      What is Not Covered

      Your Barricade Limited Warranty does not cover damage or claims to any component, vehicle, or person other than the Barricade product purchased. Your Limited Warranty is expressly limited to replacement of the item itself shall Barricade determine item was not free of defect. As such, this Limited Warranty does not cover damage or claims to any component, vehicle, or person Barricade determines to have been damaged by or subjected to:

      • Installation damage, collision damage, alteration, modification, misuse or failure to maintain.
      • Damage in any part attributable to:
        1. vehicle systems or components or
        2. combination with non- Barricade products.
      • Normal wear and tear/product deterioration.
      • Theft, vandalism or other negligent or intentional damage.

      Remedy Limited to Repair/Replacement:

      The exclusive remedy provided for products covered under this Limited Warranty shall be, upon Barricade’s inspection and at Barricade’s option, either repair or replacement of product or parts (new or refurbished). Any parts repaired or replaced will be considered part of the original product and will not extend the term of Limited Warranty. Customers requesting warranty consideration should first contact the independent distributor selling your product to obtain a Returned Goods Authorization number. All removal, shipping, and installation costs are customer’s responsibility. If a replacement part is needed before your part can be returned, you must first purchase the replacement part. Then, if Barricade determines the part warrantable, you will be credited the purchase price of that part.

      This warranty is the only warranty made in connection with the purchase of this product. Barricade neither assumes nor authorizes any manufacturer, vendor, retailer, other person or entity to assume for it any other obligation or liability in connection with its products or this Limited Warranty.

      Other Limitations - Exclusion of Damages - Your Rights Under State Law:

      • In consideration of the purchase price paid, neither Barricade nor any independent distributor are responsible for any loss of use or time, rental costs, or for any incidental, consequential, punitive or other damages (whether arising in tort or contract) you may have or incur in connection with your vehicle, or your Barricade product. Your exclusive remedy hereunder is repair/replacement of the item itself or refund as described above at Barricade’s option. All implied warranties of merchantability and fitness for a particular purpose are hereby disclaimed or limited to the extent allowed under your jurisdiction.
