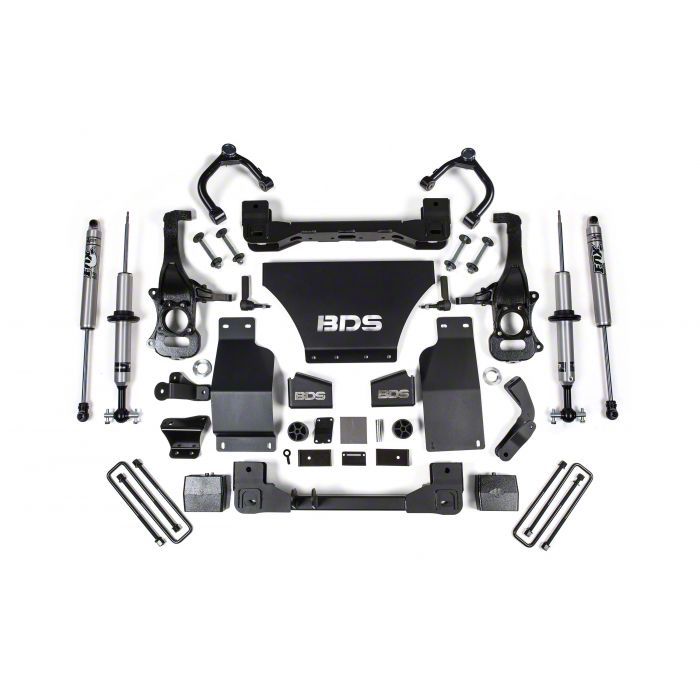

BDS 6-Inch Snap Ring Coil-Over Suspension Lift Kit with FOX 2.0 Shocks (19-24 4WD 3.0L Duramax Sierra 1500, Excluding AT4 & Denali)

Description. BDS Suspension adds new options for the 6in high clearance systems for the 2019-2020 Chevy/GMC 1500 trucks. These new 6in coilover systems join the current lineup offering improved performance and capability. These kits are based around the tried and true high clearance technology that has made BDS the go to for GM suspension lifts, these systems have been designed from the ground up to get the more out of your truck with the most ground clearance on the market. This new 6in lift system is the first of many new BDS options to come available for the new trucks bringing you on road comfort, off-road capability and clearance for 35-37in tires. While some companies build "kits" to fit larger tires, BDS Suspension prides itself in engineering complete suspension systems designed to take your vehicle's performance to the next level while retaining OE-level functionality. Case in point the (NHTSA) National Highway Traffic Safety Administration's FMVSS No.126 compliance standards requiring any aftermarket modification to not adversely effect the vehicle's electronic stability control (ESC) system performance in the event of an evasive maneuver. These new kits have been independently tested and certified compliant with these standards with up to 37in tires [as tested on 37x12.50 Mickey Thompson ATZ P3 tires on 20x9 Black Rhino wheels w/ 5.5in BS]. At the heart of these new systems are a pair of precision tuned FOX 2.0 performance series (non-reservoir) coilover struts designed for use with the factory coil spring and top plate. These non-reservoir FOX coilovers offer improved on road and off-road performance and allow easy setup with 2 snap ring grooves for either 4in or 6in of lift. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0in extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8in hard chrome plated heat treated alloy shaft. Complimenting the coilovers, BDS utilizes a pair of specially designed 1/4in thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the 3-piece heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components. In place of the factory steering knuckles a pair of specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. These connect to the factory steering with a pair of heavy duty replacement tie rod ends included in the kit. The front differential is repositioned with BDS's multipoint relocation bracket system tying into the frame and control arm pockets to further secure the front differential to keep CV axle angles at a minimum. A billet aluminum front driveshaft spacer is also supplied along with longer hardware to allow the reinstallation of the factory driveshaft. A pair of BDS-branded sway bar drop brackets used to correct the operating angle of the factory sway bar as well as created a strong brace between the rear crossmember and the frame. Rounding out the front of this kit are new lower control arm cam bolts to allow alignment and a weld-in frame reinforcement plate for extra strength. In the rear of this 6in lift system, the factory block is replaced with a 5in lift block and longer u-bolts to lift and level the stance. Also included, BDS supplies brake line and ABS line brackets allow the use of factory brake lines. Specially tuned FOX 2.0 IFP performance series gas shocks are supplied to round out the rear of these kits. All kits come finished in a durable textured black powdercoat and sent with all hardware packs to complete the install along with step-by-step installation instructions. Improve the look and capability of your 2019-2021

Fitment:

• 2020 GMC Sierra 1500
• 2021 GMC Sierra 1500
• 2022 GMC Sierra 1500
• 2023 GMC Sierra 1500
• 2024 GMC Sierra 1500
