Find 6 Inch to 8 Inch Lift Kits for your Ram 3500
BDS 6-Inch Suspension Lift Kit with Rear Leaf Springs and NX2 Nitro Shocks (13-18 4WD 6.7L RAM 3500 w/ 8-Bolt Indexing Ring)Find parts that fit my vehicle
Item SHR49114
$0.00
2 Reviews
Our Price
$2,756.35 kit
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- BDS Suspension Lift Kit
- Includes Rear Leaf Springs and NX2 Nitro Shocks
- Lift of 6 Inches
- Matte Black and Glossy Black Finish
- Maximum Tire Size of 37 Inches
- Improved Stance and Performance
- Bolt-On
- Requires Drilling and Welding
- Direct Replacement
- Comes in Kits
- Fits 2013-2018 4WD 6.7L Dodge RAM 3500 with 8-Bolt Indexing Ring Models
| Brand | BDS |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Spacer Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Performance Lift Solution. The BDS Suspension Lift Kit delivers a powerful upgrade for your 2013-2018 4WD 6.7L Dodge RAM 3500 with 8-bolt indexing ring models. Designed to elevate your ride by 6 inches, this kit includes rear leaf springs and NX2 Nitro shocks for enhanced stability and control. Whether conquering off-road trails or cruising the highway, this kit offers improved stance and performance that stands out.
Construction and Appearance. Engineered for strength and longevity, the BDS Suspension Lift Kit showcases components finished in matte black and glossy black, creating a bold, rugged aesthetic. High-quality materials and precision engineering ensure each bracket, spacer, and shock withstands harsh conditions, while the dual finish resists corrosion and wear, maintaining a sleek look over time.
Installation. This kit offers a bolt-on installation with some required drilling and welding, making it a robust addition to your suspension system. Its adaptable design integrates seamlessly with your truck's existing setup. Due to the mechanical work involved, professional installation is recommended for optimal safety and performance.
Application. This BDS Suspension Lift Kit fits 2013-2018 4WD 6.7L Dodge RAM 3500 with 8-bolt indexing ring models. By providing room for up to 37-inch tires, it dramatically enhances the vehicle’s ground clearance and off-road capability. Experience a more commanding presence on and off the road with this lift kit upgrade.
BDS BDS1789H
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

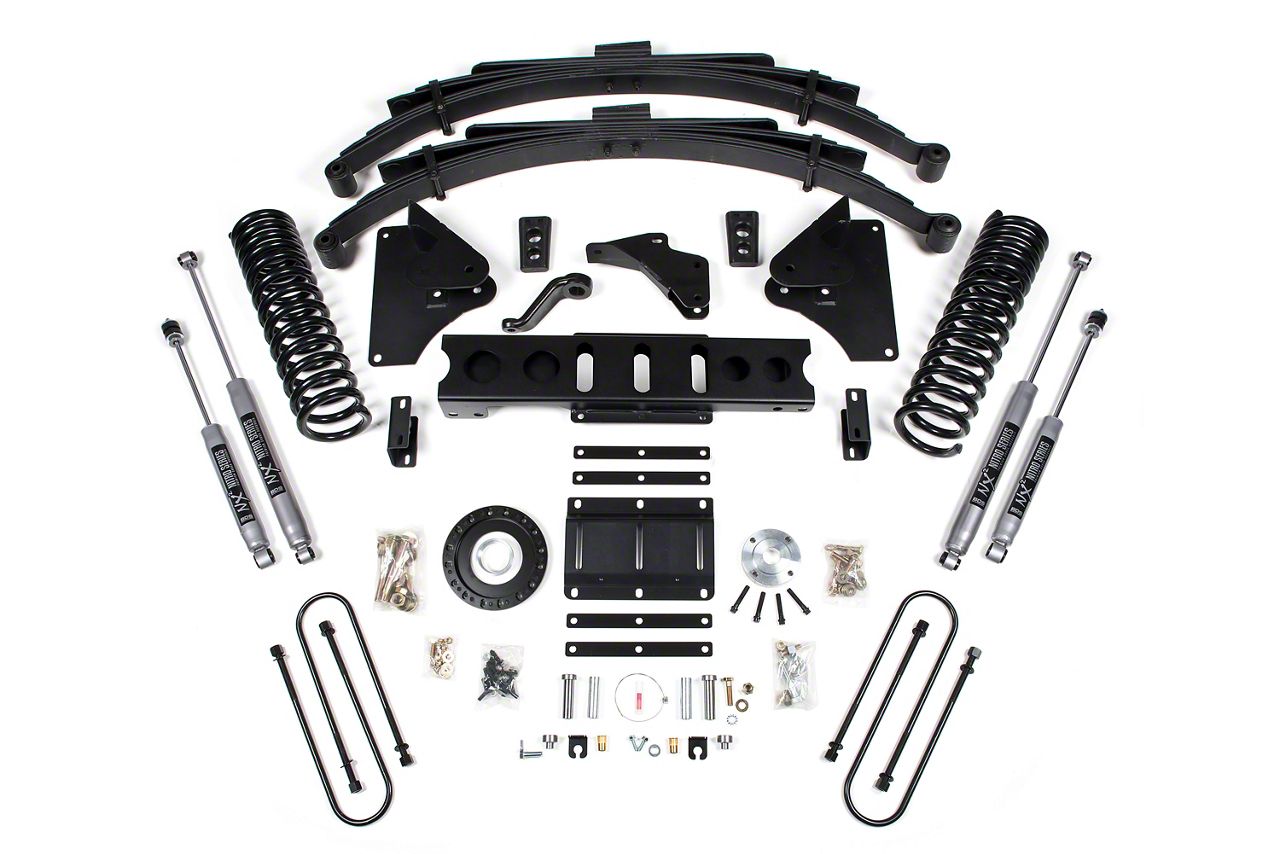

What's in the Box
- (1) Pitman Arm
- (1) Trackbar Bracket
- (1) Fish Wire
- (1) 1/2" Bolt Tab
- (1) 1/4” Spacer Sleeve
- (2) Dodge 4-6" Brakeline Relocation Bracket
- (2) 5/16"-18 X 1" Type 23 Self-Threading Bolt
- (2) Dodge Weld-In Bung
- (2) Dodge Long Machined Spacer Sleeve
- (1) Rad Arm Drop Bracket - Driver
- (1) Rad Arm Drop Bracket - Pass
- (1) Sway Bar Drop Bracket
- (1) Sway Bar Drop Bracket
- (2) 1/2" Rivet Nuts
- (2) Spacer Sleeve
- (2) Cable Tie
- (1) Thread Locker
- (1) Brake Extension
- (2) Bump Stops
- (2) 1/4”-20 3/4” Bolt Grade 5 - Clear Zinc
- (2) 1/4”-20 Nylock Nut - Clear Zinc
- (4) 1/4” USS Washer - Clear Zinc
- (1) 1/2”-13 X 2” Bolt Grade 8
- (1) 1/2” SAE Flat Washer
- (1) 1/2” Star Washer
- (1) 9/16”-18 High Nut
- (1) 1/2"-13 X 1-3/4" Bolt - Grade 8 - Yellow Zinc
- (1) 1/2"-13 Prevailing Torque Nut - Yellow Zinc
- (1) 1/2"-13 Nut (Nonlocking) - Yellow Zinc
- (3) 1/2"-13 USS Washer - Yellow Zinc
- (1) 18mm-2.50 X 80mm Bolt - Class 10.9 Clear Zinc
- (1) 18mm-2.50 Prevailing Torque Nut - Clear Zinc
- (2) 3/4" SAE Washers - Clear Zinc
- (2) 5/8"-11 X 5" Bolt - Grade 8 - Yellow Zinc
- (4) 5/8" USS Washer - Yellow Zinc
- (2) 5/8"-11 Prevailing Torque Nut - Yellow Zinc
- (2) 3/4"-10 X 5-1/2" Bolt - Grade 8 - Yellow Zinc
- (4) 3/4" SAE Thru Hardened Washer - Yellow Zinc
- (2) 3/4"-10 Prevailing Torque Nut - Yellow Zinc
- (4) 1/2"-13 X 1-1/4" Bolt - Grade 8 - Yellow Zinc
- (4) 1/2" USS Washer - Yellow Zinc
- (4) 3/8"-16 X 1-1/4" Bolt Grade 8 Yellow Zinc
- (4) 3/8"-16 Prevailing Torque Nut Yellow Zinc
- (8) 3/8" USS Flat Washer Through-Hardened Yellow Zinc
- (1) 2013 Dodge Transmission X-Member
- (1) 2013 Dodge Transmission Mount
- (4) 2013 Dodge Transmission Spacers (1/4" Thick)
- (2) Push In Zip Tie
- (4) Zip Tie
- (6) 1/2"-13 X 2" Bolt - Grade 5 - Yellow Zinc
- (12) 1/2" SAE Washer - Yellow Zinc
- (6) 1/2"-13 Prevailing Torque Nut - Yellow Zinc
- (1) Indexing Ring Assembly
- (1) Drive Shaft Spacer
- (1) Loctite
- (6) 10mm-1.50 X 30mm FHSCS (Flat Head Socket Cap Screw)
- (6) 3/8"-24 Hex Nut
- (6) 3/8" NAS Spec. Washer
