Find 3 Inch to 5 Inch Lift Kits for your Ram 3500
BDS 4-Inch 4-Link Suspension Lift Kit with Rear Lift Blocks and FOX 2.0 Performance Shocks (19-25 4WD 6.7L RAM 3500 w/ Air Ride & 8-Bolt Indexing Ring)Find parts that fit my vehicle
Item SHR49040
$0.00
2 Reviews
Our Price
$2,998.93 kit
Military & First Responders
Earn $149.95 in AT Cash Rewards. Get Verified
Out of Stock
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- BDS 4-Link Suspension Lift Kit
- Includes Rear Lift Blocks and FOX 2.0 Performance Shocks
- Bolt-On
- Lift of 4 Inches
- Glossy Black, Matte Black, and Metallic Gray Finish
- Maximum Tire Size of 35 Inches
- Improved Stance, Performance, and Capability
- For Use with Stock or Air Ride Systems Only
- Direct Replacement
- Comes in Kits
- Fits 2019-2025 4WD 6.7L Dodge RAM 3500 with Air Ride and 8-Bolt Indexing Ring Models
| Brand | BDS |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Spacer Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Comprehensive Suspension Upgrade. The BDS 4-Link Suspension Lift Kit delivers a high-performance lift solution for serious off-roaders and heavy-duty users. Designed for 2019–2025 4WD 6.7L Dodge RAM 3500 models with air ride and 8-bolt indexing ring, this kit lifts your truck by 4 inches and supports tires up to 35 inches. The included FOX 2.0 Performance Shocks and 4-link control arms improve stance, articulation, and handling across all terrains.
Construction and Appearance. This kit includes components finished in glossy black, matte black, and metallic gray for a rugged, coordinated look. Constructed from high-strength steel and premium materials, the lift components—including upper and lower control arms, brackets, spacers, and more—are built for longevity and structural performance. The FOX 2.0 shocks add advanced dampening capability and are optimized for off-road and highway use.
Installation. This lift system features a bolt-on design and integrates directly with the stock or air ride suspension. The kit includes all necessary brackets, arms, fasteners, and hardware for a comprehensive installation. With adaptable fitment and clearly labeled components, it’s suitable for advanced DIY installs or professional shops looking for dependable, precise suspension enhancement.
Application. This BDS 4-Link Suspension Lift Kit fits 2019-2025 4WD 6.7L Dodge RAM 3500 with Air Ride and 8-Bolt Indexing Ring Models. It enhances your truck’s off-road capability, towing stance, and overall ride quality while providing a clean, aggressive lifted appearance.
BDS BDS1721FS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

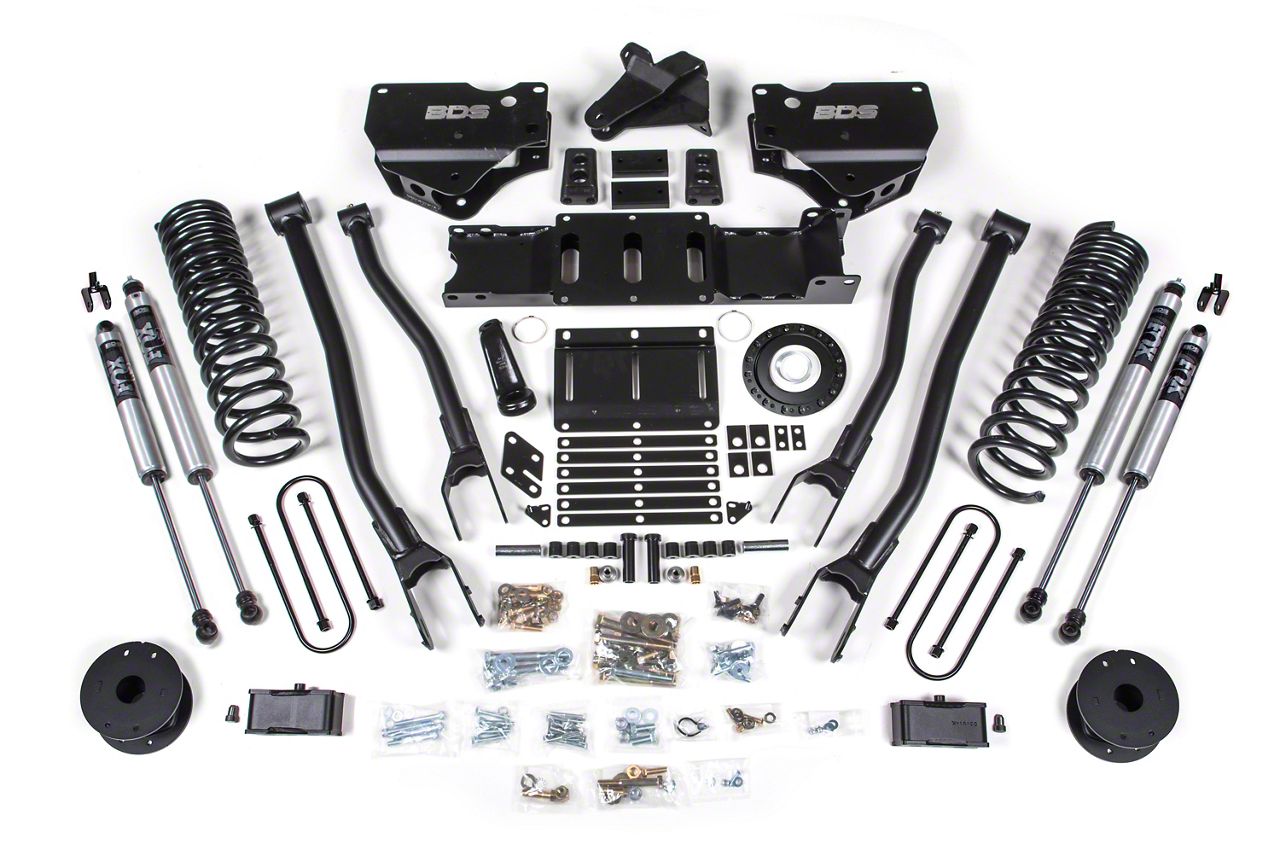

Installation & What's in the Box
Installation Info
What's in the Box
- (2) Dodge 4-Link Conversion - Lower Control Arm
- (2) Dodge 4-Link Conversion - Upper Control Arm
- (4) Bushing (Large - Lower Control Arm)
- (2) 1.00 x .120 x 3.25 Sleeve
- (2) Straight Grease Zerk
- (4) Bushing (Small - Upper Control Arm)
- (2) 0.875 x .156 x 2.62 Sleeve
- (2) 90-Deg Grease Zerk
- (1) 4-Link Bracket - DRV
- (1) 4-Link Bracket - PASS
- (2) Bump Stop
- (1) Front Track Bar Bracket
- (1) Pitman Arm
- (2) Weld in Bung
- (2) Machined 4-link Sleeve
- (1) Brake Line Bracket - Drv
- (1) Brake Line Bracket - Pass
- (2) Sway Bar Drop Bracket
- (2) 3-1/4” Sleeve
- (8) Vibration Dampener (Gas Models Only)
- (4) Cam Plates
- (2) BDS Badges
- (1) CV Boot Large
- (1) CV Boot Small
- (2) 1/2-13 Rivet Nut
- (3) 1/8” SS Rivets
- (2) 18mm-2.50 x 140mm Bolt, Clear Zinc
- (4) 18mm Washer, Clear Zinc
- (2) 5/8"-11 x 4-1/2" Bolt, Grade 5, Clear Zinc
- (4) 5/8" SAE Washer, Clear Zinc
- (1) 5/8”-11 Prevailing Torque Nut, Clear Zinc
- (1) 5/8”-11 Serrated Flange Lock Nut, Clear Zinc
- (2) 3/4”-10 x 5-1/2” Bolt, Clear Zinc
- (4) 3/4” SAE Washer, Clear Zinc
- (2) 3/4”-10 Prevailing Torque Nut, Clear Zinc
- (4) 1/2”-13 x 1-1/4” Bolt , Grade 5, Clear Zinc
- (4) 1/2” USS Washer, Clear Zinc
- (2) 14mm-2.00 x 100mm Bolt, Grade 8.8, Clear Zinc
- (4) 14mm Washer, Clear Zinc
- (2) 14mm-2.00 Prevailing Torque Nut, Clear Zinc
- (8) 8mm-1.25 x 60mm, Clear Zinc
- (8) 5/16” SAE Washer, Clear Zinc
- (2) 1/4” USS Washer, Clear Zinc
- (2) 5/16”-18 Nylock Nut, Clear Zinc
- (2) 14mm-2.00 x 35mm Bolt, Clear Zinc
- (4) 14mm Washer, Clear Zinc
- (2) 14mm-2.00 Prevailing Torque Nut, Clear Zinc
- (4) 10mm-1.50 x 55mm Bolt, Clear Zinc
- (4) 10mm Washer, Clear Zinc
- (1) 1/2”-13 x 2” Bolt, Yellow Zinc
- (1) 1/2” SAE Washer, Yellow Zinc
- (1) 1/2” Star Washer External Tooth, Clear Zinc
- (1) 9/16”-18 Hex High Nut, Yellow Zinc
- (1) 2019 Dodge Transmission X-Member
- (1) 2013 Dodge Transmission Mount
- (6) 2013 Dodge Transmission Spacers (1/4" Thick)
- (4) Zip Tie
- (2) Push-In Zip Tie
- (6) 1/2"-13 x 2" Bolt, Grade 5, Yellow Zinc
- (12) 1/2" SAE Washer, Yellow Zinc
- (6) 1/2"-13 Prevailing Torque Nut, Yellow Zinc
- (1) 5/8”-11 x 8” Bolt, Grade 8, Yellow Zinc
- (2) 5/8” SAE Washer, Yellow Zinc
- (1) 5/8”-11 Prevailing Torque Nut, Yellow Zinc
- (1) Hose Clip
- (1) 6mm-1.00 Prevailing Torque Nut, Clear Zinc
- (1) 1/4” SAE Washer, Clear Zinc
- (1) Indexing Ring Assembly (6-Bolt Only)
- (1) Thread Locker
- (6) 10mm-1.50 x 30mm FHSCS (Flat Head Socket Cap Screw)
- (6) 3/8"-24 Hex Nut
- (6) 3/8" NAS Spec. Washer
- (8) 8mm-1.25 x 60mm, Class 8.8, Clear Zinc
- (8) 5/6” SAE Washer, Clear Zinc
- (8) Air Tank Spacer
- (4) Power Hop Damper Spacer (122626 Only)
- (4) 10mm-1.50 x 50mm Bolt, Class 10.9, Clear Zinc
- (4) 10mm Washer, Clear Zinc
