BDS 4-Inch Suspension Lift Kit with FOX 2.5 Performance Elite Series Coil-Overs and 2.0 Performance Series Shocks (19-24 4WD RAM 1500 w/ Standard OE Knuckles, Excluding TRX)

Find parts that fit my vehicle Item R191675
AmericanMuscle no longer carries the BDS 4-Inch Suspension Lift Kit with FOX 2.5 Performance Elite Series Coil-Overs and 2.0 Performance Series Shocks (19-24 4WD RAM 1500 w/ Standard OE Knuckles, Excluding TRX). Please check out 1994-2001 Dodge Ram 1500 Lift Kits for an updated selection.
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Q&A, Specs & Installation

    Features

    • 4-Inch Front / 3-Inch Rear Lift Kit Featuring FOX 2.5 Performance Elite Coilover Shocks
    • Proprietary FOX 2.5 Coilover Shocks Designed for Bolt-On Performance and Increased Travel
    • Maintains Smooth On-Road Comfort While Absorbing Rough Terrain
    • Improves Stance, Performance, and Capability with Clearance for Up to 35-Inch Tires
    • High-Clearance Design Enhances Ground Clearance, Strength, and Off-Road Protection
    • Includes CNC-Machined Ductile Iron Steering Knuckles and Replacement Tie Rod Ends to Correct Steering Geometry
    • Equipped with FOX Performance Series IFP Gas Rear Shocks for Improved Rear Ride and Damping
    • Comprehensive Front Suspension Components Including High-Arch Steel Crossmembers, Differential Relocation Brackets, and Heavy-Duty Skid Plates
    • Corrects Pinion Angle and Axle Positioning with Rear Upper Control Arm Relocation Brackets and Track Bar Relocation
    • Includes Sway Bar Drops, Bump Stop Extensions, Stainless Steel Braided Brake Lines, CV Spacers, and All Necessary Hardware
    • DSC Adjuster on Shocks Offers 10 Low-Speed and 12 High-Speed Compression Adjustments for Precise Tuning
    • High-Clearance Crossmembers Built from 1/4-Inch Thick Laser-Cut Steel for Strength and Fitment
    • Factory Protection Plus Drivetrain Warranty Included
    • Recommended Tire Size Up to 35 x 12.5 with Proper Wheel Width and Backspacing
    • Fits 2019-2024 4WD RAM 1500 with Standard OE Knuckles, Excluding TRX Model

    Description

    Advanced Suspension Lift Kit. The BDS 4-Inch Front and 3-Inch Rear Suspension Lift Kit with FOX 2.5 Performance Elite Coilover Shocks and FOX 2.0 Performance Series IFP Gas Rear Shocks enhances the off-road capability and stance of your Ram 1500. The kit improves ride quality by absorbing harsh terrain while maintaining smooth on-road handling, providing improved suspension performance and clearance for larger tires.

    Construction and Appearance. This lift kit includes heavy-duty 1/4-inch thick laser-cut steel high-arch crossmembers, differential relocation brackets, and heavy-duty skid plates for added protection and durability. The FOX 2.5-inch diameter coilover shocks feature anodized aluminum reservoirs for enhanced cooling and durability. Steering knuckles are CNC-machined from ductile iron to ensure strength and precise fitment, and the kit includes replacement tie rod ends to restore steering geometry.

    Installation. Installation requires moderate mechanical skills and involves cutting with a reciprocating saw. The process typically takes 8 to 10 hours, with detailed installation instructions provided for guidance.

    Warranty. The kit includes a Factory Protection Plus drivetrain warranty to protect your investment.

    Application. This suspension lift kit fits 2019 to 2024 4WD Ram 1500 models equipped with standard OE knuckles, excluding TRX and diesel-equipped versions. It is not compatible with adjustable air ride suspensions, 2019-2022 Ram 1500 Classic models, or vehicles with the Thermal Axle option.

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

    Installation Info

    Installation Time

    (approx) 5 Hours

    Difficulty Level:

    Light to Moderate mechanical skill required.

    Installation Guides

      No guide available for this part yet.

    What's in the Box

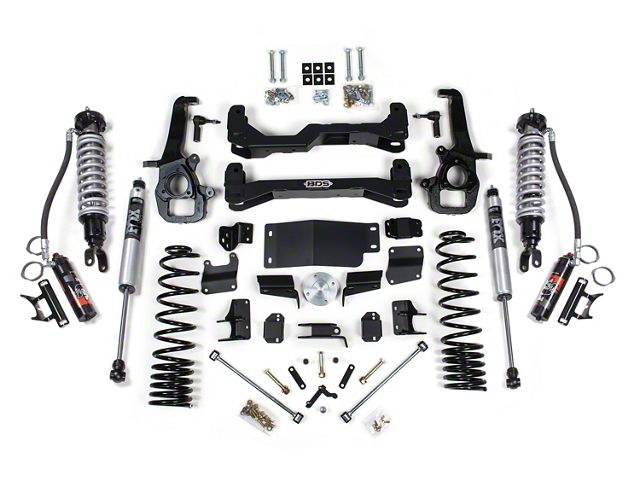

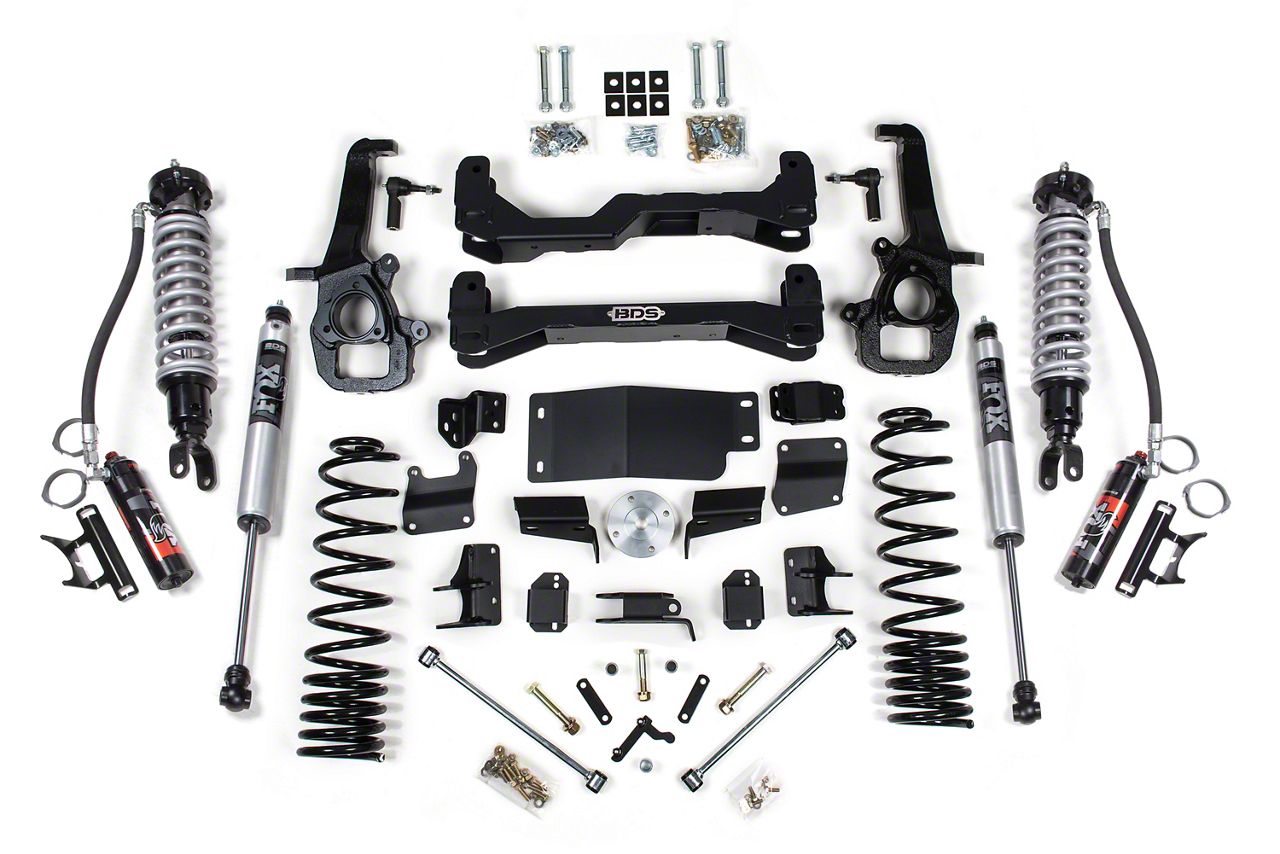

    • (1) Suspension Lift Kit with FOX 2.5 Performance Elite Coil-Overs and FOX 2.0 Performance Shocks
