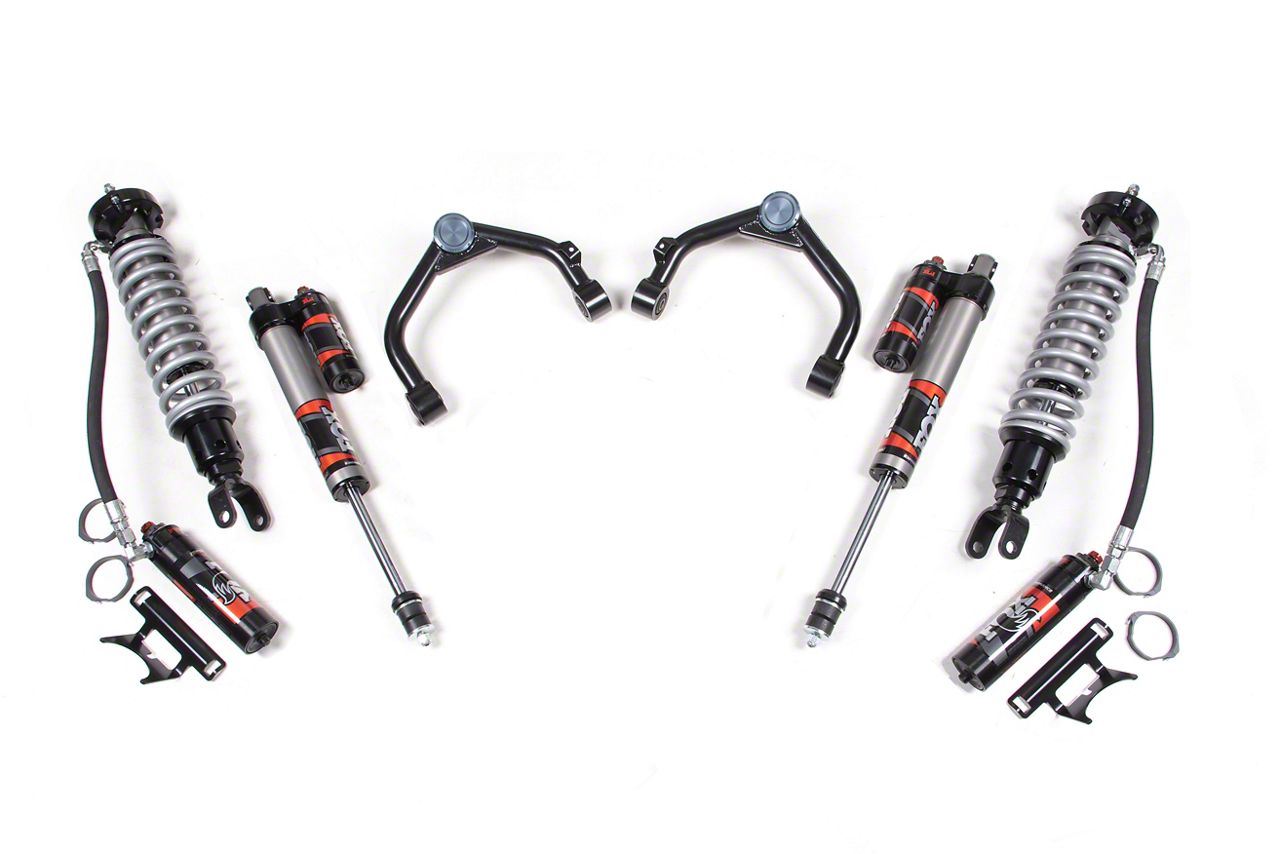

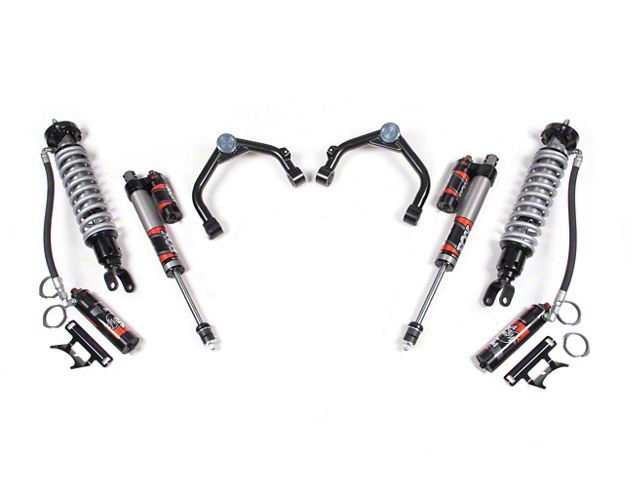

BDS 2-Inch Upper Control Arm Suspension Lift Kit with FOX 2.5 Performance Elite Coil-Overs (19-24 4WD RAM 1500 w/o Air Ride, Excluding TRX)Find parts that fit my vehicle
Item R191676
Our Price
$4,866.85 kit
Military, Medical & First Responders
$243.34 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Designed To Improve Stance, Performance, And Capability, This Kit Includes Everything Necessary To Set Your Truck Up Right With Clearance For Up To 33" Tires
- Up Front The Lift Kit Includes Fox 2.5 Performance Elite Series Remote Reservoir Coil-Over Shocks And Heavy Duty Tubular Upper Control Arms For Increased Strength And Suspension Travel
- In The Rear This Kit May Include Fox 2.5 Performance Elite Shocks For Improved Ride Quality (Check Specific Kit Configuration)
- Fox 2.5 Performance Elite Shocks Offer Enhanced On-Road Comfort And Off-Road Performance
- Tuned And Ready To Install Right Out Of The Box, These Bolt-On 2.5-Inch Diameter Shocks Are Built For Abuse And Packed With Race-Proven Technology
- They Include A Remote Reservoir For Additional Fluid Capacity To Keep Your Shocks Running Cool In Rough Terrain
- The Dsc Adjuster Adds Remarkable Versatility And Precise Tuning With A Simple Twist Of Either Two Adjuster Knobs, Offering 10 Low-Speed And 12 High-Speed Compression Levels
- Performance Upper Control Arms Increase Strength And Allow For Additional Suspension Travel
- Heavy Duty Upper Control Arms Use 1.5" Od X .120-Wall Tubular Construction With An Indexed Ball Joint Cup To Improve Ball Joint Positioning And Allow More Down Travel And Camber Adjustment
- Arms Are Finished In A Durable Black Powder Coat With A Billet Aluminum Dust Cap Ready For Installation Right Out Of The Box
- Dsc - Dual Speed Compression Adjuster Comes Standard
- Fully Serviceable For A Lifetime Of Use
- Factory Protection Plus Drivetrain Warranty Included
- Easy, 100% Bolt On Installation
- Fits 19-24 4Wd Ram 1500 W/O Air Ride, Excluding Trx
| Brand | BDS |
| Lift Height | 2.00 Inch |
| Lift Kit Type | Coilover Lift |
| Lift Kit Max Tire Size | 33 Inch |
| Brand of Shocks | Fox |
| Rear Lift Type | Spacer |
| Shock Style | Non-Reservoir |
Description
Superior Lift Performance. The BDS 2-Inch Upper Control Arm Suspension Lift Kit with FOX 2.5 Performance Elite Coil-Overs provides a 2-inch lift to improve your Ram 1500’s stance, ride quality, and off-road capability while maintaining on-road comfort. It is designed to accommodate up to 33" tires and improve suspension travel for enhanced off-road performance.
Construction and Appearance. The kit features heavy-duty tubular upper control arms constructed from 1.5-inch outer diameter, .120-inch wall steel with an indexed ball joint cup to optimize ball joint positioning, allowing more down travel and camber adjustment. The FOX 2.5 Performance Elite coil-over shocks include a 2.5-inch impact extruded aluminum body and a 7/8-inch hard chrome plated heat-treated alloy steel shaft. All components are finished with a durable black powder coat and anodized aluminum for corrosion resistance and a quality appearance.
Installation. Installation is 100% bolt-on and straightforward with an estimated install time of 3-4 hours. This kit requires no cutting, welding, or drilling, allowing most mechanically skilled enthusiasts to complete installation using common hand tools.
Warranty. The FOX 2.5 Performance Elite shocks included carry a 1-year manufacturer’s warranty for dependable performance and support.
Application. This kit fits 2019-2024 4WD Ram 1500 trucks without factory air ride suspension, excluding the Ram TRX model due to suspension design differences.
BDS BDS1740FPE
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Lift Kit
Tech Guides:
- Lift Kit vs Leveling Kit: Which Upgrade Is Right for Your Truck?
- How Much Lift Does My Truck Need? Picking the Right Lift Height
- Pros and Cons of Lifting Your Truck: What Every Owner Should Know
- Towing Suspension Upgrades: Suspension Components to Improve Towing Capability
- Lift Kits - How Adding Ground Clearance Makes Trucks More Capable Off-Road
- Do Lifted Trucks Use More Fuel? MPG Loss by Lift Height, Tire Size, and How to Save
- What Is Rake? How Leveling Your Truck Improves Appearance
- FAQ What Are The Best Suspension Systems? How Suspension Systems Work
- Off-Road Suspension 101: What To Know Before You Go
- Lift Kits vs. Leveling Kits: What’s the Difference?
- 8 Most Popular Rides to Upgrade Suspensions in 2021
4.6
Reviews of BDS Suspension Products (27)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Ram 1500
- 3.0L V6 EcoDiesel - 20, 21, 22, 23
- 3.6L V6 - 19, 20, 21, 22, 23, 24
- 5.7L V8 - 19, 20, 21, 22, 23, 24
