Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- BDS 4-Link Suspension Lift Kit
- Includes FOX 2.0 Performance Shocks
- Lift of 7 Inches
- Matte Black, Glossy Black, and Metallic Gray Finish
- Maximum Tire Size of 38 Inches
- Corrects the Vehicle Geometry
- Improved Stability and Performance
- Direct Replacement
- Comes in Kits
- Fits 2020-2022 4WD 6.7L Powerstroke Ford F-350 Super Duty Models
| Brand | BDS |
| Lift Height | 7.00 Inch |
| Lift Kit Type | Coil Spring Lift |
| Lift Kit Max Tire Size | 38 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Ultimate Suspension Upgrade. The BDS 4-Link Suspension Lift Kit is engineered to deliver aggressive performance and unmatched ride quality for serious off-roaders and towing enthusiasts. Designed for 2020-2022 4WD 6.7L Powerstroke Ford F-350 Super Duty models, this kit raises your truck by 7 inches and includes FOX 2.0 Performance Shocks for exceptional control. It corrects vehicle geometry and enhances both ride comfort and handling, especially when running larger tires up to 38 inches.
Construction and Appearance. This kit combines rugged performance with sleek styling. Components feature a mix of matte black, glossy black, and metallic gray finishes for a modern and durable aesthetic. Precision-crafted using high-strength steel and premium-grade hardware, it includes reinforced control arms, brackets, and mounting hardware built to endure extreme driving conditions. The FOX 2.0 shocks are constructed with aluminum bodies for lightweight durability and long-lasting fade resistance.
Installation. Designed as a direct replacement, the BDS 4-Link Suspension Lift Kit installs using factory mounting points and includes comprehensive hardware and bracketry for a secure and proper fit. While the installation is complex and best suited for experienced professionals, its adaptable design ensures all components align with OE specifications for optimal performance. The kit also includes all necessary relocation brackets, U-bolts, and bushings for a complete setup.
Application. This BDS 4-Link Suspension Lift Kit fits 2020-2022 4WD 6.7L Powerstroke Ford F-350 Super Duty models. It delivers significant gains in off-road capability, ride height, and handling stability. Ideal for aggressive builds, it transforms your truck into a powerful and capable machine ready for trails, work, and adventure.
BDS BDS1571FS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

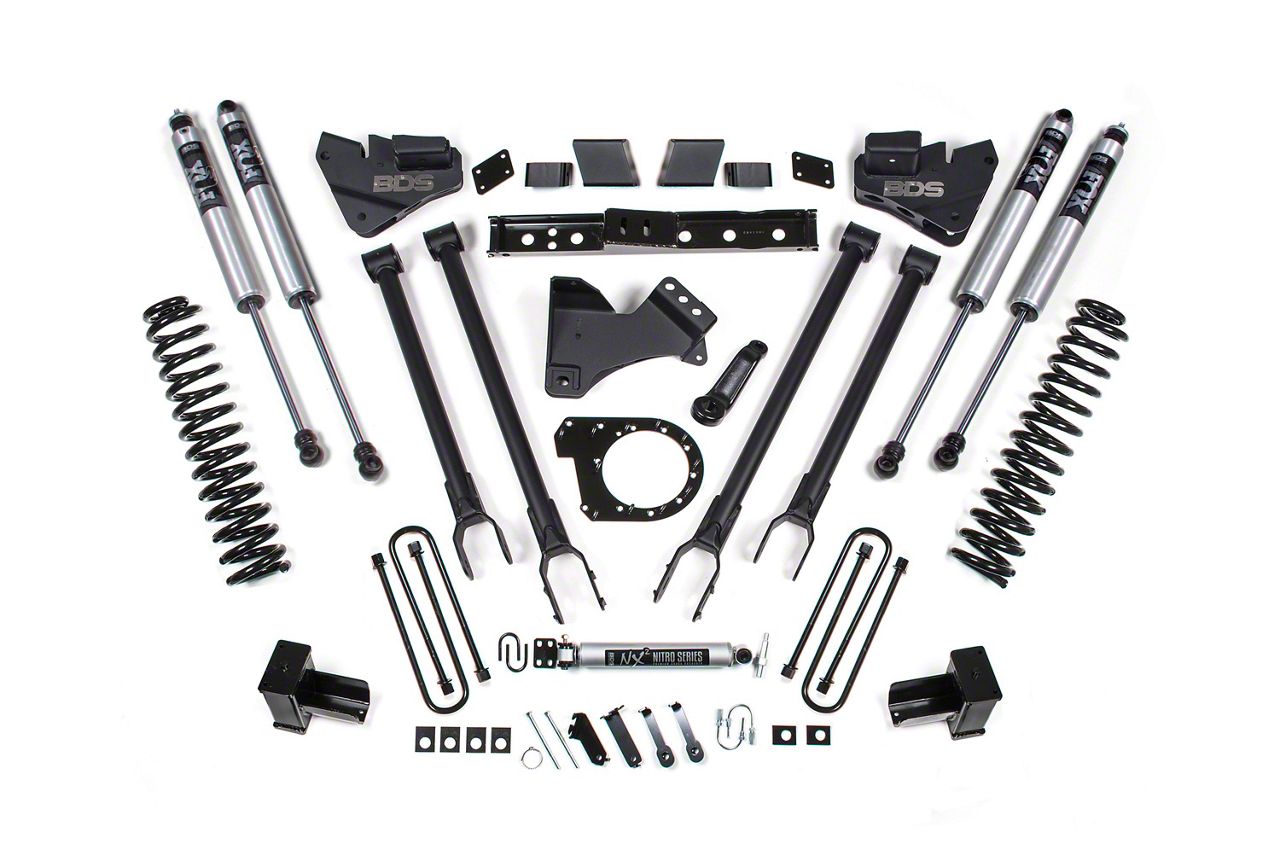

What's in the Box
- (2) Upper 4-Link Arm
- (2) Lower 4-Link Arm
- (2) M18-2.5 Prevailing Torque Nut - Clear Zinc
- (16) 3/4 SAE Thru Hard Flat Washer - Clear Zinc
- (2) M18-2.5 X 150 Bolt - Class 10.9 - Clear Zinc
- (6) 3/4"-10 X 5" Bolt - Grade 8 - Clear Zinc
- (6) 3/4"-10 Prevailing Torque Nut - Clear Zinc
- (1) Bag Kit - Upper Arm
- (2) 90-Degree Grease Fitting
- (7) 2 1.0 X 0.120 X 3.25 DOM Sleeve
- (4) Bushing
- (1) Bag Kit - Lower Arm
- (2) 90-Degree Grease Fitting
- (2) 1.0 X 0.120 X 3.25 DOM Sleeve
- (4) Bushing
- (4) Cam Lock Plate
- (1) Stabilizer
- (2) Bushing - EB1
- (1) Narrow Sleeve
- (1) P Pack - Stabilizer
- (1) Stabilizer Bracket
- (2) 5/16" X 1-1/4" X 2" Round U-Bolt
- (4) 1/4" USS Washer Thru Hardened
- (4) 5/16"-18 Prevailing Torque Nut
- (1) 3/8"-16 X 2-1/2" Bolt Grade 5
- (1) 3/8"-16 Prevailing Torque Nut
- (2) 3/8" SAE Flat Washer
- (4) 5/8 X 3-1/8 X 11 U-Bolt (013438 Only)
- (4) 7/8 Washer
- (1) E-Brake Relocation Bracket
- (1) E-Brake Relocation Clamp Bracket
- (1) Bolt Pack - E-Brake Relocation
- (8) 5/8 Washer
- (8) 5/8 High Nut
- (2) 7/16 X 4 Pin W/Nut
- (1) Pitman Arm
- (2) Front Bump Stop Extension
- (1) Track Bar Bracket
- (1) Sway Bar Drop - Drv.
- (1) Sway Bar Drop - Pass.
- (1) 4-Link Bracket - Drv.
- (1) 4-Link Bracket - Pass.
- (2) BDS Badge
- (2) Rivet Bolt Packs
- (2) Track Bar Cam Washer
- (4) 4-Link Bracket Shim
- (1) Front Brake Line Bracket (Drv. - 4" Box Kit)
- (1) Front Brake Line Bracket (Pass. - 4" Box Kit)
- (1) Front Brake Line Bracket (Drv. - 6" Box Kit)
- (1) Front Brake Line Bracket (Pass. - 6" Box Kit)
- (2) U-Hardline Extension (6" Box Kit)
- (2) 4-Link Bracket Nut Tab
- (2) M8-1.25 X 130mm Bolt
- (2) 5/16" SAE Flat Washer
- (4) Zip Tie
- (1) Drive Shaft Boot Clamp
- (1) 1/8" X 1-1/4" Cotter Pin
- (2) 9/16"-12 X 1-1/2" Bolt - Grade 8 - Clear Zinc
- (2) 9/16" SAE Thru Hard Flat Washer - Clear Zinc
- (4) M12-1.75 X 150mm Bolt - Class 10.9 - Clear Zinc
- (4) M12-1.75 Prevailing Torque Nut - Clear Zinc
- (8) M12 Flat Washer - Clear Zinc
- (1) 1/4" X 0.28" ID Wire Coated Clamp
- (1) 1/4"-20 X 3/4" Bolt - Grade 5
- (1) 1/4"-20 Serrated Edge Flange Nut
- (1) 1/4" SAE Washer
- (4) 3/8"-16 X 1-1/4" Bolt Grade 8
- (4) 3/8"-16 Prevailing Torque Nut
- (8) 3/8" USS Flat Washer Thru-Hardened
- (2) 4.5" Flat Super Duty Block
- (4) 5/8 X 3-1/8 X 16 Semi-Round U-Bolt (013517)
- (1) Bag Kit
- (8) 5/8" Washer
- (8) 5/8" High Nut
- (1) 6.5" Tapered Super Duty Block (Drv)
- (1) 6.5" Tapered Super Duty Block (Pass)
- (4) 5/8 X 3-1/8 X 19 Semi-Round U-Bolt
- (1) E-Brake Relocation
- (1) E-Brake Clamp Bracket
- (4) 7/8 Washer
- (8) 5/8" Washer
- (8) 5/8" High Nut
- (2) Wire Clamp (Fastenal #0708779)
- (1) 1/2"-13 X 1-1/4" Bolt - Grade 5 - Clear Zinc
- (1) 1/2"-13 Prevailing Torque Nut - Clear Zinc
- (2) 1/2" SAE Washer - Clear Zinc
- (2) 5/16"-18 X 1-1/4" Bolt - Grade 5 - Clear Zinc
- (2) 5/16"-18 Prevailing Torque Nut - Clear Zinc
- (4) 1/4" USS Washer - Clear Zinc
- (4) 5/8 X 3-1/8 X 14 Semi-Round U-Bolt
- (2) 7/16" Center Pin
- (1) 6” Transmission Cross Member
- (1) Transfer Case Skid Plate Relocation
- (1) 6” Indexing Ring Assembly
- (1) 6” Indexing Ring
- (11) 3/8" X 1.645" Stud
- (11) 10mm-1.50 X 30mm Flat Head Socket Cap Screw
- (11) 3/8"-24 Hex Nut
- (11) 3/8" SAE Washer
- (2) 3/8"-16 X 1" Bolt
- (2) 3/8" SAE Washer
- (2) 3/8"-16 Serrated Edge Flanged Nut
- (2) 8-3/8 X .18 Cable Tie Tree
- (1) Loctite - 1ml (11094-00764)
- (1) 8” Transmission Cross Member
- (1) Transfer Case Indexing Bracket
- (1) 8” Indexing Ring Assembly
- (1) 8” Indexing Ring
- (11) 3/8" X 1.645" Stud
- (1) Indexing Ring Bag Kit
- (2) Transfer Case Skid Plate Relocation
- (11) 10mm-1.50 X 30mm Flat Head Socket Cap Screw
- (11) 3/8"-24 Hex Nut
- (11) 3/8" SAE Washer
- (2) 3/8"-16 X 1" Bolt
- (2) 3/8" SAE Washer
- (2) 3/8"-16 Serrated Edge Flanged Nut
- (2) 8-3/8 X .18 Cable Tie Tree
- (2) 1/2"-13 Prevailing Torque Nut - Yellow Zinc
- (2) 1/2" SAE Washer - Yellow Zinc
- (2) 3/8"-16 X 1" Bolt - Grade 5 - Clear Zinc
- (2) 3/8" SAE Washer - Clear Zinc
- (2) 3/8"-16 Serrated Edge Flanged Nut - Clear Zinc
- (1) Loctite - 1ml (11094-00764)
