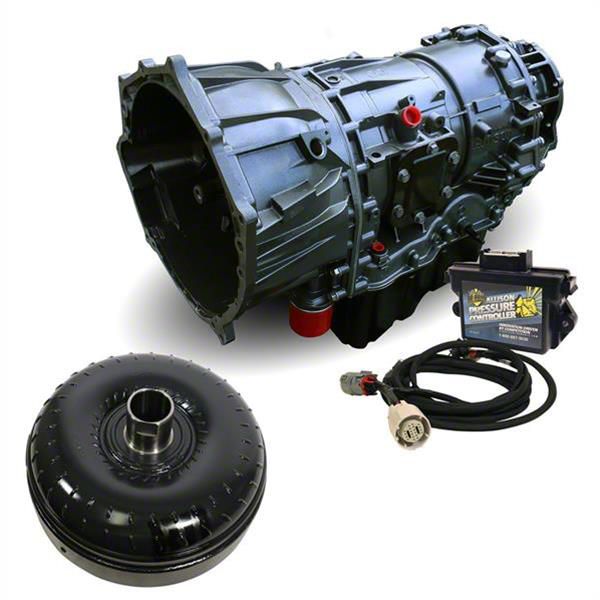

BD Power Allison Transmission and Converter Package with Stage 5 Billet Input Shaft and Proforce 3D Converter; $2100 Core Charge Included (11-16 4WD 6.6L Duramax Sierra 2500 HD)Find parts that fit my vehicle

Item HG25350
Product Image
5 Reviews of BD Power
Our Price

$9,336.95 kit

Military, Medical & First Responders $466.85 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Increase The Durability Of Your Drivetrain
      • BD Aluminum HD Deep Transmission Pan, Increases Oil Capacity By 3.5qt
      • Comes With BD Allison Pressure Box Delivering Up To 275PSI Of Line Pressure
      • High Energy Frictions
      • Increase In Steel Mass For Better Heat Dissipation
      • Increased Clutch Count
      • Clutch Count: C1 8 Clutches (14% Increase Over Stock)
      • Clutch Count: C2 7 Clutches (17% Increase Over Stock)
      • Clutch Count: C3 7 Clutches (75% Increase Over Stock)
      • Clutch Count: C4 7 Clutches (17% Increase Over Stock)
      • Clutch Count: C5 7 Clutches (17% Increase Over Stock)
      • Each Transmission Is Dyno Tested
      • Billet Input Shaft To Take The Snap From Rapid Throttle And High Horsepower
      • Triple Disc Torque Converter With Enhanced Stall For Street And Towing Applications
      • HD Springs Absorb Shock Of Engagement
      • Stamp Forged 1-Piece Cover That Eliminates Warpage From Clutch Heat
      • Taller Cover Allows More Frequent Rebuilds
      • Self-Centering Trapezoid Teeth Design Increases Contact, Reduces Wear And Chatter
      • Thrust Bearings Instead Of Plastic Thrust Washers
      • Riveted Piston Ensures Alignment And Eliminates Vibration Or Embrittlement From Welding
      • Cast Stator Design Maximizes Torque
      • New Sprag Components Ensure Long Term Durability
      • Furnaced Brazed Turbine Fins Improve Fluid Coupling Efficiency
      • Reduced Overall Weight By 12lbs Compared To Competitors
      • Double Cage Stator Sprag For Increased Strength And Reduced Common Stator Failures
      • Fits 11-16 4WD 6.6L Duramax Sierra 2500 HD

      Description

      Durable Transmission And Torque Converter. The BD Power Allison Transmission and Converter Package with Stage 5 Billet Input Shaft and Proforce 3D Converter; $2100 Core Charge Included is engineered to enhance drivetrain durability and performance for demanding diesel applications. It is designed for reliable power handling during rapid throttle responses and heavy towing or street use, providing increased clutch capacity and optimized torque converter efficiency.

      Construction and Appearance. The package features an aluminum heavy-duty deep transmission pan with increased oil capacity and a BD Allison pressure box for enhanced line pressure up to 275 PSI. The transmission incorporates high energy friction materials, increased steel mass for heat dissipation, and a billet input shaft for extra strength. The torque converter uses a triple disc design with HD springs, a stamp forged one-piece cover, and a self-centering trapezoid teeth design to reduce wear and chatter. Durable materials and quality components throughout ensure long-term reliability and performance.

      Installation. The installation process requires approximately 9 hours and involves no special drilling, making it a straightforward replacement for qualified technicians.

      Warranty. This product includes a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty.

      Application. Specifically designed to fit 11-16 4WD 6.6L Duramax Sierra 2500 HD models, ensuring compatibility with this vehicle configuration.

      BD Power 1064754BM

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 4 Hours

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

      What's in the Box

      • (1) Allison Transmission and Converter Package
      • (1) Input Shaft
      • (1) Transmission Pan
      • (1) 3D Converter
      4.7

      Reviews of BD Power Drivetrain Products (5)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 2500

      • 6.6L V8 Duramax - 11, 12, 13, 14, 15, 16
