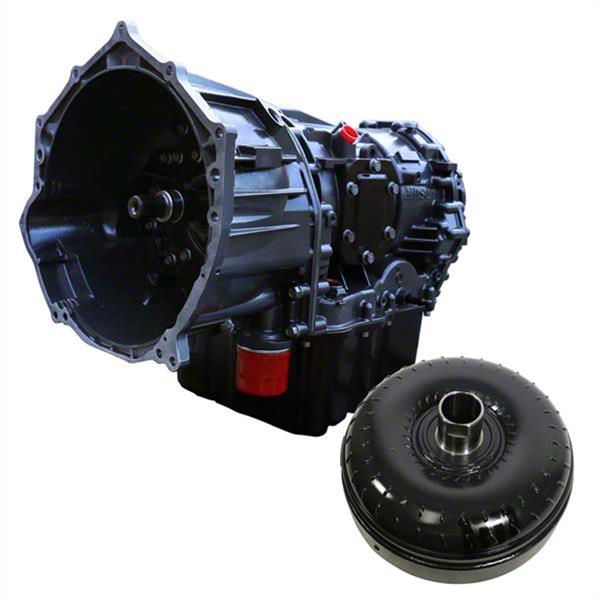

BD Power Allison 1000 Transmission and Converter Package with Stage 5 Billet Input Shaft and Proforce 3D Converter; $2100 Core Charge Included (07-10 4WD 6.6L Duramax Sierra 2500 HD)Find parts that fit my vehicle

Item HG25347
Product Image
6 Reviews of BD Power
Our Price

$9,101.95

Military, Medical & First Responders $455.10 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Increase The Durability Of Your Drivetrain
      • Aluminum Heavy-Duty Deep Transmission Pan Increases Oil Capacity By 3.5 Quarts
      • High Energy Frictions
      • Revised Oil Circuits
      • New Converter Lock-Up Valve Boosts Lock-Up Pressures
      • New A & B Trim Valves Deliver Full Line Pressure To The Clutches
      • Increased Clutch Count For Improved Performance
      • Clutch Count C1: 8 Clutches, 14% Increase Over Stock
      • Clutch Count C2: 7 Clutches, 17% Increase Over Stock
      • Clutch Count C3: 7 Clutches, 75% Increase Over Stock
      • Clutch Count C4: 7 Clutches, 17% Increase Over Stock
      • Clutch Count C5: 7 Clutches, 17% Increase Over Stock
      • Each Transmission Is Dyno Tested
      • Billet Input Shaft Designed To Handle Rapid Throttle And High Horsepower
      • Triple Disc Torque Converter
      • Enhanced Stall For Street And Towing Applications
      • Heavy-Duty Springs Absorb Shock During Engagement
      • Stamp Forged One-Piece Cover Eliminates Warpage From Clutch Heat
      • Taller Cover Allows For More Frequent Rebuilding
      • Trapezoid Teeth Design With Tighter Tolerances
      • Self-Centering Trapezoid Teeth Increase Contact While Reducing Wear And Chatter
      • Thrust Bearings Instead Of Plastic Thrust Washers
      • Riveted Piston Ensures Alignment And Eliminates Vibration Or Embrittlement
      • Cast Stator Designs Maximize Torque
      • New Sprag Components For Long-Term Durability
      • Furnace-Brazed Turbine Fins Improve Fluid Coupling Efficiency
      • Reduced Overall Weight By 12 Pounds Compared To Competitors
      • New Double Cage Stator Sprag Increases Strength And Reduces Common Stator Failures
      • Fits 2007-2010 4WD 6.6L Duramax Sierra 2500 HD

      Description

      Heavy Duty Transmission Package. The BD Power Allison 1000 Transmission and Converter Package with Stage 5 Billet Input Shaft and Proforce 3D Converter includes a matched transmission and torque converter engineered for enhanced durability and performance. It is designed to handle the high power and torque demands of diesel engines, making it suitable for towing, street, or track use.

      Construction and Appearance. This package features an aluminum heavy-duty deep transmission pan that increases oil capacity by 3.5 quarts. The torque converter incorporates a triple disc design and a forged one-piece cover, along with durable components such as a billet input shaft and riveted pistons for alignment and reliability. The finish is functional and optimized for heat dissipation and longevity.

      Installation. Installation typically requires approximately 9 hours and is considered a moderate-to-high difficulty task. No drilling is required. Professional installation is recommended due to the complexity of transmission work.

      Warranty. The transmission package comes with a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty, excluding race abuse.

      Application. This transmission and converter package fits 2007 to 2010 4WD 6.6L Duramax Sierra 2500 HD models and is engineered specifically to meet the requirements of these vehicles without modifications or exclusions.

      BD Power 1064744BM

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      What's in the Box

      • BD Performance Transmission 1064744 2007.5-2010 LMM Duramax U Allison 1000 Installation Instructions.
      • (1) GM tool #J 21366 Converter Holding Strap.
      • (2) GM tool #J 44257 Connector Removal Tool.
      • (1) LOCTITE 242 or equivalent.
      • TES 668 approved transmission fluid.
      4.7

      Reviews of BD Power Drivetrain Products (6)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 2500

      • 6.6L V8 Duramax - 07, 08, 09, 10
