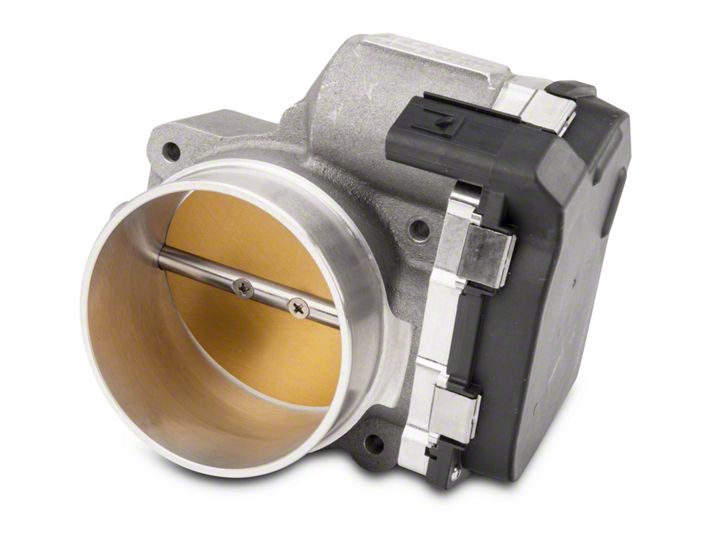

How to Install a BBK 85mm Throttle Body on your Ford F-150

Installation Time

1 hours

American Muscle
Shop Parts in this Guide

Follow these instructions carefully to ensure correct fitment and operation.

STEP 1: Disconnect the Mass Air Flow (MAF) Sensor.


STEP 2: Remove the two vent hoses going into the factory intake system.


STEP 3: Loosen the two 10mm mounting bolts that secure the factory intake system to the vehicle. Also remove the clip on the passenger side of the stock intake system using pliers.


STEP 4: Unclip the three clips at the air box and remove the entire system out of the vehicle.
NOTE!!! The rubber coupler also needs to be removed from the throttle body.


STEP 5: â€‹Disconnect the electrical connector at the throttle body and remove the throttle body from the vehicle.


STEP 6: â€‹Bolt on the BBK Throttle Body and reconnect the connector.


STEP 7: Re-install the Air Intake System. Turn the vehicle on and let idle for a few minutes to make sure there are no problems.
