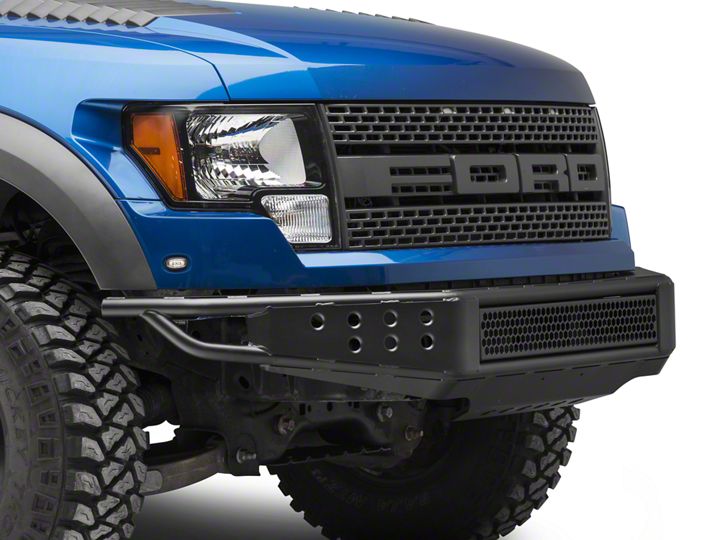

How to Install Barricade Extreme HD Tubular Front Bumper (10-14 Raptor) on your Ford F-150

STEP 1 // Remove the (2) 8mm screws, and (1) 10mm bolt that hold the hood latch plate to the factory bumper lip.

STEP 2 // Next, loosen the upper (4) 21mm nuts holding the front bumper to the support beam of the vehicle. **Note: Factory hardware will be reused.

STEP 3 // Attach the front license plate bracket to the new Barricade bumper if a front license plate is required using the (2) M6 screws, lock washers, and nuts.

STEP 4 // If purchased with the LED lighting option, install the LED light using the hardware provided in the light packaging. If choosing not to use the LED lighting. The bumper will include a bolt on mesh cover. Secure the cover to the bumper using (4) M8 x 20mm bolts, lock washers, and nuts.

STEP 5 // Using the supplied (4) plastic washers attach the factory bolts to the Barricade bumper.

STEP 6 // Slide bumper into place, and secure using the factory hardware.

STEP 7 // Re-attach and secure the (2) 8mm screws, and (1) 10mm bolt that hold the hood latch plate to the factory bumper lip.

STEP 8 // Optional LED light wiring, connect the (1) LED light bar into the supplied harness. Be sure to zip tie the access wiring away from any damage that could occur.

STEP 9 // Optional LED light wiring, Install the Red 12 volt wire to the positive battery terminal. Connect the black ground wire to the negative battery terminal. Mount the fuse in a safe location away from any damage that could occur. Tuck away any extra wiring.

STEP 10 // Optional LED light wiring, Route the on/off switch to the interior of the vehicle using a suitable body grommet. Mount the switch in the desired location. Zip tie any extra loose wiring away from heat and/or moving engine components.
