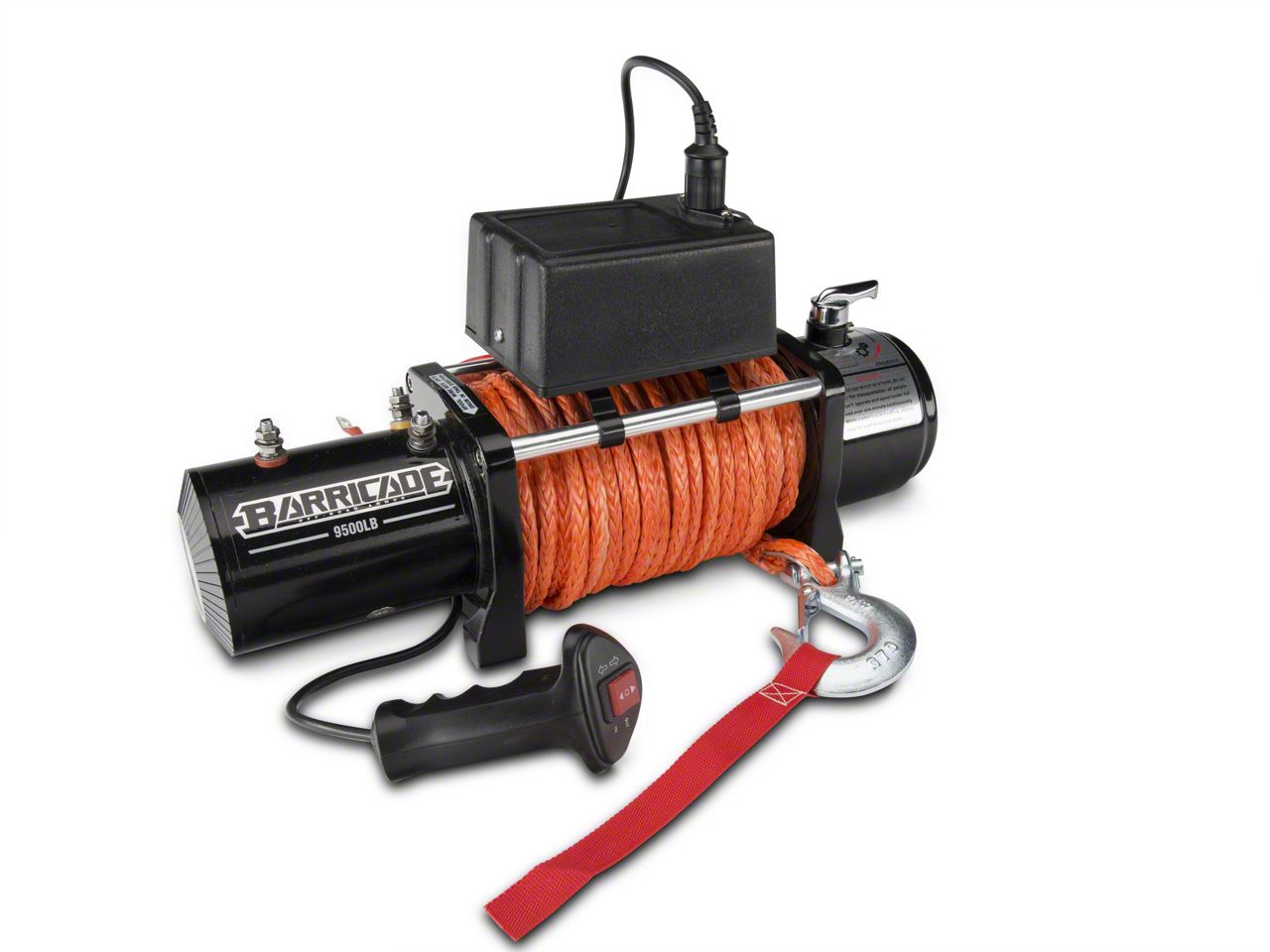

Barricade 9,500 lb. Winch with Wireless Control (Universal; Some Adaptation May Be Required)
Item T527812
$332.99
On Sale
-28% $332.99 kit Was $459.99
Military, Medical & First Responders
$33.30 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 9,500 lb. Line Pulling Capacity
- 94 Foot Steel Cable
- Full Load Line Speed is 6.4 Feet Per Minute
- Black Powdercoat Finish
- Remote Switch with 12 Foot Lead
- Optional Wired Remote Use
- Roller Fairlead
- Fits All 1997-2026 F-150s
Description
Remote Control. Barricade Off-Road takes the essentials of off road recovery to a new level with the 9,500 lb. Winch with Wireless Control. This winch provides additional safety measures by allowing you to stand back away from your F-150 during the recovery process. It comes with a built in solenoid switch to select the wireless control or use of a remote control with a 12 foot lead if the situation calls for it.
Durable Winch. This 9,500 lb. Winch provides reliable pulling power for when you and your F-150 find yourselves stuck. Its 5.5hp, 12-volt motor with a gear ratio of 195.4:1 can recover your rig from the deepest mud or biggest rock jam. The winch case is completed in a durable black powdercoat finish for long lasting protection against corrosion.
Winch & Line Specs. This Barricade Off-Road Winch comes with everything needed to get started, straight out of the box. The 94 feet of 21/64 of an inch steel winch cable is made to last you years and resist the elements you put it through. Matched with the two-way automatic in-the-drum braking system, you will know that you can always rely on this winch to hold your truck.
Accessories. This winch comes with a 21/64 inch steel winch cable, hook, wireless remote control, a remote control on a 12 foot lead, and a 4-way aluminum roller fairlead.
Application. This Barricade Off-Road 9,500 lb. Winch with Wireless Control is designed for use on all 1997 to 2026 F-150s, including the Base, FX2, FX4, Harley Davidson, King Ranch, Lariat, Lightning, Limited, Platinum, SVT Raptor, STX, XL and XLT models.
Technical Note. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 35.4 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.2 ft./min
- 6000 lbs. - 9.5 ft./min
- 8000 lbs. - 7.87 ft./min
- 9500 lbs. - 6.43 ft./min
- Replacement Hardware – SKU U2401H
Technical Note. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Shop All Truck Parts And Accessories
Shop All Truck Winches
Barricade T527812
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Hexagon screw
- (1) Spring washer M5
- (1) Clutch handle
- (1) Nut cap
- (1) Cup gasket
- (1) Spring washer Φ20
- (2) O-ring
- (1) Gear box housing
- (1) Shaft sleeve
- (1) Sun gear
- (1) 3rd Planetary gear assembly
- (1) Dual inner gear
- (1) 2nd Planetary gear assembly
- (1) 1st Planetary gear assembly
- (1) Sealing washer
- (4) Hexagon screw M8x25
- (4) Spring washer Φ8
- (1) Gear box bracket
- (10) Spring washer Φ4
- (10) Hexagon screw M4x20
- (2) Bearing bush
- (2) Sealing washer
- (1) Transmission shaft
- (1) Drum assembly
- (1) Brake assembly
- (2) Tie bar
- (1) Motor assembly
- (4) Cross Recess Head Screw M4.2x12
- (2) Mounting bracket assembly for control box
- (1) Control box assembly
- (1) Fairlead (4-way roller fairlead)
- (1) 3/8” Hook
- (1) Wired remote control
- (1) Battery negative (-) cord 1.8m
- (1) Wireless remote control (Optional)
- (?) Mounting bolts and washers: 3/8" UNC x 1-1/4" stainless steel bolts and spring washers (provided for securing the winch to the mounting plate)
- (1) S0107/08-31 — 0.75mm2 brown switch control wire
- (1) S0107/08-32 — 0.75mm2 red switch control wire
- (1) S0107/08-33 — 0.75mm2 yellow switch control wire
- (1) S0107/08-34 — 0.75mm2 yellow remote control wire
- (1) S0107/08-35 — 0.75mm2 white remote control wire
- (1) S0107/08-36 — 0.75mm2 red remote control battery “+”
- (1) S0107/08-37 — 0.75mm2 black remote control battery “-”
- (1) S0107/08-38 — Green antenna
- (1) S0107/08-39 — 0.4m short black cable with yellow terminal sleeve
- (1) S0107/08-40 — 1.8m long red battery cable “+”
- (1) S0107/08-41 — 0.4m black motor cable with black sleeve
- (1) S0107/08-42 — Black cable with black sleeve (0.75mm x 0.45m; earth)
- (1) S0107/08-43 — 0.4m short red cable with red terminal sleeve
- (1) S0107/08-44 — Receiver for remote
- (1) S0107/08-45 — U type strap (aluminum)
- (1) S0107/08-46A / S0107/08-46B — Solenoid 12V (A) or Solenoid 24V (B) (appropriate version)
Tech Specs
- Dimensions: 21.1 in. x 6.3 in. x 8.6 in.
- Line Pulling Capacity: 9,500 lb.
- Line Speed: 6.4 Feet per Minute under Full Load
- Motor: 5.5 hp, 12 Volt, Series Wound Motor
- Mounting Footprint: 10 in. x 4.5 in.
- Gear: 3 Stage Planetary Gear with a 195.4:1 Ratio
- Winch Cable Length: 94 feet of 21/64 inch Steel
- Weighs: 58 lbs.
