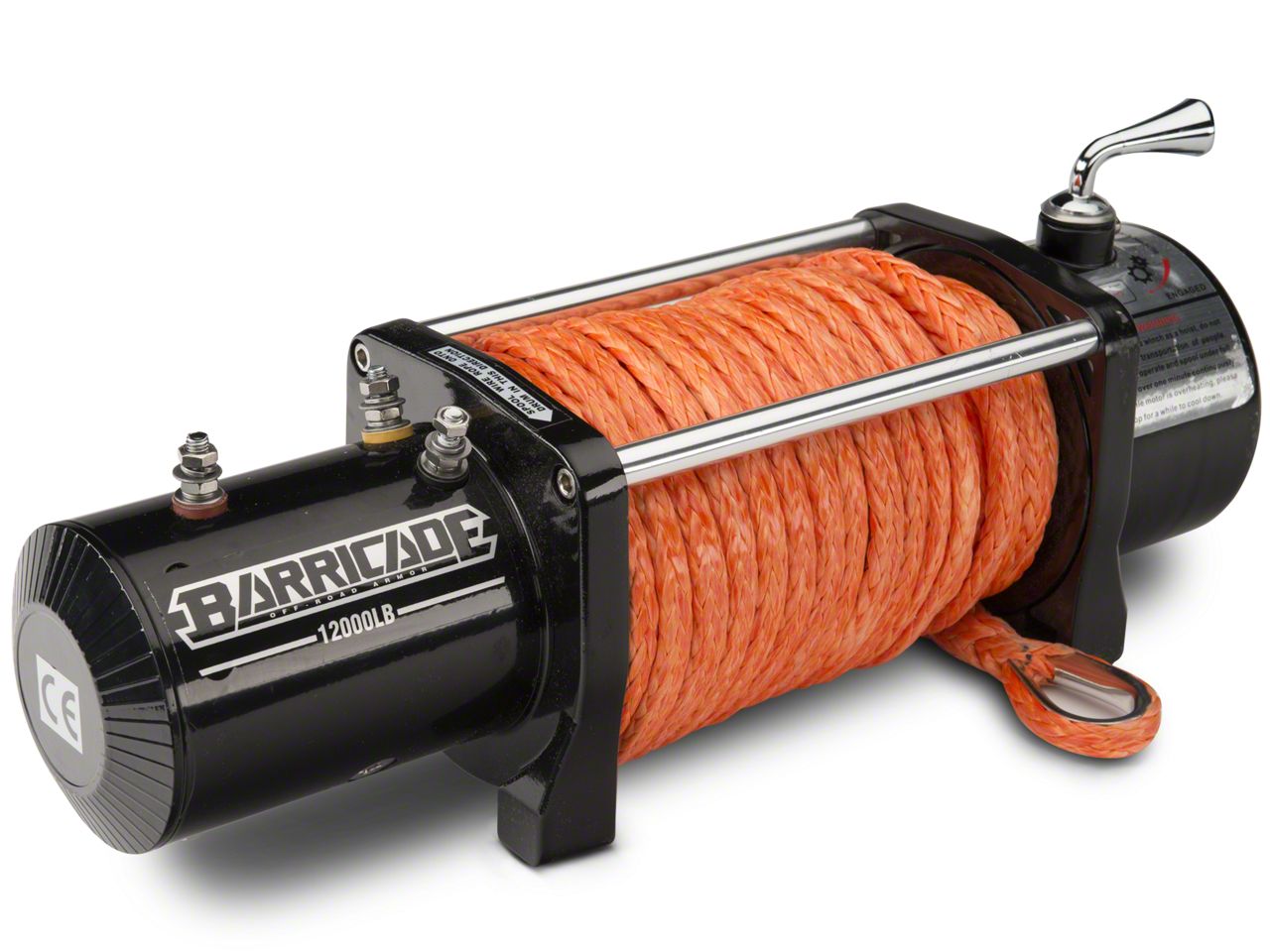

Barricade 12,000 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

Item S103109
Verify parts fit and get product recommendations.
Silverado 1500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$692.98

FREE Shipping Market Price $768.99 You Save 10% ($76.01) Up to 10% off for Military & First Responders! See Details

In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • 12,000lb Single-Line Pull Rating
      • 6.6 HP 12-Volt Series Wound Electric Motor
      • 3 Stage Planetary Gear with 187.2:1 Gear Ratio
      • 94ft Bright Orange Synthetic Rope Included
      • Wired Remote Switch with 12 Foot Lead
      • Durable Black Powder Coat Finish
      • Hook, Hawse Fairlead and Cover are Included
      • Overall Dimensions 21.1" x 6.3" x 8.6"
      • Mounting Bolt Pattern 254mm X 114.3mm
      • Weight: 44 lbs
      • Fits All 1999-2024 Chevrolet Silverado Models

      Description

      Reliable Recovery. Take a page out of the Scouts hand book and "be prepared" for whatever the trail might throw at you with a Barricade 12,000 lb. Winch. Whether your Silverado is a work truck or designated for off-road fun, Barricade's 12,000 lb. Winch with Synthetic Rope will provide the reliable pulling power you need for those times you find yourself stuck.

      Heavy Duty 12000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch will provide 12,000lbs of pulling power. Matched with a sliding ring gear clutch and the two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

      Additional Features. This Barricade Off-Road 12,000lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.

      Simple, Bolt-on Installation. Barricade engineered their Winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm x114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

      Application. This Barricade Off-Road 12,000lb Winch is designed for use on all 1999-2024 Chevrolet Silverado models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

      Line Pull Speeds
      • 0 lbs. - 33.3 ft./min
      • 4000 lbs. - 16.8 ft./min
      • 6000 lbs. - 12.8 ft./min
      • 8000 lbs. - 10.1 ft./min
      • 10000 lbs. - 8.8 ft./min
      • 12000 lbs. - 7.6 ft./min
      Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather this winch requires a cover when not in use. Barricade provides a winch cover for your convenience.

      Barricade Off-Road

      Shop All Truck Parts And Accessories

      Shop All Truck Winches

      Barricade J100790

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • 12000lb Winch
      • Synthetic Rope
      • Hawse Fairlead
      • Remote Control Lead
      • Solenoid
      • Wiring Harness
      • Rope Hook
      • Red Line Flag
      • Hardware
      • Winch Cover

      Tech Specs

      ManufacturerBarricade Off-RoadLine Capacity12,000lb
      Motor Specs6.6 hp, 12-volt series woundLine Type94ft Synthetic
      Gear System187.2:1, Planetary
