Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
FREE 1 to 3-Day Delivery on Orders $149+ Details

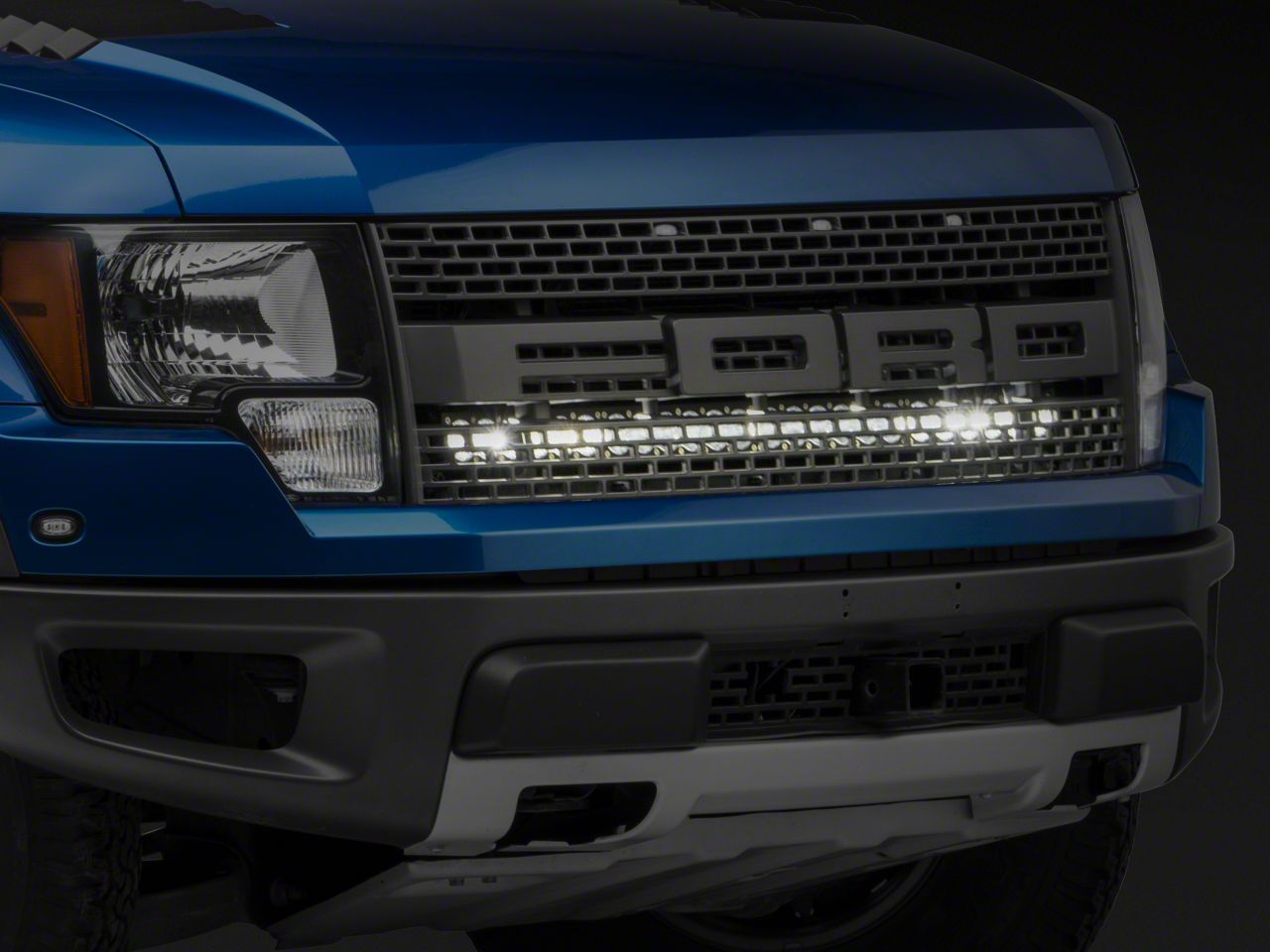

Baja Designs 40-Inch OnX6 LED Light Bar with Upper Grille Mounting Brackets (10-14 F-150 Raptor)Find parts that fit my vehicle
Item T530567
Our Price
$1,725.85 kit
Military, Medical & First Responders
$86.29 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Depth 4.29 Inches
- Height 2.69 Inches
- Length 40 Inches
- Weight 15.05 Pounds
- Amperage Rating 26.8 Amps High 22.4 Amps Low
- Average Rated Life 49,930 Hours
- Beam Pattern Driving Combo
- Bezel Material Billet Machined Aluminum
- Brightness 38,900 Lumens High 32,440 Lumens Low
- Description Straight Driving Combo Clear
- Housing Color Black
- Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize
- Lens Color Clear
- Lens Material Hardcoated Polycarbonate
- Light Quantity 1
- Lighting Modes High Beam Low Beam
- Lighting Quantity 24
- Lighting Technology LED
- Lighting Type Forward Projecting
- Mounting Hardware Description Mounting Brackets
- Mounting Hardware Included Yes
- Mounting Hardware Material Stainless Steel
- Overvoltage Protection Built-In
- Product Type OnX6+ 40 Inch LED Light Bar
- Universal Or Specific Universal
- Wattage 346 Watts High 290 Watts Low
- Wiring Harness Description Hi-Low Dongle
- Wiring Harness Included No
- Standards Compliance Exceeds MIL-STD810G
- Impact Resistance IK10 Compliant
- Water Resistance IP69K Waterproof Up To 9ft Pressure Washable
- Fits 10-14 F-150 Raptor
| Brand | Baja Designs |
| Light Bar Width | 40 to 49 Inch |
Description
High-Performance LED Light Bar. The Baja Designs OnX6 Series 40in LED Light provides intense illumination designed specifically for demanding off-road and racing applications. It enhances nighttime visibility by combining a focused driving beam with a broad combo pattern, making it ideal for high-speed driving and rugged conditions.
Construction and Appearance. This light bar is built from aircraft-grade aluminum with a Mil-Spec hard anodized finish, ensuring exceptional durability and corrosion resistance. It features a clear hardcoated polycarbonate lens protected by a billet machined aluminum bezel, all finished in sleek black for a rugged and professional look.
Installation. Installation of this light bar requires moderate skill and includes stainless steel mounting brackets. Minor modifications may be necessary, but no extensive drilling is typically required, allowing for a secure and clean fit behind the grille.
Warranty. It comes with a limited lifetime warranty to guarantee product quality and customer peace of mind.
Application. Specifically designed to fit Ford F-150 SVT Raptor models from 2010 to 2014, ensuring an exact match for this vehicle generation.
Shop All Truck Parts And Accessories
Shop All Truck Light Bars
Shop All Truck Lights And Cargo Lights
Baja Designs 457513
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) 40" OnX6 LED Light Bar
- (1) Ford Upfitter Wiring Harness
- (1) OEM, Raptor BTG Bracket Set
- Mounting Hardware
4.7
Reviews of Baja Designs Lights Products (164)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-150
- 5.4L V8 Raptor - 10
- 6.2L V8 Raptor - 10, 11, 12, 13, 14
