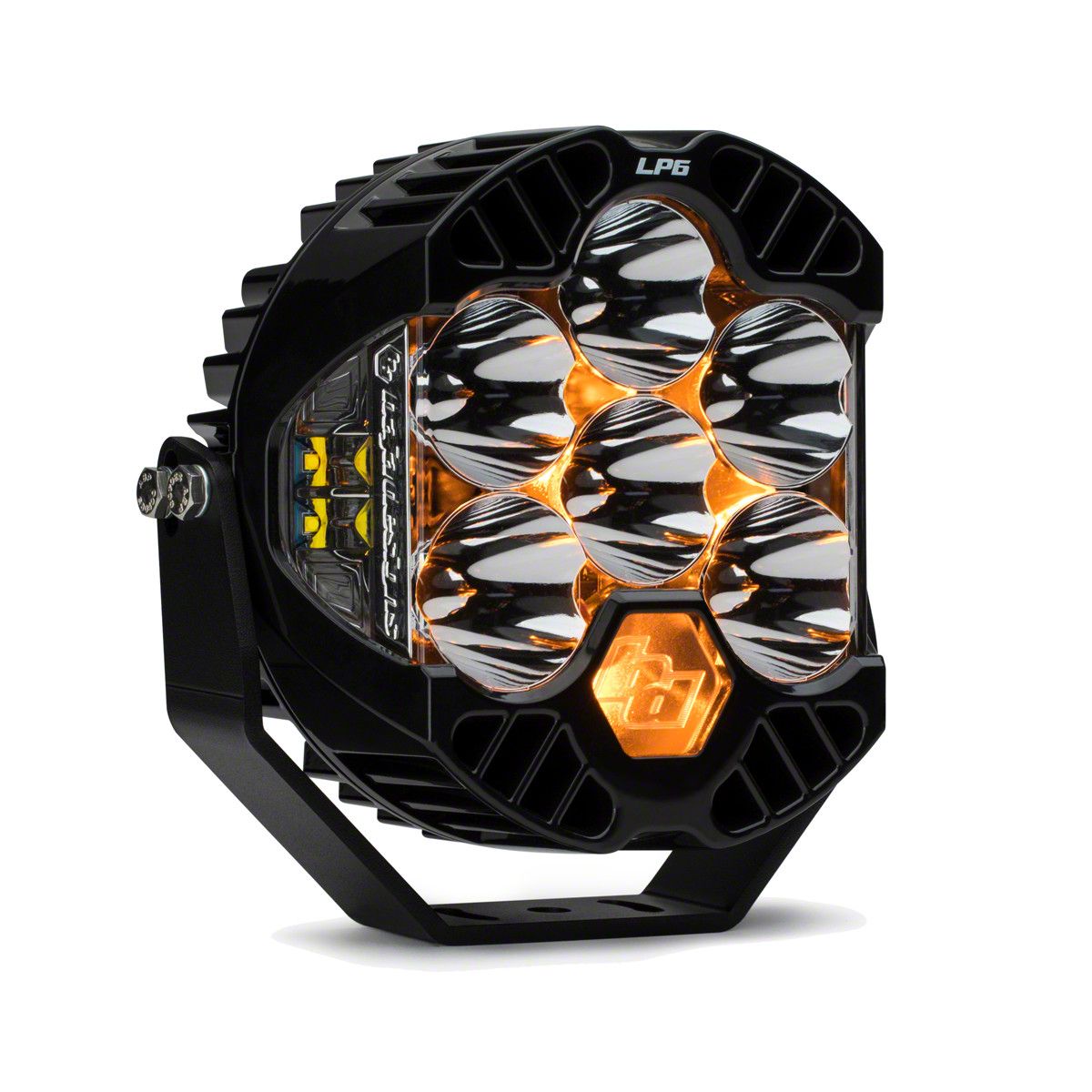

Baja Designs LP6 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)

Item S171430
Our Price

$534.95 each

Military, Medical & First Responders $26.75 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Lens Color Amber
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Quantity 1
      • _x000D_
      • Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
      • _x000D_
      • Lighting Quantity 6
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP6 Pro LED Light Pod
      • _x000D_
      • Secondary Amperage Rating 1.000 A
      • _x000D_
      • Secondary Brightness 1972 Lumens
      • _x000D_
      • Secondary Light Quantity 4 LEDs
      • _x000D_
      • Secondary Lighting Technology LED
      • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology (IPT)
      • _x000D_
      • Secondary Wattage 15 W
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Universal Or Specific Universal
      • _x000D_
      • Wattage 103.5 W
      • _x000D_
      • Wiring Harness Included No
      • _x000D_
      • Amperage Rating 7.5 A
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Backlight Amperage Rating 0.3 A
      • _x000D_
      • Backlight Wattage 4.14 W
      • _x000D_
      • Beam Pattern Spot
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Brightness 11,225 Lumens
      • _x000D_
      • Description Spot; Amber
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Standards Compliance Exceeds MIL-STD810G Mil-Spec Testing
      • _x000D_
      • Impact Resistance IK10 Compliant Mechanical Impact Testing
      • _x000D_
      • Water Resistance IP69K Waterproof Up To 9ft And Pressure Washable
      • _x000D_
      • Depth 3.2 Inches
      • _x000D_
      • Height 6.5 Inches
      • _x000D_
      • Length 6.5 Inches
      • _x000D_
      • Weight 4.2 Pounds
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      High-Performance Lighting. The Baja Designs LP6 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber delivers exceptional illumination for off-road and auxiliary applications, providing a powerful 11,225 lumens output with a versatile beam pattern designed to enhance trail visibility and safety. It is ideal for enthusiasts seeking superior light coverage in demanding environments.

      _x000D__x000D_

      Construction and Appearance. This light pod features a durable hardcoated polycarbonate lens and a robust powder-coated cast aluminum housing finished in black. The stainless steel mounting hardware ensures corrosion resistance and secure installation. The design incorporates Direct Ducted Cooling for effective heat management and integrated peripheral lighting technology for a broad beam spread.

      _x000D__x000D_

      Installation. Installation is straightforward with included hardware and typically requires no drilling. Minor adaptations may be needed for universal mounting points without the need for complex modifications.

      _x000D__x000D_

      Warranty. The product is backed by a limited lifetime warranty, providing long-term reliability and customer confidence.
      Application. This product fits universally with some adaptation possibly required.

      Baja Designs 270013

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) Light
      • (1) Bracket
      • (1) Hardware pack
      • (1) Center 3/8" bolt
      • (2) Longer 1/4"-20 bolts
      • Associated washers
      • (6) Bolts for LP9 bezel (4mm allen wrench required)
      • (4) Bolts for LP6 & LP4 bezel (4mm allen wrench required)
      • O-ring
      • Three position toggle switch (on/off/on) Double Pole, Double Throw (DPDT)
      • Deustsch Connector (DT06-4S) mating connector
      • LP Series Wiring Harness (part number 64-0172 recommended)
      • Relay (PN: 4RD 933 332-18)
