Find Light Bars & Off-Road Lighting for your Silverado 1500

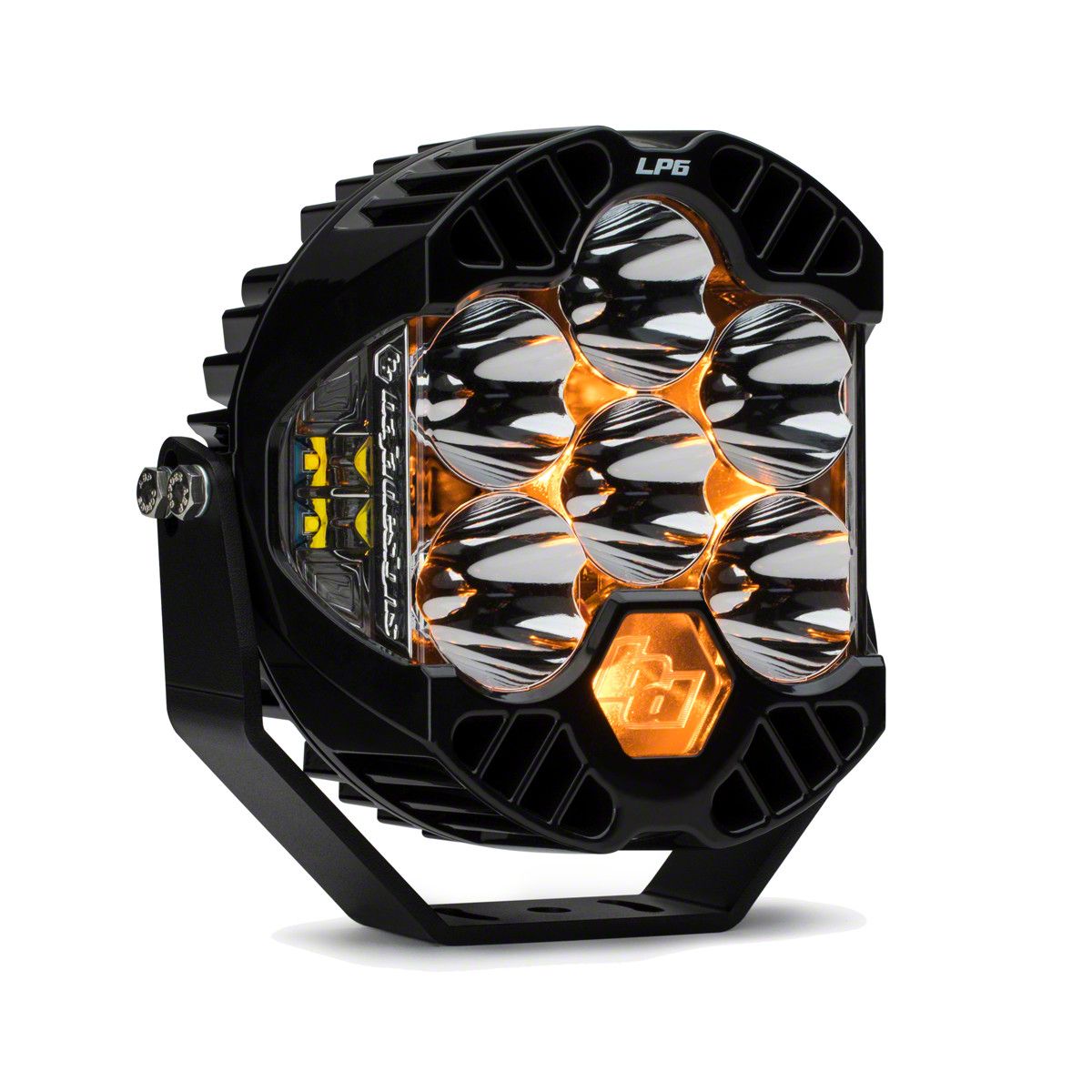

Baja Designs LP6 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)

Item S171431
Our Price

$524.95 each

Military, Medical & First Responders $26.25 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Lighting and Wiring Setup Tested for Jeep JL/JT with Rubicon Steel Bumper
      • _x000D_
      • Wiring Designed to Work with Factory Upfitter Systems or sPOD / Switch Pros Units
      • _x000D_
      • LP6 Pro is a 6-Inch Powerhouse with 10,300 Lumens Total Output
      • _x000D_
      • 200 Degree Spread of Useable LED Light
      • _x000D_
      • 8,600 Forward Projecting Lumens Plus 1,700 Lumens Dedicated Peripheral Lighting with Integrated Peripheral Technology (IPT)
      • _x000D_
      • Proprietary Direct Ducted Cooling (DDC) Technology for Improved Cooling and Performance
      • _x000D_
      • Amber Daytime Running Light with Low Power and High Power Modes
      • _x000D_
      • Satisfaction Guarantee with 30-Day Money Back Policy
      • _x000D_
      • Limited Lifetime Warranty for Complete Purchase Protection
      • _x000D_
      • uService Replaceable Lenses and Optics
      • _x000D_
      • ClearView Technology Providing Light Where Needed
      • _x000D_
      • MoistureBlock Waterproof, Rainproof, and Submersible Design
      • _x000D_
      • CopperDrive LED Driven at 100 Percent
      • _x000D_
      • 5000K Daylight Temperature for Reduced Driver Fatigue and Natural Color
      • _x000D_
      • Standards: IP69K Waterproof up to 9 Ft and Pressure Washable
      • _x000D_
      • Meets or Exceeds MIL-STD810G Military Spec Testing
      • _x000D_
      • IK10 Impact Resistance Certified
      • _x000D_
      • Dimensions: 6.5 in Length and Height, 3.2 in Depth
      • _x000D_
      • Weight: 4.2 Pounds
      • _x000D_
      • Amperage Rating: 7.5 Amps with Secondary Amperage of 1 Amp
      • _x000D_
      • Average Rated Life Nearly 50,000 Hours
      • _x000D_
      • Backlight Amperage: 0.3 Amps with 4.14 Watts
      • _x000D_
      • Beam Pattern: Driving/Combo with Clear Lens
      • _x000D_
      • Bezel and Housing Made of Powder Coat Cast Aluminum in Black
      • _x000D_
      • Lens Material is Hardcoated Polycarbonate
      • _x000D_
      • Includes Mounting Hardware Made of Stainless Steel
      • _x000D_
      • Built-In Overvoltage Protection
      • _x000D_
      • Terminal Connector Type: DT06-4S Deutsch Mating Connector
      • _x000D_
      • No Wiring Harness Included
      • _x000D_
      • Lights Combine High Beam, Low Beam, and Daytime Running Backlighting Modes
      • _x000D_
      • Secondary Lighting Uses Integrated Peripheral Technology (IPT) with Four LEDs Producing 1,972 Lumens
      • _x000D_
      • Wattage Rating: 103.5 Watts Total
      • _x000D_
      • Fits Jeep Gladiator 2020-2025 and Jeep Wrangler JL 2018-2025 with OE Steel Bumper
      • _x000D_

      Description

      Premium LED Lighting Solution. The Baja Designs LP6 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Clear delivers superior lighting performance with a total output of 10,300 lumens. Designed for optimized off-road visibility and integration, it supports factory upfitter systems and popular aftermarket switch units for seamless control. This versatile light pod provides a broad 200-degree spread and dedicated peripheral lighting to enhance safety and driving experience.

      _x000D__x000D_

      Construction and Appearance. Crafted from powder-coated cast aluminum with a black finish, the housing and bezel offer exceptional durability and corrosion resistance. The lens features hardcoated polycarbonate for impact resistance and long-lasting clarity. The design incorporates advanced Direct Ducted Cooling (DDC) technology to maintain optimal operating temperatures during extended use.

      _x000D__x000D_

      Installation. Installation is straightforward and typically requires no drilling when used with compatible factory steel bumpers. It is designed to fit specific Jeep Rubicon steel bumper models, simplifying the setup for users familiar with OE configurations.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty for comprehensive purchase protection.

      _x000D__x000D_

      Application. Specifically designed to fit Jeep Gladiator models from 2020 to 2025 and Jeep Wrangler JL models from 2018 to 2025 equipped with OE steel bumpers. Some adaptation may be required depending on vehicle configuration.

      Baja Designs 270003

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 30 Minutes

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) Light
      • (1) Bracket
      • (1) Hardware pack including 1/4”-20 bolts and 3/8” bolts with associated washers
      • (6) Bolts for LP9 bezel/lens (4mm Allen head)
      • (4) Bolts for LP6 & LP4 bezel/lens (4mm Allen head)
      • (1) Deustsch Connector (DT06-4S) for wiring
      • (1) Three position toggle switch (on/off/on) that is Double Pole, Double Throw (DPDT)
      • (1) 64-0172, LP9 Pro Wire Harness (recommended for powering up to two lights)
      • (1) Relay (PN: 4RD 933 332-18)
