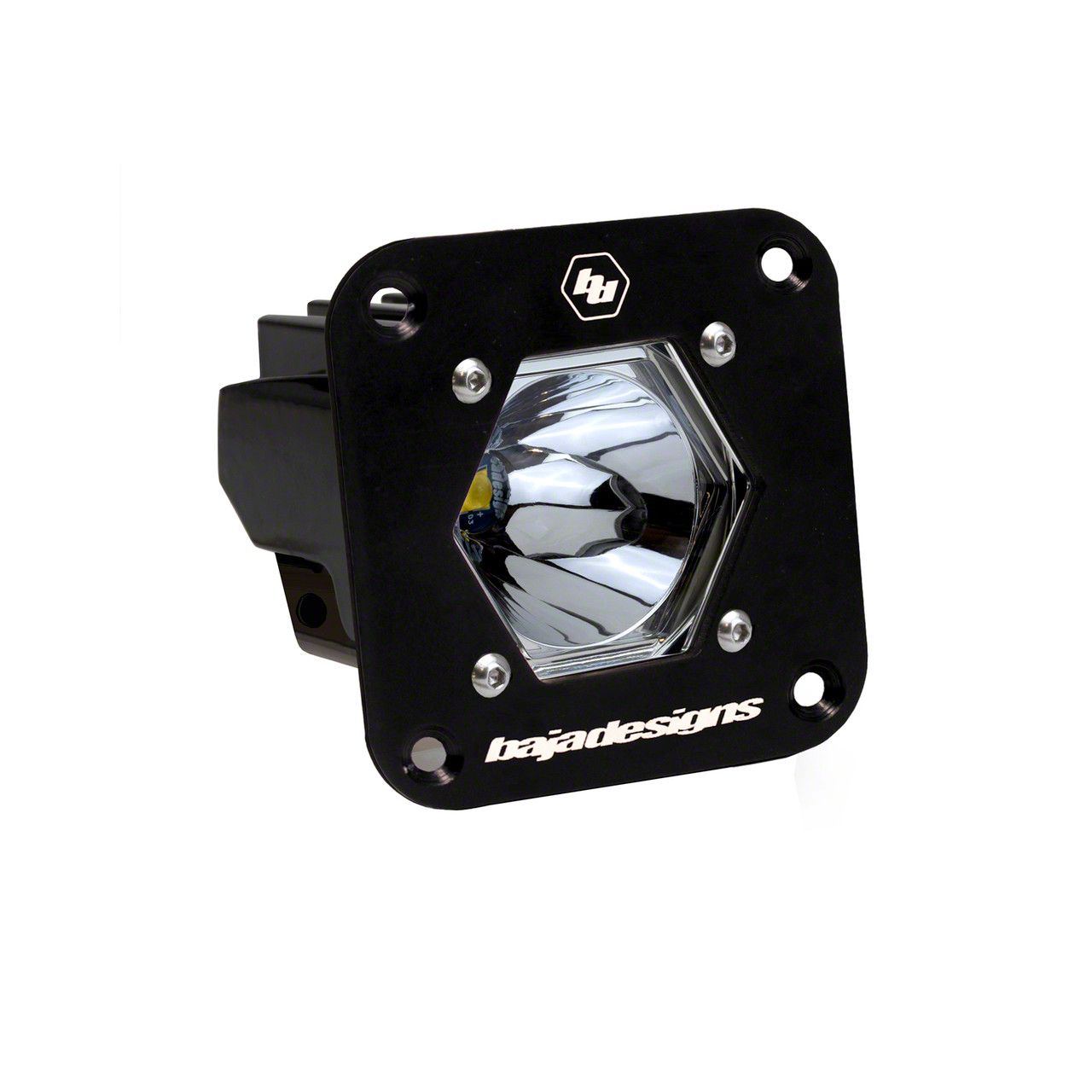

Baja Designs S1 Flush Mount Auxiliary Light Pod; Wide Cornering Beam; Clear (Universal; Some Adaptation May Be Required)
Item HG32774
Our Price
$147.35 each
Military, Medical & First Responders
$7.37 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type S1 Flush Mount LED Light Pod with Wide Cornering Beam and Clear Lens _x000D_
- Voltage 9-28 Volts _x000D_
- Wattage 19.596 Watts _x000D_
- Wiring Harness Not Included _x000D_
- Amperage Rating 1.420 Amps _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Beam Pattern Wide Cornering _x000D_
- Bezel Material Powder Coated Cast Aluminum _x000D_
- Brightness 2,320 Lumens _x000D_
- Description Flush Mount Wide Cornering Clear Lens _x000D_
- Housing Color Black _x000D_
- Housing Material Hard Anodized and Powder Coated Cast Aluminum _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Standards Compliance Exceeds MIL-STD810G Durability _x000D_
- Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Water Resistance IP69K Waterproof Pressure Washable _x000D_
- Depth 2.1 Inches _x000D_
- Height 2.1 Inches _x000D_
- Length 2.1 Inches _x000D_
- Weight 0.4 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 2 to 2.75 Inch |
Description
Compact High-Performance Lighting. The Baja Designs S1 Flush Mount Auxiliary Light Pod with Wide Cornering Beam and Clear Lens is a high-output LED light designed for versatile applications. This compact light delivers powerful illumination for driving, off-road use, or campsite lighting, ensuring excellent visibility and enhanced safety.
_x000D__x000D_Construction and Appearance. Constructed from hard anodized and powder coated cast aluminum, the light features a durable black housing that resists corrosion. The clear lens is crafted from hardcoated polycarbonate, offering strong protection against impacts and environmental elements.
_x000D__x000D_Installation. Installation is straightforward with the included stainless steel mounting hardware. The installation requires only a single 2.5-inch hole saw, allowing for an easy and clean flush-mount setup without the need for additional tools or references.
_x000D__x000D_Warranty. Backed by a limited lifetime warranty for complete purchase protection.
_x000D__x000D_Application. Designed for universal fitment; some adaptation may be required to accommodate specific mounting locations or vehicle configurations.
Baja Designs 381005
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) S1 Flush Mount Auxiliary Light Pod
