Installation Time
(approx) 2 Hours
Difficulty Level:
Simple installation for anyone.
Installation Guides
FREE 1 to 3-Day Delivery on Orders $149+ Details
Baja Designs Squadron SAE/Pro LED Fog Light Pocket Kit; Clear (21-23 F-150 w/ Factory LED Fog Lights)Find parts that fit my vehicle
Item T565304
Our Price
$1,022.95 kit
Military, Medical & First Responders
$51.15 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Fog Light Pocket Kit
- Squadron Pro - Driving/Combo Beam
- Squadron SAE, White - Wide Cornering Beam
- High Intensity CREE LEDS
- Hard Coated Polycarbonate Lens
- Cast Aluminum Housing
- Hard Anodized and Powder Coated Finish
- Waterproof Rating of IP69K
- Includes Wiring Harness and Mounting Brackets
- Fits 2021-2023 F-150s with Factory LED Fog Lights with DRL
| Brand | Baja Designs |
| Fog Light Output Type | LED |
Description
Style and Performance. This Baja Designs Squadron Pro/SAE White Fog Light Pocket Kit is designed for the Ford F-150 enthusiast that is looking to light up the trail with ample light, while differentiate yourself from the pack. This kit specifically utilizes a pair of Squadron Pro Driving/Combo Lights and a pair of Squadron SAE White wide cornering lights. This is a comprehensive kit and does not require any additional parts for installation.
Squadron PRO Lights. Utilizing (2) high intensity CREE LEDs, this Baja Designs Pro Light (each) has a 4,600 lumen output with a 5000K color temperature at 40 watts / 2.9 amps. Featuring a cast aluminum housing with a clear, hard coated polycarbonate lens, this Baja Designs Light has a waterproof rating of IP69K, making it perfect for all weather conditions. The housing is completed in a hard anodized and powder coated finish for aggressive good looks and long lasting corrosion resistance. The Driving/Combo beam pattern provides both Driving (42°) and Spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance.
Squadron SAE White Lights. Utilizing (4) high intensity LEDs, this Baja Designs Squadron Light (each) has a 2,480 lumen output with a 5000K color temperature at 22 watts / 1.6 amps. Featuring a cast aluminum housing with a clear, hard coated polycarbonate lens, this Baja Designs Light has a waterproof rating of IP69K, making it perfect for all weather conditions. The housing is completed in a powder coated finish for aggressive good looks and long lasting corrosion resistance. The Wide Driving beam pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
Bolt-on Installation. The included Mounting Brackets install with no drilling required, they simply bolt on utilizing the factory mounting points. This Baja Designs Fog Light Pocket Kit comes with a toggle switch style wiring harness that will require some minor wiring for operation. Installation can normally be completed in under two hours.
Application. This Baja Designs Squadron Pro/SAE White Fog Light Pocket Kit is designed to fit 2021-2023 Ford F-150 models equipped with Factory LED Fog Lights with Daytime Running Lights.
Squadron PRO Lights. Utilizing (2) high intensity CREE LEDs, this Baja Designs Pro Light (each) has a 4,600 lumen output with a 5000K color temperature at 40 watts / 2.9 amps. Featuring a cast aluminum housing with a clear, hard coated polycarbonate lens, this Baja Designs Light has a waterproof rating of IP69K, making it perfect for all weather conditions. The housing is completed in a hard anodized and powder coated finish for aggressive good looks and long lasting corrosion resistance. The Driving/Combo beam pattern provides both Driving (42°) and Spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance.
Squadron SAE White Lights. Utilizing (4) high intensity LEDs, this Baja Designs Squadron Light (each) has a 2,480 lumen output with a 5000K color temperature at 22 watts / 1.6 amps. Featuring a cast aluminum housing with a clear, hard coated polycarbonate lens, this Baja Designs Light has a waterproof rating of IP69K, making it perfect for all weather conditions. The housing is completed in a powder coated finish for aggressive good looks and long lasting corrosion resistance. The Wide Driving beam pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
Bolt-on Installation. The included Mounting Brackets install with no drilling required, they simply bolt on utilizing the factory mounting points. This Baja Designs Fog Light Pocket Kit comes with a toggle switch style wiring harness that will require some minor wiring for operation. Installation can normally be completed in under two hours.
Application. This Baja Designs Squadron Pro/SAE White Fog Light Pocket Kit is designed to fit 2021-2023 Ford F-150 models equipped with Factory LED Fog Lights with Daytime Running Lights.
Baja Designs 447870
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

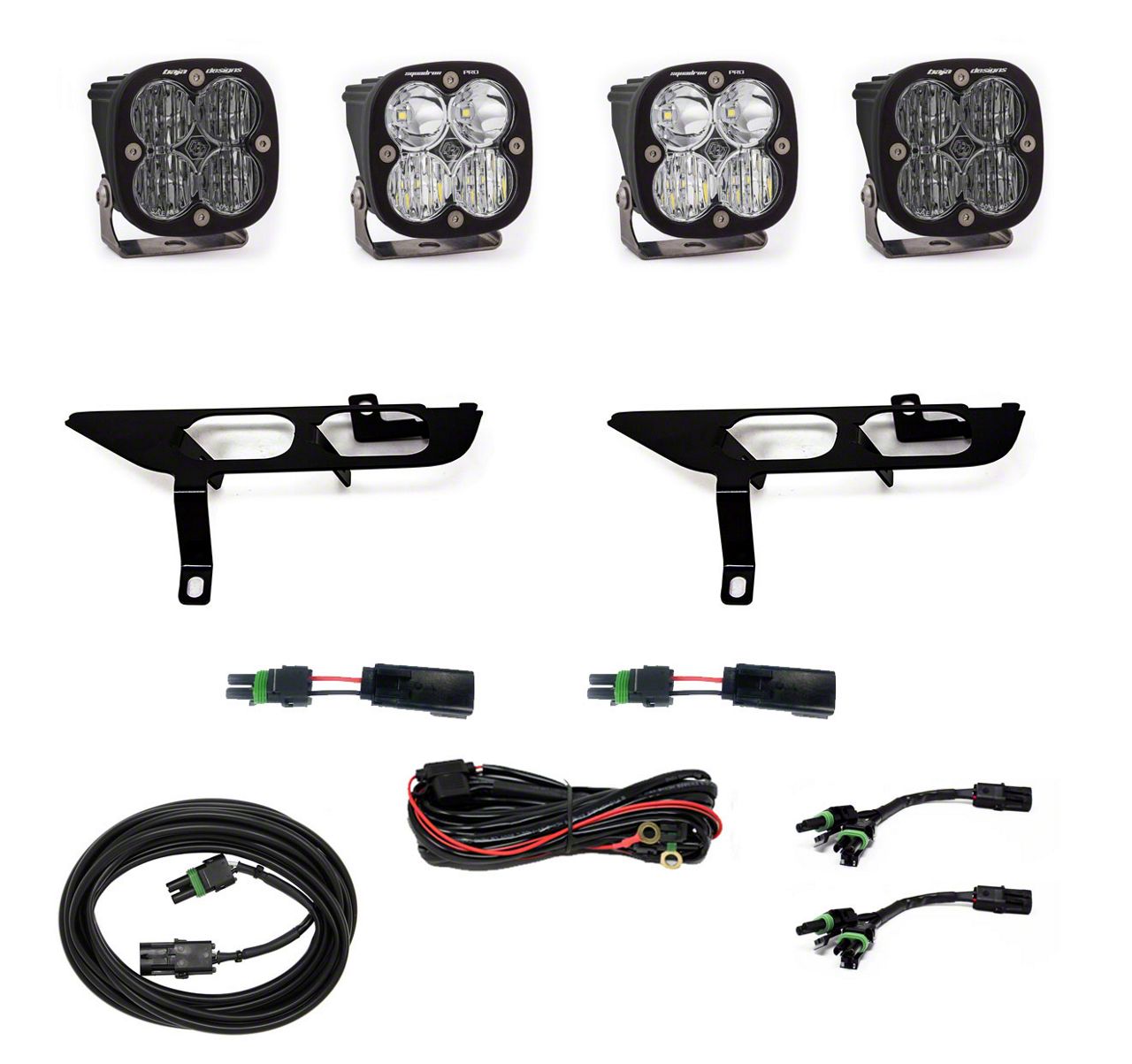

What's in the Box
- (2) Squadron Pro, Driving/Combo
- (2) Squadron SAE, White Wide Cornering
- (2) Fog Pocket Brackets
- (2) Wire Adapters
- (1) Toggle Switch Harness
- (2) 55-inch Splitters
- (2) Small Splitters
5.0
Customer Reviews (2)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-150
- 2.7L V6 EcoBoost - 21, 22, 23
- 3.0L V6 Power-Stroke - 21
- 3.3L V6 - 21, 22, 23
- 3.5L V6 EcoBoost - 21, 22, 23
- 3.5L V6 EcoBoost Limited - 21, 22, 23
- 3.5L V6 EcoBoost Raptor - 21, 22, 23
- 3.5L V6 PowerBoost - 21, 22, 23
- 5.0L V8 - 21, 22, 23
- 5.2L V8 Supercharged Raptor - 23
