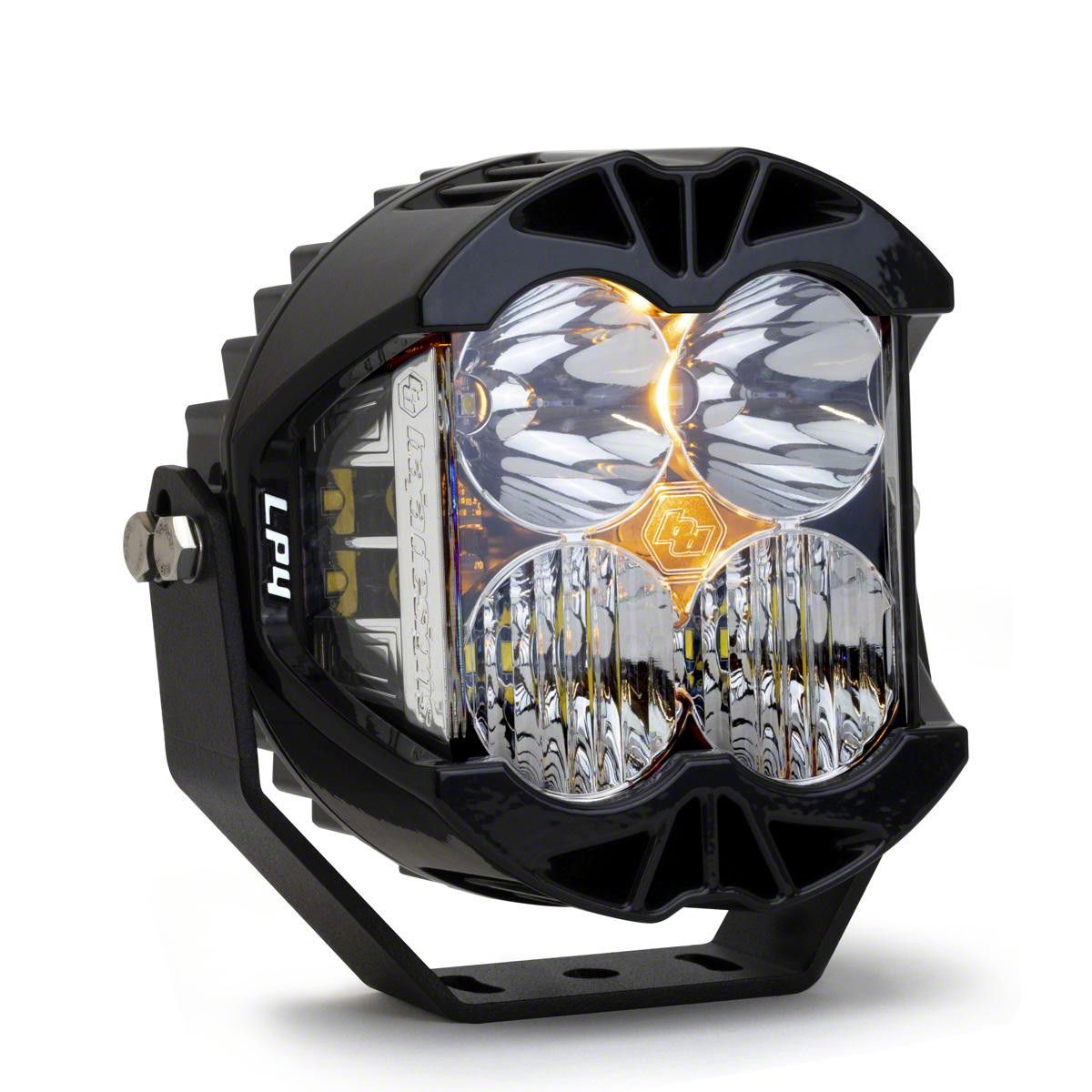

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Spot Beam; Clear (Universal; Some Adaptation May Be Required)

Item T590924
Our Price

$481.75 each

Military, Medical & First Responders $24.09 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Lens Color Clear
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Quantity 1
      • _x000D_
      • Lighting Modes Beam/Day-Time Running Backlighting
      • _x000D_
      • Lighting Quantity 4
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP4 Pro LED Light Pod
      • _x000D_
      • Secondary Amperage Rating 1.000 A
      • _x000D_
      • Secondary Brightness 1972 Lumens
      • _x000D_
      • Secondary Light Quantity 4 LEDs
      • _x000D_
      • Secondary Lighting Technology LED
      • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology (IPT)
      • _x000D_
      • Secondary Wattage 15 W
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Universal Or Specific Universal
      • _x000D_
      • Wattage 75.900 W
      • _x000D_
      • Wiring Harness Included No
      • _x000D_
      • Amperage Rating 5.500 A
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Backlight Amperage Rating 0.350 A
      • _x000D_
      • Backlight Wattage 4.830 W
      • _x000D_
      • Beam Pattern Spot
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Brightness 8857 Lumens
      • _x000D_
      • Description Spot; Clear
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Standards Durability Exceeds MIL-STD810G (Mil-Spec Testing)
      • _x000D_
      • Standards Impact Resistance IK10 Compliant (Mechanical Impact Testing)
      • _x000D_
      • Standards Water Resistance IP69K (Waterproof up to 9ft & Pressure Washable)
      • _x000D_
      • Depth 3.200 Inches
      • _x000D_
      • Height 5.100 Inches
      • _x000D_
      • Length 5.100 Inches
      • _x000D_
      • Weight 2.800 Pounds
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      HIGH-PERFORMANCE AUXILIARY LIGHT. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Spot Beam delivers 8,857 raw lumens with a focused spot beam and extensive peripheral lighting. Featuring integrated peripheral technology for a wide 200-degree spread, it greatly improves visibility and safety in a variety of driving conditions.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Constructed from powder-coated cast aluminum with a black finish, the housing provides excellent durability and corrosion resistance. The hardcoated polycarbonate lens adds impact protection to the LEDs, while stainless steel mounting hardware ensures a secure fit. The design incorporates Direct Ducted Cooling (DDC) technology for efficient heat dissipation, maintaining optimal lighting performance.

      _x000D__x000D_

      INSTALLATION. Installation is straightforward for professionals, typically involving standard mounting with included stainless steel hardware. Most applications do not require specialized drilling, enabling quick and secure setup.

      _x000D__x000D_

      WARRANTY. This product includes a limited lifetime warranty, offering comprehensive protection and peace of mind.

      _x000D__x000D_

      APPLICATION. Designed to fit universally; some adaptation may be necessary.

      Baja Designs 290001

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Light
      • (1) Bracket
      • (1) Hardware pack containing:
        • (1) Center 3/8" bolt
        • (2) Longer 1/4"-20 bolts
        • Associated washers
        • Remaining 1/4" hardware for mounting bracket to light
      • (6) Bolts for LP9 bezel and lens or (4) bolts for LP6 & LP4 bezel and lens
      • (1) O-ring
      • (1) LP Series Wiring Harness (part number 64-0172 recommended)
      • (1) Relay (part number 4RD 933 332-18)
      • (1) Deutsch Connector (DT06-4S)
