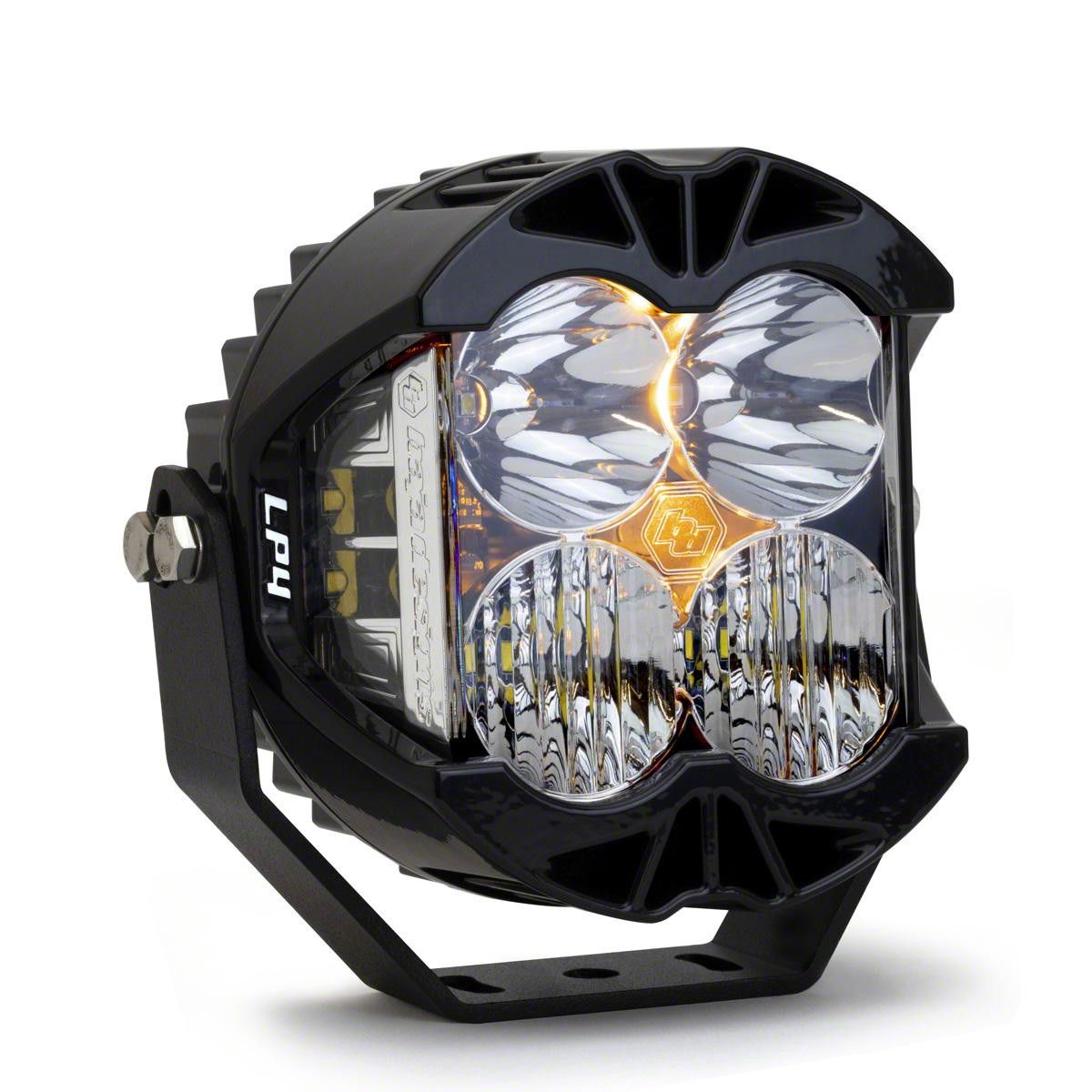

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)

Item T590923
Our Price

$481.75 each

Military, Medical & First Responders $24.09 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP4 Pro LED Light Pod
      • _x000D_
      • Secondary Amperage Rating 1.000 Amp
      • _x000D_
      • Secondary Brightness 1972 Lumens
      • _x000D_
      • Secondary Light Quantity 4 LEDs
      • _x000D_
      • Secondary Lighting Technology LED
      • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology (IPT)
      • _x000D_
      • Secondary Wattage 15 Watts
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Universal Or Specific Universal
      • _x000D_
      • Wattage 75.900 Watts
      • _x000D_
      • Wiring Harness Included No
      • _x000D_
      • Amperage Rating 5.500 Amp
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Backlight Amperage Rating 0.350 Amp
      • _x000D_
      • Backlight Wattage 4.830 Watts
      • _x000D_
      • Beam Pattern Driving/Combo
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Brightness 8857 Lumens
      • _x000D_
      • Description Driving/Combo; Clear
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Lens Color Clear
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Quantity 1
      • _x000D_
      • Lighting Modes Beam And Day-Time Running Backlighting
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Standards Durability Exceeds MIL-STD810G
      • _x000D_
      • Standards Impact Resistance IK10 Compliant
      • _x000D_
      • Standards Water Resistance IP69K Waterproof Up To 9 Feet And Pressure Washable
      • _x000D_
      • Depth 3.200 Inches
      • _x000D_
      • Height 5.100 Inches
      • _x000D_
      • Length 5.100 Inches
      • _x000D_
      • Weight 2.800 Pounds
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required Jeep Gladiator 2020-2025 and Jeep Wrangler JL 2018-2025 With OE Steel Bumper
      • _x000D_

      Description

      High-Performance Auxiliary Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Driving/Combo Beam delivers 8,857 lumens of bright LED light with a 200-degree usable spread. It incorporates patented Integrated Peripheral Technology (IPT) to provide dedicated peripheral lighting, improving overall road illumination and safety for drivers.

      _x000D__x000D_

      Construction and Appearance. This light pod features a durable powder coat cast aluminum housing and bezel with a hardcoated polycarbonate lens for superior impact resistance and environmental protection. The black finish adds a sleek appearance while exceeding MIL-STD810G military testing standards and offering an IP69K waterproof rating for reliable use in wet and rugged conditions.

      _x000D__x000D_

      Installation. Installation is straightforward and compatible with Jeep JL/JT OE steel bumpers, working seamlessly with factory upfitter wiring or aftermarket controllers such as sPOD or Switch Pros. No drilling is required for mounting using the included stainless steel hardware, simplifying the fitment process.

      _x000D__x000D_

      Warranty. The product includes a limited lifetime warranty, ensuring long-term protection and reliability.

      _x000D__x000D_

      Application. Designed specifically for Jeep Gladiator models from 2020 to 2025 and Jeep Wrangler JL models from 2018 to 2025 with OE steel bumpers, this light kit offers a precise fitment combination, though some adaptation may be required depending on vehicle setup.

      Baja Designs 290003

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) Light
      • (1) Bracket
      • (1) Hardware pack including 1/4”-20 bolts and 3/8” hardware
      • (1) Center 3/8" bolt
      • (2) Longer 1/4”-20 bolts
      • (1) Set of associated washers
      • Deustsch Connector (DT06-4S)
      • (6) Bolts for LP9 bezel/lens removal
      • (4) Bolts for LP6 & LP4 bezel/lens removal
      • (1) O-ring
      • (1) Three position toggle switch (on/off/on) Double Pole, Double Throw (DPDT)
      • (1) 64-0172 LP9 Pro Wire Harness (recommended)
      • (1) Relay PN: 4RD 933 332-18
