Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

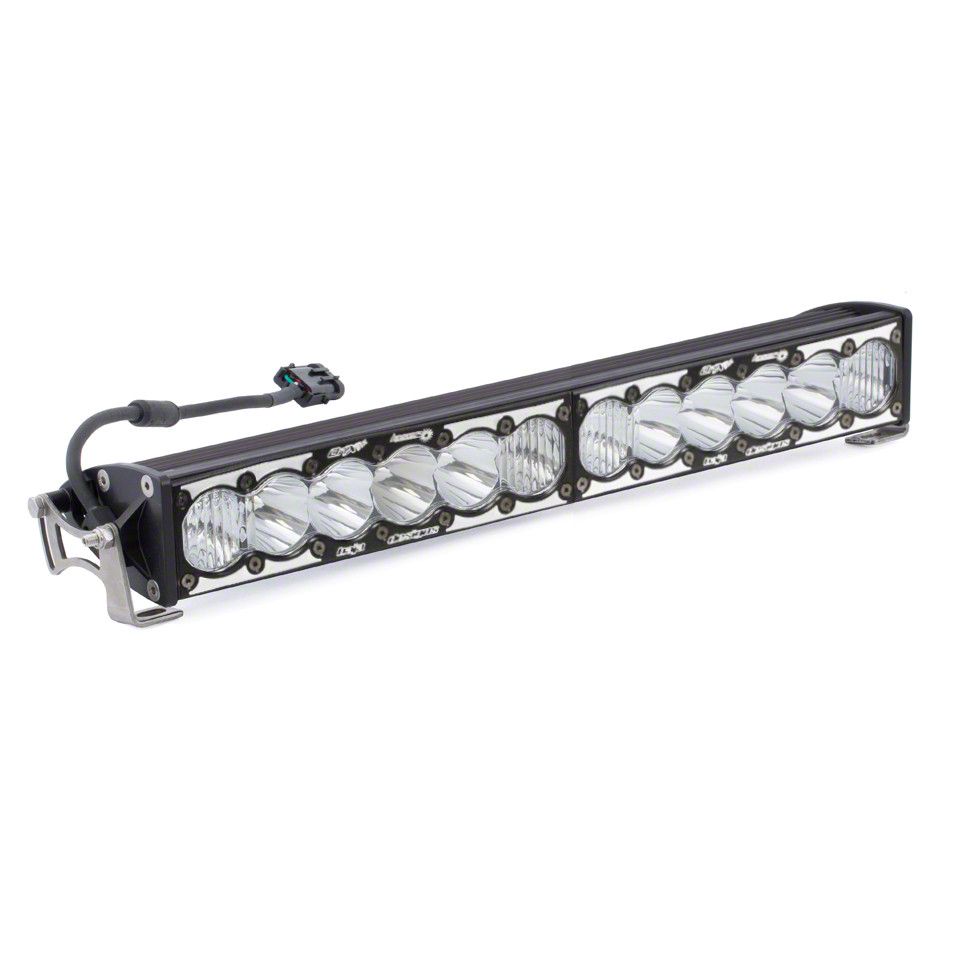

Baja Designs 50-Inch OnX6 Hybrid LED/Laser Light Bar; Hybrid Spot Beam; Clear (Universal; Some Adaptation May Be Required)
Item T592172
Our Price
$4,222.95 each
Military, Medical & First Responders
$211.15 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Depth 4.290 Inches _x000D_
- Height 2.690 Inches _x000D_
- Length 50 Inches _x000D_
- Weight 18.650 Pounds _x000D_
- Amperage Rating 7.200 Amps _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Beam Pattern Hybrid Spot _x000D_
- Bezel Material Billet Machined Aluminum _x000D_
- Brightness 3750 Lumens _x000D_
- Description Hybrid Spot; Clear Lens _x000D_
- Housing Color Black _x000D_
- Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam Only _x000D_
- Lighting Quantity 30 _x000D_
- Lighting Technology 10 Laser Chips/20 LEDs _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type OnX6 50 Inch Hybrid LED/Laser Light Bar _x000D_
- Wattage 99.360 Watts _x000D_
- Wiring Harness Not Included _x000D_
- Patent Number 10,641,472 _x000D_
- Durability Exceeds MIL-STD810G Mil-Spec Testing _x000D_
- Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Water Resistance IP69K Waterproof up to 9 Feet and Pressure Washable _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Light Bar Width | 50 Inch and Up |
Description
Advanced Lighting Technology. The Baja Designs 50-Inch OnX6 Hybrid LED/Laser Light Bar features a hybrid spot beam with a clear lens, combining advanced LEDs and laser chips. This light bar delivers superior illumination that extends 30-40% farther than previous models, enhancing visibility and safety during high-speed dirt driving or challenging terrain navigation.
_x000D__x000D_Construction and Appearance. Built from aircraft-grade aluminum with a mil-spec hard anodized finish, this light bar ensures durability and resistance to harsh environmental conditions. It includes a billet machined aluminum bezel and a hardcoated polycarbonate clear lens for optimal light transmission and protection. The housing is finished in black, providing a sleek and professional look.
_x000D__x000D_Installation. Installation is straightforward with included stainless steel mounting hardware designed for secure attachment. Basic mechanical skills are generally sufficient, though vehicle-specific wiring may require professional assessment due to the light bar’s power requirements.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty to ensure long-term reliability and peace of mind.
_x000D__x000D_Application. Designed to fit universal applications, some adaptation may be required depending on the vehicle make and model.
Baja Designs 455007
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Light Bar
