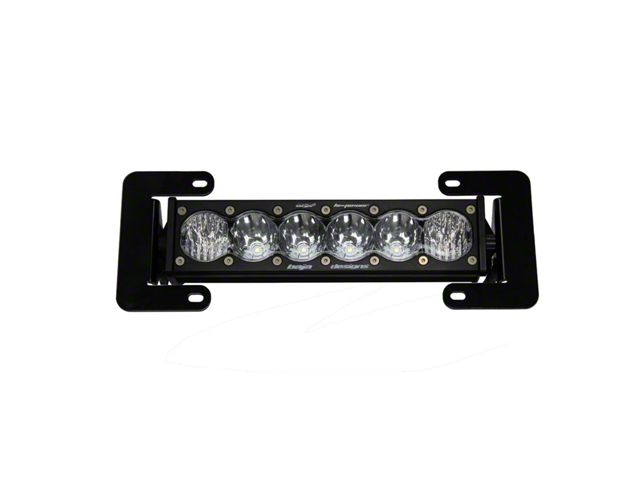

Baja Designs 10-Inch OnX6+ LED Light Bar with Lower Grille Mounting Brackets (17-20 F-150 Raptor)Find parts that fit my vehicle

Item T544784
Product Image
157 Reviews of Baja Designs
Our Price

$676.95

Military, Medical & First Responders $33.85 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • OnX6+ 10-Inch LED Light Bar Driving Combo Clear
      • Two Mounting Brackets Included
      • Upfitter Wiring Harness 640094 Included
      • All Necessary Mounting Hardware Supplied
      • 106.26 Watts Power Consumption
      • High Brightness Output of 10,817 Lumens, Low Brightness 9,230 Lumens
      • Beam Pattern is Driving/Combo
      • Housing Made from Aircraft Grade Aluminum with Mil-Spec Hard Anodize
      • Lens Material is Hardcoated Polycarbonate
      • Lens Color Clear
      • Bezel Made from Billet Machined Aluminum
      • Lighting Technology LED with Six Individual Lights
      • Forward Projecting Light Type
      • Stainless Steel Mounting Hardware
      • Built-in Overvoltage Protection
      • Average Rated Life Almost 50,000 Hours
      • Amperage Rating 7.7 Amps
      • Durability Exceeds MIL-STD-810G
      • Impact Resistance IK10 Compliant
      • Water Resistance IP69K Certified, Waterproof up to 9 Feet and Pressure Washable
      • Weight 4.25 Pounds
      • Dimensions: Length 10 Inches, Depth 4.29 Inches, Height 2.69 Inches
      • Wiring Harness Hi-Low Dongle Not Included
      • Fits 2017-2020 F-150 Raptor Lower Grille Area Only; Brackets Do Not Accept Other Lights

      Description

      HIGH-PERFORMANCE LED LIGHT BAR. The Baja Designs 10-Inch OnX6+ LED Light Bar with lower grille mounting brackets provides powerful illumination with its 10,817 lumen output for enhanced visibility. Designed specifically for off-road and night driving conditions, it delivers a combined spot and flood beam pattern for optimal lighting coverage.

      CONSTRUCTION AND APPEARANCE. Crafted with aircraft-grade aluminum housing featuring a mil-spec hard anodized finish, the light bar offers superior durability and corrosion resistance. The clear hardcoated polycarbonate lens protects internal LEDs, while the billet machined aluminum bezel adds a premium aesthetic and rugged sturdiness.

      INSTALLATION. Installation is straightforward and requires minimal modification to the vehicle, with no drilling needed for mounting brackets specifically designed to fit the Ford F-150 Raptor's lower grille. The included upfitter wiring harness allows clean integration with factory switches.

      WARRANTY. This product carries a lifetime limited warranty for long-term reliability and customer peace of mind.

      APPLICATION. Designed exclusively to fit the 2017-2020 Ford F-150 Raptor lower grille area; note that the supplied brackets only support this exact light bar model and do not accept other light configurations.

      Baja Designs 447557

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.8

      Reviews of Baja Designs Lights Products (157)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-150

      • 3.5L V6 EcoBoost Raptor - 17, 18, 19, 20
