Find Engine Components for your F-150

V-Band Clamp; 3-Inch

Item T625607
1 Reviews of similar
Our Price

$36.99

Military, Medical & First Responders $1.85 Available in AT Cash Rewards.
Confirm Eligibility

Save with Open Box

From $22.19

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Description, Q&A, Specs & Installation

      Description

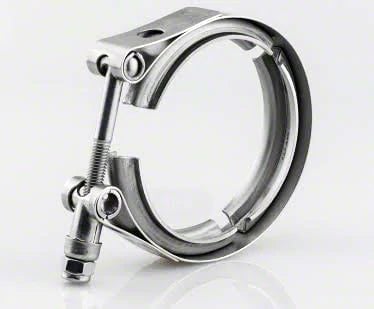

      V-Band Clamp Sizing Information: Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself. This specific V-Band Clamp is intended to be used with 3.000" ID V-Band Flanges (matching tube size: 3.000" OD) and will accept V-Band Flanges with an overall OD of 3.570"

      Our 304 Stainless Steel V-Band Clamps are manufactured in an ISO 9001 certified facility and feature a "Standard" T-Bolt style clamping mechanism to ensure a tight, leak-free seal.


      DETAILED SPECIFICATIONS:

      Clamp Material Type 304 Stainless
      Compatible V-Band Flange OD 3.570"
      Matching Tube Size (OD) 3.000"
      Clamp Bandwidth
      		 0.750"
      Clamp Type V-Band, Standard T-Bolt
      Fastener Size 8mm-1.5

      Provided Fasteners

      Metal Lock Nut (QTY: 1)
      Non-Locking Nut (QTY: 1)

      NOTE: Our V-Band Clamps are supplied with two types of nuts: a Zinc plated metal lock nut and a zinc plated non-locking hex nut. The Zinc plated lock nut ensures that your clamp stays locked in placed during harsh conditions on the street, strip, and track. The zinc plated non-locking hex nut is provided so that the clamp can be used in mock-up, fitment, and pre-installation situations where a lock nut is not required. The non-locking hex nut will not lock in place during use to ensure that the threaded portion of the clamp will not be damaged.

      Disclaimer: Our 3.0-inch V-Band clamps are supplied with a lock nut and a standard non-locking hex nut. The metal lock nut is a locking-style nut and is not intended to be used during mock-up. Attempting to thread, remove, and re-thread the lock nut may cause damage to the "T-Bolt" section of the clamp. In some cases, excessive force can damage and/or break the "T-Bolt" section of the 3.0" exhaust v-band clamp. If you intend to use our clamps during the mock-up process please use a non-locking hex nut.
