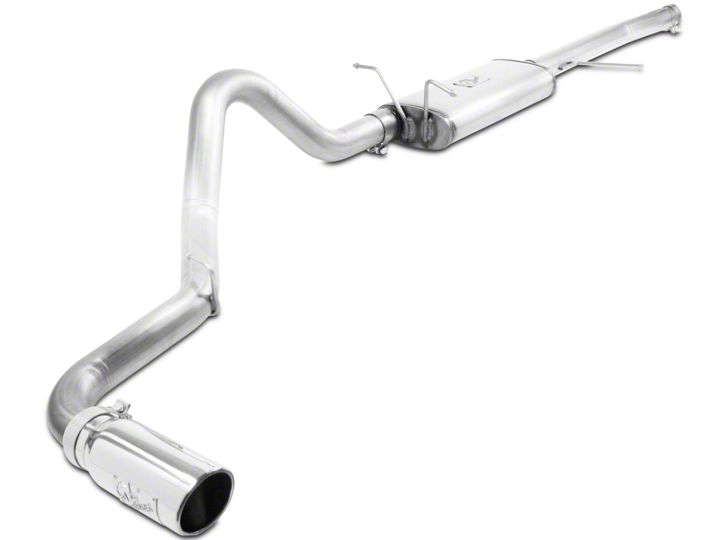

How to Install AFE Mach Force XP 3 in. Cat-Back Exhaust w/ Polished Tip - Single Side Exit

Installation Time

2 hours

American Muscle
Shop Parts in this Guide

Step 1: (Read Instructions prior to installation) Remove your stock exhaust up to the catalytic converter from the rear of your truck working your way forward. Take caution not to damage the factory band clamp and isolation mounts as they will be reused. It is recommended to not fully tighten the clamps until the entire system has been installed.


Step 2: For faster installation spread the pieces of the exhaust along side of your vehicle according to the diagram shown.


Step 3: Slip band clamp over expanded end of muffler assembly prior to installation.


Step 4: Install mid pipe into both the slip fit and the muffler assembly.


Step 5: Utilizing the factory isolation mounts now install over-axle/tailpipe and tighten all band clamps from front to rear.


Step 6: Your installation is now complete. It is recommended to re-tighten all exhaust components after 50-100 miles.
