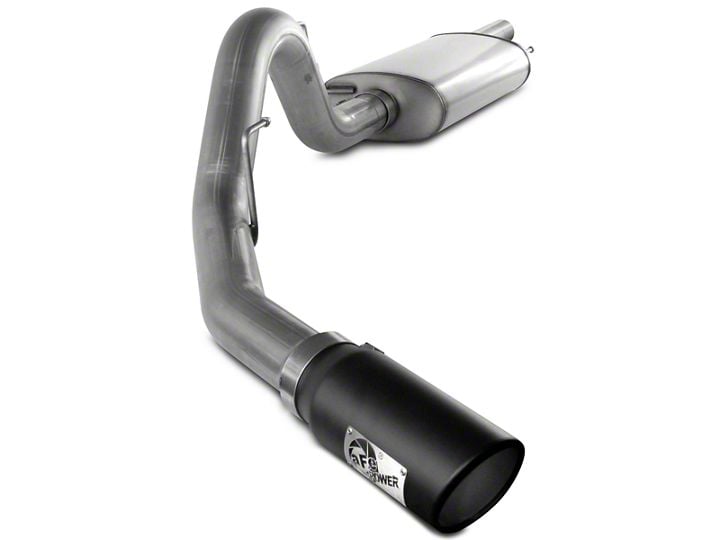

How to Install AFE MACH Force XP Cat-Back 3.5in SS-409 Exhaust System w/ Black Tip on your F-150

Shop Parts in this Guide

Step 1: (Read Instructions prior to installation) Remove your stock exhaust up to the catalytic converter from the rear of your truck working your way forward. Take caution not to damage the factory hardware and isolation mounts as they will be reused.
It is recommended to not fully tighten the clamps until the entire system has been installed.


Step 2: For faster installation spread the pieces of the exhaust along side of your vehicle according to the diagram shown.


Step 3: Install mid-pipe using factory hardware.


Step 4: Slip band clamp over expanded end of mid-pipe/muffler assembly prior to installation.


Step 5: Utilizing the factory isolation mounts now install over-axle/tailpipe and tighten all band clamps from front to rear.


Step 6: Your installation is now complete. It is recommended to re-tighten all
exhaust components after 50-100 miles.
