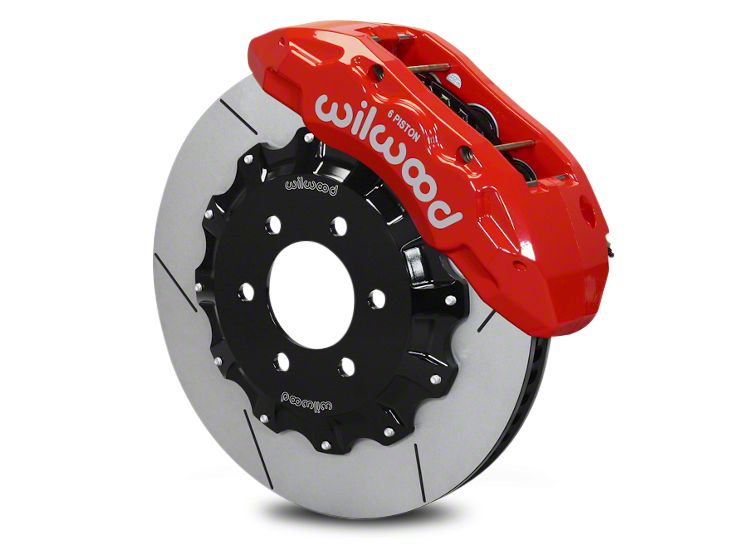

Wilwood Tactical Xtreme TX6R Front Big Brake Kit; Red Calipers (10-20 F-150)

Item T528266
Call a F150 Enthusiast at 1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Market Price $2,613.07 You Save 12% ($300.62)
Our Price

$2,312.45

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Video Review & Installation

      The Wilwood Tactical Xtreme front brake setup in red would be an awesome choice for the 2010 and newer truck owners out there looking to step up into a legitimate big brake kit for right around that $2,000 price point. Now, besides offering a sizable upgrade in hardware and stopping power, truck owners can also enjoy a little visual improvement behind your favorite set of 20-inch wheels or larger, thanks to the two-piece rotor design and burly six-piston calipers shown here in red.Now, traditionally, of course, brake installs are a walk in the park for most truck owners out there, however, this kit does involve some safety wire work which, if you're not familiar with that, can be a bit of a pain in the you know what. So, because of that, we are gonna kick this one up to a full three out of three wrenches on the difficulty meter and a few hours to complete from start to finish.So, Wilwood does make up one-third of my holy brake trinity, as I like to call it here on the site, the other two being, of course, Brembo and also Baer. Now, all three companies are gonna produce some killer components when looking to stop a little bit quicker and all three are certainly going to look a lot better than the factory stuff that you are replacing. And with that said, let's be completely honest here, guys, I'm willing to bet a good portion of truck owners out there who are genuinely interested in this kit are gonna be so for the aesthetic factor in addition to providing you with a solid bump in stopping power. And there's really nothing wrong with that as it's your truck, you can mod it however you like. But on the other hand, guys, if you are looking at the Wilwood Tactical Xtreme kit here for its sole purpose of pulling that big heavy truck down from speed a little bit more effectively, especially if you're doing some towing or have some big heavy wheel and tire upgrades installed, then hang out with me for a bit, guys, and let's break this kid down a little bit further.So, Wilwood actually develop the Tactical Xtreme TX6R front kit that we have here specifically for the truck, SUV, and armored vehicle market. And when designing this kit, they did so with extreme durability in line of course but also sustain high heat capabilities because, let's be honest, that's what you're mainly going to be concerned about when you're looking to get these big heavy trucks to stop not only quickly but also more consistently. In fact, they specifically engineered this kit to handle the stopping duties on trucks weighing up to about 14,000 pounds. So, obviously, a far cry from your run of the mill F-150, but good to know again for the guys out there who do a lot of heaving towing.Now the TX6R kit that we have here, guys, is gonna feature two big stars, in my opinion, the first of which are these massive two-piece 15-inch GT 60 curved in rotors, the second big star is no doubt these beautiful massive radial mount six piston calipers again, done up in red.Now, interestingly enough here, guys, the rotor material does feature a proprietary iron alloy material which is more carried over from the tech used in Wilwood's extreme duty military stuff. So, they don't just rebrand a kit from a Mustang or something like that and call it a day, they built this kit specifically with truck use in mind.Now, that two-piece rotor design is gonna be a lot lighter compared to your traditional one-piece cast-iron rotor.And another big draw with a two-piece design like this is that it will be crucial in helping heat dissipation, preventing all that excess heat from the brake and friction surface from transferring to the hubs and, more specifically, the wheel bearings on your rig. Now, that's due largely in part to the aluminum center section, here again, preventing a ton of heat from reaching that hub that we just mentioned, of course, but at the same time, it's also gonna help prevent or at least reduce some rotational mass in the process.And then you have these massive six-piston calipers providing you with a ton of clamping force, no doubt, in addition to just a very stout and strong build. Forged aluminum housing here, loaded with stainless steel pistons. Finally, high temp internal seals and everything is gonna be finished off in this gloss red powder coat as you can see. Looks really, really sharp when installed. But just a quick heads up, guys, if you want something a little less flashy per se, Wilwood is gonna make this same exact kit but offer the calipers done up in black if that's the look you're after instead. But aside from the big old two-piece rotors, flashy calipers, Wilwood also throws in some braided stainless steel lines for you guys here as you can see, and more importantly, their really, really capable BP-20 pad. Now this pad is gonna be a little bit more aggressive than their basic street pad, which is called their BP-10, gonna have a wider temp range, which again is really good for those heavier trucks doing a lot of towing.Now, it is important to point out, guys, in order to get these massive brakes from Wilwood onto your truck, you will need to run at least a 20-inch wheel or larger with this particular kit. For a lot of the big brake kits that is gonna be pretty much par for the course with the exception of an Alcon, for instance, where you can get away with a 17, but for the most part, if you want to go big with hardware, you have to increase your wheel diameter. Now, if you have a smaller wheel currently on your truck, you really don't want to get rid of those but you still are looking to make an upgrade to your braking capabilities, I would recommend checking out an aftermarket rotor and pad combo that utilize a factory size rotor but with even more aggressive pad as that will be your best bet without having to upgrade your wheels in the process.Switching gears, let's talk about the installation briefly here, guys, and again, we did kick this up to a full three out of three wrenches on the difficulty meter, not because brakes are tough per se but because again, there is some safety wiring involved in order to get your hat mounted and secured to the actual rotor itself. Now, safety wiring isn't brain surgery per se but it's also a little bit tricky if you've never done it, so give yourself a few hours from start to finish to get everything tackled in addition to bleeding the brakes once the install has been wrapped up.So, wrapping things up, guys, if you're looking for a very baller, big brake upgrade for that tow rig or daily driver and you already have a set of 20-inch wheels or larger, you might want to consider checking out the Wilwood TX6R kit right here at americantrucks.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Heavy Duty Braking Performance
      • Ideal for Street and Sport Applications
      • TX6R 6-Piston Aluminum Calipers
      • Durable Red Powder Coated Finish
      • 2-Piece 15" (380mm) GT 60 Curved Vane Rotors
      • Spec-37 Iron Construction with Aluminum Hat
      • BP-20 Smart Pad Compound - Low Dust
      • Direct Bolt-on Upgrade
      • Compatible with 2 Wheel and 4 Wheel Drive Models
      • Front Brake Kit
      • Fits 2010-2020 Ford F-150 Models with Factory Spindles

      Description

      Increased Braking Performance. When bringing your 5,000 lbs F-150 to a stop do you find that the factory brakes are just not doing their job? Then you should upgrade your rigs front brakes with a Tactical Xtreme TX6R Big Brake Kit for the ultimate in braking performance. Wilwood engineered their Tactical Xtreme TX6R Front Brake Kit for severe duty service on heavy duty trucks weighing up to 14,000 lbs which means you can confidently bring your F-150 to a stop when towing or hauling a large load.

      TX6R Brake Calipers. Wilwood's TX6R radial mount six piston brake calipers are forged from aluminum for lightweight and superior strength. These TX6R calipers feature stainless steel pistons with high-temp internal bore seals for dependable braking performance. Wilwood completes their brake calipers in a durable gloss red powder coated finish for sporty good looks and long lasting corrosion protection.

      GT 60 Curved Vane Rotors. Wilwood's GT 60 Curved Vane Spec-37 Rotors are precision machined from a proprietary iron alloy that was derived from the materials and technology used to develop extreme duty spec rotors for the military. GT 60 directional rotors feature an asymmetrical slotted pattern and a vented design for increased cooling capacity and long service life. Being a two piece rotor Wilwood includes aluminum hats that are machined in a flared bell ribbed configuration for high strength and minimum weight.

      Smart Pad BP-20 Brake Pads. The included Smart Pad high-performance brake pads are manufactured with a high-friction, sintered metallic compound. This metallic friction material ensures confident stopping power, at all temperature ranges, during medium to heavy-duty braking applications. In addition to better performance, these Smart Pads also provide aggressive pedal feel without the harsh noise or dust levels commonly associated with high metallic based brake pads.

      Direct Fit Bolt-on Upgrade. Wilwood designed their Tactical Xtreme Front Brake Kit to be a direct fit replacement upgrade for your F-150’s factory caliper and rotors. Using basic hand tools, this Big Brake Kit can be install in about 3-4 hours with no modifications required.

      Front Brake Upgrade Kit. Wilwood's Tactical Xtreme Front Brake Kit includes TX6R 6-Piston calipers, high performance BP-20 brake pads, two piece 15" GT 60 Curved Vane Rotors, braided stainless steel brake lines and all the hardware required for a straight forward bolt-on installation.

      Application. This Wilwood Tactical Xtreme TX6R Red Front Brake Kit is designed to fit all 2010-2020 F-150s including both 2-wheel drive and 4-wheel drive models with the factory spindles installed.

      Application Note. This 6-Piston Wilwood Front Brake Kit requires the use of 20" diameter or larger rims for proper clearance.

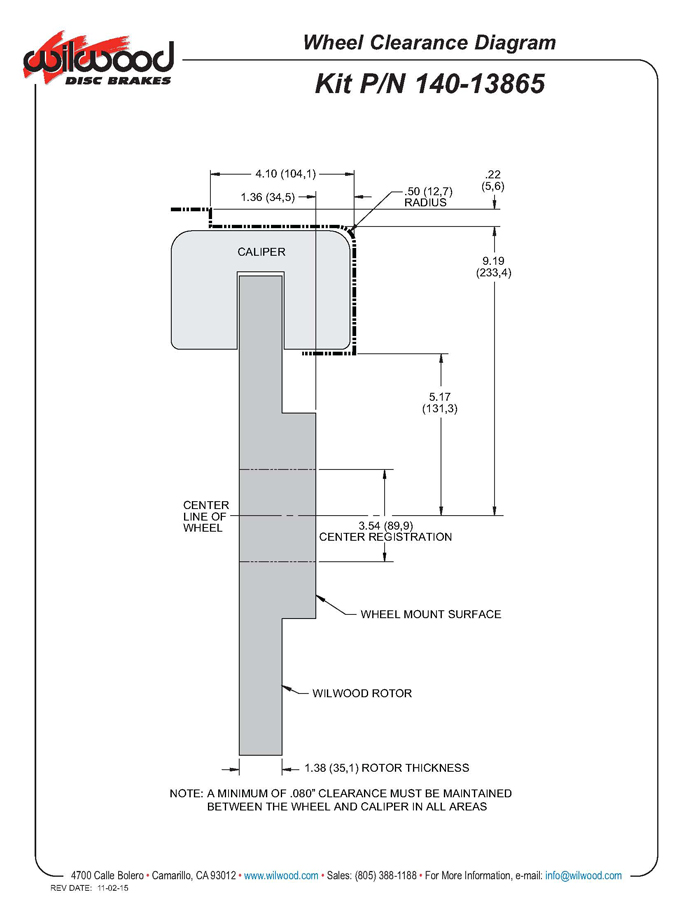

      Wheel Fitment Note. If you want to check to see if your front wheels will fit with the Wilwood Brake Kit, please see Wilwood's Wheel Clearance Diagram. Click Here.

      Shop All Truck Parts And Accessories

      Shop All Truck Big Brake Kits

      Shop All Truck Brakes

      Fitment: 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020

      Wilwood 140-13865-R

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (2) Bracket, Caliper Mounting
      • (4) Bolt, M16-2.00 x 45mm, Hex Head
      • (4) Washer, .640 I.D. x 1.188 O.D. x .063 Thick
      • (12) Shim, .024 Thick
      • (2) Rotor, GT - 1.38” x 15.50” Dia, 12 x 10.25” Bolt Circle (one each, right and left)
      • (2) Hat Big Brake, 6 x 5.315, .700 Offset, 12 x 10.25" Bolt Circle
      • (24) Bolt, 5/16-18 x 1.00 Long, Hex Head
      • (24) Washer, .328 I.D. x .562 O.D. x .063 Thick
      • (2) Caliper, TX6R
      • (4) Nut, 1/2-20, Self-Locking 12 Point
      • (4) Washer, .515 I.D. x .875 O.D. x .063 Thick
      • (4) Stud, 1/2-13 x 1/2-20 x 3.98 long (pre installed in bracket)
      • (12) Shim, .032 Thick
      • (1) Pad, BP-20 Compound, Axle Set
