Installation Time
(approx) a Day
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Sierra 3500 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Rough Country 5-Inch NTD Suspension Lift Kit with V2 Monotube Shocks (11-19 Sierra 3500 HD SRW, Excluding Denali)
Item SHG1011
Sierra 3500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price
$1,819.95 (kit)
FREE Shipping Market Price $2,092.99 You Save 13% ($273.04) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit - 5-inch Lift
- NTD - Non-torsion Drop Design
- Corrects Factory Rake for a Level Stance
- Increases Ground Clearance for Improved Off-Roading
- V2 Monotube Shocks
- Lifted Steering Knuckles
- Fabricated Steel Lift Blocks
- Front and Rear Crossmember
- Accommodates up to 35-inch Tires
- Not Compatibly with Factory Wheels
- Fits 2011-2019 GMC Sierra 3500 HD SRW Models, Excluding Denali
| Brand | Rough Country |
| Lift Height | 5.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Improve Your Off-Roading Experience. Off-roading can be tough on your 3500 HD Sierra’s stock suspension, that's why you need a lift kit that was specifically designed to take on the great outdoors. Luckily, this Rough Country Suspension Lift Kit features a non-torsion drop design that keeps everything tucked up for increased ground clearance allowing you to drive over boulders, fallen logs, and other obstacles found on the trail. With 5-inches of lift, this kit can accommodate tires up to 35 x 12.5 in size mounted on 22-inch wheels. This Lift Kit features lifted steering knuckles as well as fabricated steel lift blocks. What’s more, the included V2 Monotube Shocks provide a highly comfortable ride, even when tested across rough terrain.
V2 Monotube Shocks. The included nitrogen-charged V2 Monotube shocks are built with a T6061 brushed aluminum body and boast a 36kN tensile strength. They also feature an internal floating piston, as well as a 46mm high-flow piston. Thanks to their high-quality construction, they’re capable of dissipating heat at a fast rate and provide a consistent road damping performance all year round.
Lifted Steering Knuckles. Rough Country includes a set of heavy duty replacement steering knuckles in their 5-inch Suspension Lift Kit. These lifted steering knuckles are manufactured from iron for superior strength. The knuckles are designed to increase ride height while keeping all components at the optimum angles for a factory-like ride.
Fabricated Lift Blocks. The fabricated Rear Lift Blocks include in this Rough Country Lift Kit have been laser cut, CNC formed and welded from high grade steel for superior strength and extra rigidity. The components are then completed in a durable black powder coat finish for long lasting corrosion resistance.
Skid Plate and Crossmembers. Both the front and rear crossmembers and skid plate are constructed from steel plate for superior strength. The skid plate will protect the front differential from rocks and obstacles, while the crossmembers will provide additional strength to the chassis.
No Welding Required. Rough Country engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that cutting and drilling is required for installation. With all the necessary hardware included, this Lift kit can be installed in about 8 to 10 hours time, so you'll be back on the road in a day. An alignment will be required after installation.
Application. This Rough Country 5-Inch NTD Suspension Lift Kit with V2 Monotube Shocks is designed to fit 2011-2019 GMC Sierra 3500 HD SRW models, excluding Denali. Does not fit dually models or models equipped with Magnetic Ride Control. Gas models may require modification to the exhaust for driveshaft clearance. Factory rear overload springs will need to be removed if so equipped.
V2 Monotube Shocks. The included nitrogen-charged V2 Monotube shocks are built with a T6061 brushed aluminum body and boast a 36kN tensile strength. They also feature an internal floating piston, as well as a 46mm high-flow piston. Thanks to their high-quality construction, they’re capable of dissipating heat at a fast rate and provide a consistent road damping performance all year round.
Lifted Steering Knuckles. Rough Country includes a set of heavy duty replacement steering knuckles in their 5-inch Suspension Lift Kit. These lifted steering knuckles are manufactured from iron for superior strength. The knuckles are designed to increase ride height while keeping all components at the optimum angles for a factory-like ride.
Fabricated Lift Blocks. The fabricated Rear Lift Blocks include in this Rough Country Lift Kit have been laser cut, CNC formed and welded from high grade steel for superior strength and extra rigidity. The components are then completed in a durable black powder coat finish for long lasting corrosion resistance.
Skid Plate and Crossmembers. Both the front and rear crossmembers and skid plate are constructed from steel plate for superior strength. The skid plate will protect the front differential from rocks and obstacles, while the crossmembers will provide additional strength to the chassis.
No Welding Required. Rough Country engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that cutting and drilling is required for installation. With all the necessary hardware included, this Lift kit can be installed in about 8 to 10 hours time, so you'll be back on the road in a day. An alignment will be required after installation.
Application. This Rough Country 5-Inch NTD Suspension Lift Kit with V2 Monotube Shocks is designed to fit 2011-2019 GMC Sierra 3500 HD SRW models, excluding Denali. Does not fit dually models or models equipped with Magnetic Ride Control. Gas models may require modification to the exhaust for driveshaft clearance. Factory rear overload springs will need to be removed if so equipped.
Fitment:
- 2011 GMC Sierra 3500
- 2012 GMC Sierra 3500
- 2013 GMC Sierra 3500
- 2014 GMC Sierra 3500
- 2015 GMC Sierra 3500
- 2016 GMC Sierra 3500
- 2017 GMC Sierra 3500
- 2018 GMC Sierra 3500
- 2019 GMC Sierra 3500
Rough Country 26070
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

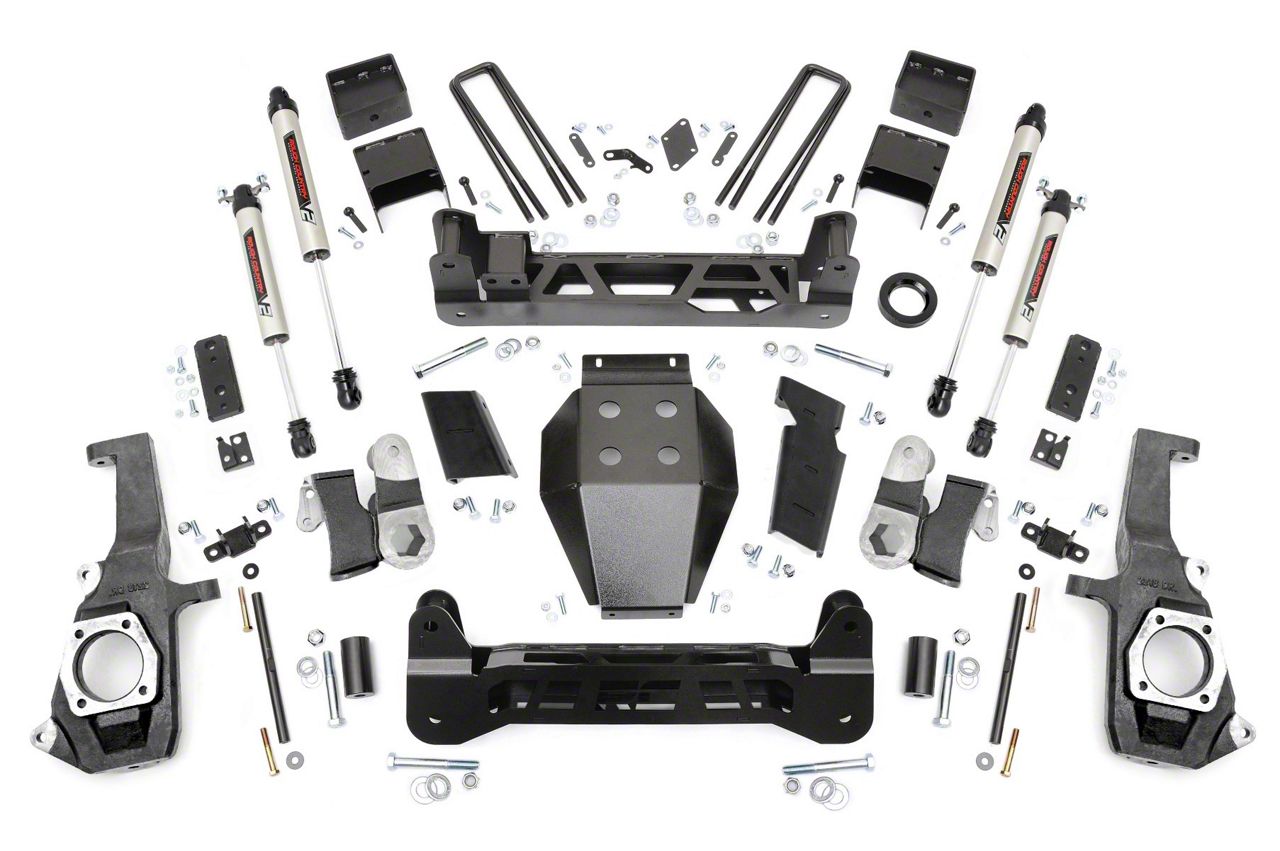

What's in the Box
- Lifted knuckles
- Front Crossmember
- Rear Crossmember
- Differential Drop Brackets
- Differential Skid Plate
- Non-torsion Bar Drop Brackets
- Sway-bar Link Extensions
- Sway-bar Brackets
- Upper Shock Brackets
- Brake Line Relocation Bracket
- Lift Blocks
- U-Bolts
- Bump-stop Brackets
- Brake Line Brackets
- E-brake Line Bracket
- Hardware
- (4) V2 Monotube Shock Absorbers
4.8
Customer Reviews (418)
Questions & Answers
10 More Questions
Will It Fit My Sierra 3500
- 6.0L V8 - 11, 12, 13, 14, 15, 16, 17, 18, 19
- 6.6L V8 Duramax - 11, 12, 13, 14, 15, 16, 17, 18, 19
