ReadyLIFT 3.50-Inch Front / 2-Inch Rear Tubular Arm SST Suspension Lift Kit with SST3000 Shocks (11-19 Sierra 3500 HD)
Item SHG9075
Sierra 3500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price
$1,529.95 (kit)
FREE Shipping Market Price $1,759.99 You Save 13% ($230.04) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit - 3.5-inch Front / 2-inch Rear
- Increases Ground Clearance for Improved Off-Roading
- SST3000 Series Shocks
- Tubular Upper Control Arms
- Forged Torsion Leveling Keys
- Heavy Duty Tie Rod Assemblies
- Fabricated Steel Rear Lift Blocks
- Differential Drop Spacers
- Accommodates up to 34-inch Tires
- Bolt-on Installation
- Fits 2011-2019 GMC Sierra 3500 HD Models
| Brand | ReadyLIFT |
| Lift Height | 3.50 Inch |
| Lift Kit Type | Torsion Key Lift |
| Lift Kit Max Tire Size | 34 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Lifted Stance. Add a commanding, lifted off-road stance to your 2011-2019 3500 HD GMC Sierra by upgrading to a ReadyLIFT SST Suspension Lift Kit that includes SST3000 Shocks. With 3.50 inches of lift front and 2 inch rear, this kit can accommodate tires up to 34-inches in size allowing you to conquer any trail. This ReadyLIFT SST Suspension Lift Kit features tubular upper control arms, forged torsion leveling keys, heavy duty tie rod assemblies, differential drop spacers as well as rear lift blocks. What’s more, the included SST3000 Series Shocks will provide a highly comfortable ride, even across the roughest terrain.
Tubular Upper Control Arms. ReadyLIFT fabricates their Control Arms from heavy-duty, tubular steel for superior strength and durability. The heavy-duty ball joints help to maintain a factory driving experience while taking a beating. These Control Arms are designed and built with a modified cup angle which correctly positions the ball joint for lifted applications.
SST3000 Series Shocks. Manufactured using a nitrogen charged twin-tube design, the included ReadyLIFT SST3000 Shocks feature a 5/8-inch hard chrome plated shaft. The two-stage sealing system effectively keeps dirt out and oil in for quicker rebound and smoother compression during the shock cycle. ReadyLIFT SST3000 Shocks feature an outer steel housing that is completed in durable black finish for impressive good looks.
Forged Torsion Leveling Keys. Vehicle specific lift-oriented ReadyLIFT forged torsion keys provide an adjustable lift while maintaining factory ride quality. These super strong forged torsion keys are much stronger than the stock units with the same design and feature an indexing that is unique to this ReadyLIFT kit.
Rear Lift Blocks. Rear lift is obtained with the use of 2-inch blocks and u bolts. These OE-style lift blocks are fabricated from cast iron for superior strength. The included longer u-bolts and fasteners allow for a straight forward installation.
Differential Drop Spacers. This Lift Kit also includes CNC-machined differential drop spacers which lowers the differential and puts the front CV axles into a safe factory angle on 4WD trucks. Please note that 2WD models will not use the differential drop spacers.
Heavy Duty Tie Rod Assemblies. Also included with this ReadyLIFT kit are new super strong tie-rod end assemblies to replace the weak factory versions. For the longest time, GM tie rod assemblies have been a weak link on all GM trucks. These heavy duty steering assemblies install easily and incredibly stronger than the OEM units.
Bolt-on Installation. ReadyLIFT designed their SST Suspension Lift Kit to be a straight forward bolt-on install with no cutting or welding required. With all the necessary hardware included, this Lift Kit can be installed in about 8 hours time - professional installation is recommended. Please note that an alignment is required after installation.
Application. This ReadyLIFT 3.50-Inch Front / 2-Inch Rear Tubular A-Arm SST Suspension Lift Kit with SST3000 Shocks is designed for 2011-2019 GMC Sierra 3500 HD models.
Fitment:
- 2011 GMC Sierra 3500
- 2012 GMC Sierra 3500
- 2013 GMC Sierra 3500
- 2014 GMC Sierra 3500
- 2015 GMC Sierra 3500
- 2016 GMC Sierra 3500
- 2017 GMC Sierra 3500
- 2018 GMC Sierra 3500
- 2019 GMC Sierra 3500
ReadyLIFT 69-3522
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

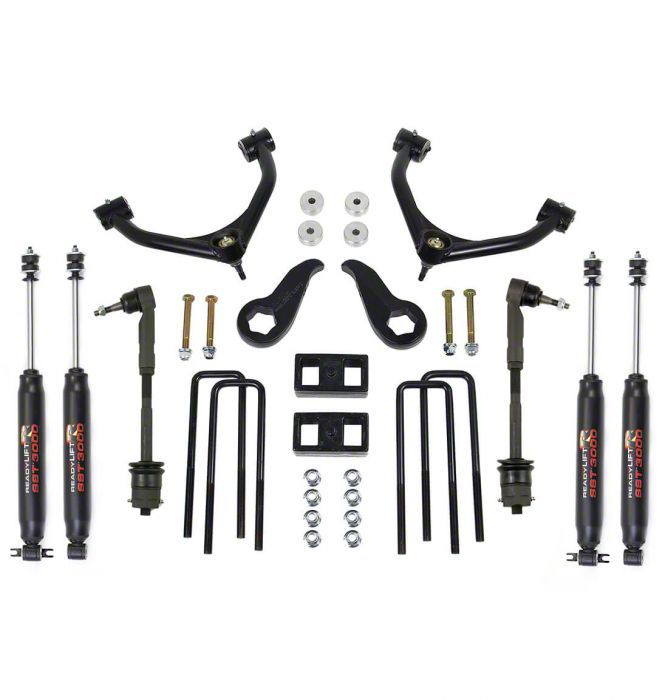

What's in the Box
- (2) Tubular Upper Control Arms
- (2) Forged Torsion Leveling Keys
- (4) Differential Drop Spacers
- (2) Heavy Duty Tie Rod Assemblies
- (2) OEM Style Cast Iron Rear Lift Blocks with Longer U-bolts
- (4) SST3000 Shocks
