Find Shocks & Struts for your Ram 2500

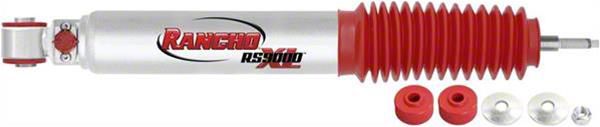

Rancho RS9000XL Front Shock for 4 to 5-Inch Lift (03-09 4WD RAM 2500)Find parts that fit my vehicle

Item HR31399
Product Image
281 Reviews
Our Price

$158.13 each

Military, Medical & First Responders $7.91 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Nine Position Manually Adjustable Ride Control For Customized Damping Control And Firmness
      • Ideal For Stock Or Lifted Trucks, SUVs, And Jeeps That Tow, Haul Or Go Off Road
      • First Nine Position Manually Adjustable Shock Series In The Off-Road Market
      • Nitrogen Gas Pressurized To 120 PSI To Minimize Air-To-Oil Mixture And Reduce Damping Performance Fade And Foaming
      • 18mm Nitro-Carburized Piston Rod To Resist Scuffs And Corrosion
      • Double-Welded Loops At Stress Areas For Enhanced Structural Integrity
      • 1.25-Inch Sintered Iron Piston
      • Up To 2.75-Inch Tri-Tube Body Filled With All-Weather Fluid
      • Polyurethane Rebound Bumper And Bushings With Graphite-Filled Fluon-Banded Piston For Smooth Performance
      • Low-Friction, Self-Lubricating Seal For Quicker Rebound And Smoother Compression
      • Liquid Metallic Finish And Polyvinyl Protective Boot For Longer Life
      • Includes Mounting Hardware
      • Telescopic Type Shock Absorber
      • Silver Color
      • Loop Bushing And Sleeve Lower Mount With 9/16-Inch Sleeve ID X 1.5/8-Inch Sleeve OAL
      • Stem Mount Upper Mount With 2 5/8-Inch Stem Length X 1/2"-13 Thread Pitch
      • 2.38-Inch Body Diameter
      • 15.95-Inch Compressed Length
      • 8.65-Inch Shock Stroke
      • 0.709-Inch Rod Diameter
      • Manual Damping Adjustment Type
      • Progressive Valving
      • Rubber Dust Shield Included
      • Steel Body And Cylinder Material
      • Shock Absorber Rod End Measuring Point At Center Of Loop
      • Shock Absorber Body End Measuring Point At Base Of Stem
      • Hand Painted Silver Finish
      • Tri-Tube Internal Construction
      • Gas Charged
      • Shaft Material Nitrocarburized
      • Includes Rebound Adjustment
      • Does Not Include Coil Over Springs
      • Does Not Include Remote Reservoir
      • Does Not Include Air Adjustability
      • Does Not Include Bladders Or Strut Mount Insulators
      • Does Not Feature Hydraulic Lockout, Adjustable Ride Height, Self-Leveling Or Active Suspension
      • Includes Bump Stop
      • Shock Absorber Bore Size 1.26 Inch (32 mm)
      • Shock Stroke 8.65 Inch (219.7 mm)
      • Fits 03-09 4WD RAM 2500 With 2.0-2.5 Inch Front Raised Height, Rancho Suspension System Installed, Use To Depletion, Then Use RS994044

      Description

      Premium Adjustable Suspension. The Rancho RS9000XL Front Shock for 4 to 5-Inch Lift is engineered to provide unparalleled control and performance for lifted trucks and SUVs. This shock absorber features nine manual adjustment settings, enabling users to fine-tune damping firmness for both on-road comfort and off-road capability. It is essential for vehicles requiring adaptability to varying terrain and load conditions.

      Construction and Appearance. Built with a durable 18mm nitro-carburized piston rod and a heavy-duty 1.25-inch sintered iron piston, the shock offers exceptional strength and resistance to corrosion and wear. The body features a robust 2.38-inch diameter tri-tube design filled with all-weather fluid that ensures consistent performance across extreme temperatures. Finished with a liquid metallic coating and protected by a polyvinyl boot, it combines longevity with a sleek silver appearance.

      Installation. Installation of this shock absorber is straightforward, designed for those with moderate mechanical skills and requiring no custom drilling. It includes all necessary mounting hardware for a direct replacement fit, facilitating a seamless swap with factory components.

      Warranty. This product is backed by a limited lifetime warranty, providing confidence in quality and durability.

      Application. Specifically designed for 03-09 4WD RAM 2500 trucks equipped with a 2.0-2.5 inch front lift and having Rancho suspension systems installed. Intended to be used until depletion of existing shocks followed by replacement with a compatible model RS994044.

      Rancho RS999044

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Front Shock for Stock Height

      4.7

      Customer Reviews (281)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 2500

      • 5.7L V8 - 03, 04, 05, 06, 07, 08, 09
      • 5.9L I6 - 03, 04, 05, 06, 07, 08, 09
      • 6.7L I6 - 07, 08, 09
      • 8.0L V10 - 03
