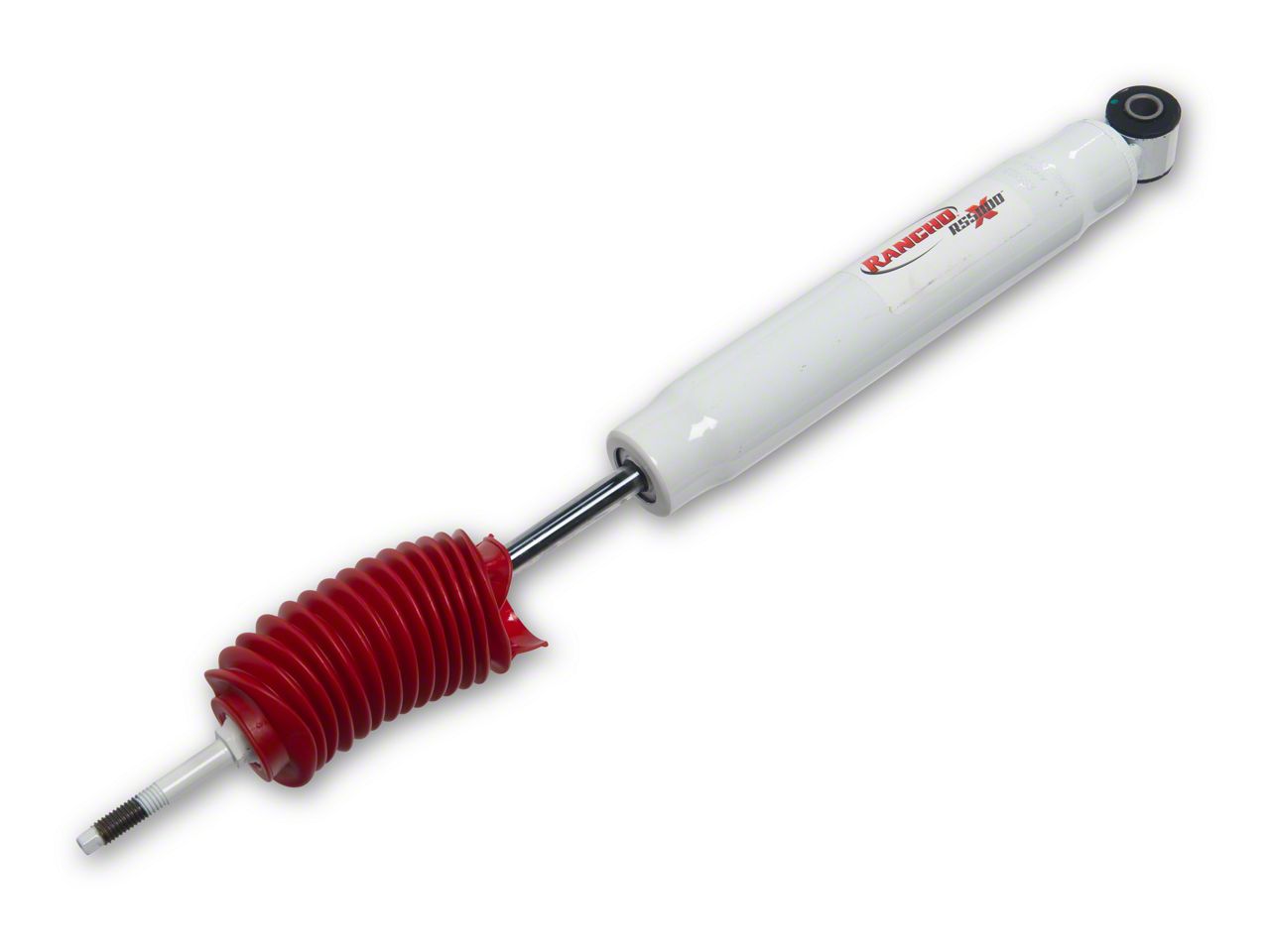

Rancho RS5000X Front Shock for Stock Height (03-12 4WD RAM 2500)Find parts that fit my vehicle

Item HR24943
Product Image
280 Reviews | 1 Answers
Our Price

$70.30 each

Military, Medical & First Responders $3.52 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

    Frequently Bought Together

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Unique Exclusive Valving System and Advanced Compression Functionality
        • _x000D_
      • Cross Tuned Technology with Rebound Valving Improves On and Off Road Handling
        • _x000D_
      • Progressive Engagement Valving Reduces Initial Impacts at Low Speeds
        • _x000D_
      • 16mm Nitro-Carburized Piston Rod for Scuff and Corrosion Resistance
        • _x000D_
      • Double-Welded Loops at Stress Areas Enhance Durability
        • _x000D_
      • 35mm Sintered Iron Piston Provides Enhanced Structural Integrity
        • _x000D_
      • Polyvinyl Protective Boot Included
        • _x000D_
      • Large Twin-Tube Body Filled with All-Weather Fluid for Cooler Operation
        • _x000D_
      • Operates Between Temperatures of Minus 40 to 248 Degrees Fahrenheit
        • _x000D_
      • Polyurethane Rebound Bumper and Rubber Bushings Absorb Ride Harshness
        • _x000D_
      • Fluon-Banded Piston Enhances Responsiveness to Road Conditions
        • _x000D_
      • Nitrogen Gas Pressurized to 150 PSI Reduces Damping Performance Fade
        • _x000D_
      • Custom-Tuned Compression Control Valve Regulates Fluid Transfer to Absorb Impacts
        • _x000D_
      • Low-Friction Self-Lubricating Seal Retains Gas and Oil for Smooth Motion
        • _x000D_
      • Application-Specific Piston Controls Shock Motion Due to Expanded Piston Area
        • _x000D_
      • Limited Lifetime Warranty Included
        • _x000D_
      • Mounting Hardware Included
        • _x000D_
      • Telescopic Type Shock Absorber
        • _x000D_
      • White Painted Finish
        • _x000D_
      • Body Diameter 2.25 Inches with Twin Tube Internal Construction
        • _x000D_
      • Extended Length 23.63 Inches
        • _x000D_
      • Compressed Length 14.59 Inches
        • _x000D_
      • Shock Stroke 9.04 Inches
        • _x000D_
      • Lower Mount Loop Bushing with 14mm Sleeve ID
        • _x000D_
      • Upper Mount Stem with 2.625 Inch Stem Length and 1/2-13 Thread Pitch
        • _x000D_
      • Gas Charged
        • _x000D_
      • Boot Included
        • _x000D_
      • Steel Body and Cylinder Material
        • _x000D_
      • Nitrocarburized Shaft Material
        • _x000D_
      • Fits 03-12 4WD RAM 2500 with SLT, ST, Laramie, Outdoorsman, Laramie Longhorn, Big Horn, Lone Star, and Tradesman Trims. Front Position, Stock Height, Without Front Raised Height.
        • _x000D_

      Description

      Advanced Suspension Performance. The Rancho RS5000X Front Shock for Stock Height is engineered to enhance vehicle handling and improve ride comfort on both on-road and off-road conditions. This shock absorber optimizes compression and rebound control, resulting in superior stability and smoothness for daily driving and trail excursions.

      _x000D__x000D_

      Construction and Appearance. Constructed with a durable 16mm nitro-carburized piston rod and a 35mm sintered iron piston, this shock combines strength with corrosion resistance. Its large twin-tube steel body is finished in a protective white paint, and it features a polyvinyl protective boot to ensure longevity under harsh environmental conditions.

      _x000D__x000D_

      Installation. Installation of this shock absorber is straightforward and requires no drilling, making it an accessible upgrade for experienced DIYers and professionals alike.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, providing assurance in both material and workmanship.

      _x000D__x000D_

      Application. Designed specifically to fit the 2003 to 2012 4WD RAM 2500 models equipped with SLT, ST, Laramie, Outdoorsman, Laramie Longhorn, Big Horn, Lone Star, and Tradesman trims at the front position with stock ride height and no front lift.

      Rancho RS55221

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Front Shock

      4.7

      Customer Reviews (280)

      Questions & Answers (1)

      Post Your Question

      Will It Fit My Ram 2500

      • 5.7L V8 - 03, 04, 05, 06, 07, 08, 09, 10, 11, 12
      • 5.9L I6 - 03, 04, 05, 06, 07, 08, 09
      • 6.7L I6 - 07, 08, 09, 10, 11, 12
      • 8.0L V10 - 03
