Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

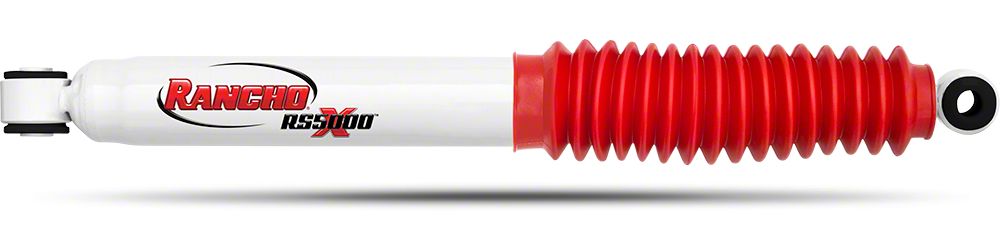

Rancho RS5000X Rear Shock for 5.50-Inch Lift (17-26 4WD F-350 Super Duty SRW)Find parts that fit my vehicle
Item SSD15080
Our Price
$70.30
Military, Medical & First Responders
$3.52 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Featuring a Unique, Exclusive Valving System and Advanced Compression Functionality to Improve On- and Off-Road Handling
- Cross Tuned Technology with an Exclusive Rebound Valving System and Advanced Compression Phase for Enhanced Overall Handling and Performance
- Custom-Tuned Progressive Engagement Valving for Each Vehicle to Reduce Initial Impacts at Low Speeds and Minimize Ride Harshness
- 16mm Nitro-Carburized Piston Rod for Enhanced Resistance to Scuffs and Corrosion
- Double-Welded Loops in High-Stress Areas for Added Strength
- 35mm Sintered Iron Piston Ensures Enhanced Structural Integrity, Protected by a Polyvinyl Boot
- Large Twin-Tube Steel Body Filled with All-Weather Fluid Enables Cooler Operation and Maintains Performance in Temperatures Ranging from -40°F to 248°F
- Polyurethane Rebound Bumper and Rubber Bushings Help Absorb Ride Harshness
- Fluon-Banded Piston Improves Responsiveness to Changing Road Conditions for a Smoother Ride
- Nitrogen Gas Pressurized to 150 PSI Minimizes Air-to-Oil Mixture, Reducing Damping Fade and Foaming
- Custom-Tuned Compression Control Valve Regulates Fluid Transfer to Absorb Impacts Without Disc Flutter, Maintaining Effective Shock Motion Control
- Low-Friction, Self-Lubricating Seal Retains Gas and Oil for Faster Rebound and Smoother Compression
- Application-Specific Piston Delivers Enhanced Control Due to Increased Piston Area
- Comes with a Limited Lifetime Warranty
- Fits 2017-2026 4WD Ford F-350 Super Duty SRW Models with Single Rear Wheels, Rear Position, and Rear Raised Heights Between 2.0 to 5.0 Inches Depending on Year
| Brand | Rancho |
| Shock Type | Non-Adjustable |
| Shock Lift Height | 5.50 Inch |
Description
Advanced Suspension Performance. The Rancho Rear RS5000X RS55036A Suspension Shock Absorber enhances vehicle handling both on and off the road by uniquely tuning rebound and compression phases. Designed to minimize impacts and ride harshness, it supports a more controlled and comfortable driving experience.
Construction and Appearance. Built with a 16mm nitro-carburized piston rod for superior corrosion resistance, this shock features a durable 35mm sintered iron piston and a large twin-tube steel body filled with all-weather fluid to ensure reliable operation in extreme temperatures. The shock absorber is finished with a white painted exterior and includes polyvinyl protective boots and rubber bushings for longevity and smooth performance.
Installation. Installation is straightforward, fitting directly without the need for drilling or modifications. It is suitable for professional installers or experienced automotive enthusiasts familiar with suspension components.
Warranty. This shock absorber includes a limited lifetime warranty, offering long-term coverage and peace of mind.
Application. Specifically designed for 2017-2026 4WD Ford F-350 Super Duty SRW models with single rear wheels, suitable for rear suspension positions and accommodating rear lift heights from 2.0 to 5.0 inches depending on the year and configuration.
Rancho RS55036A
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) RS5000X Rear Shock
4.7
Customer Reviews (291)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-350
- 6.2L V8 - 17, 18, 19, 20, 21, 22
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
- 6.8L V8 - 23, 24, 25, 26
- 7.3L V8 - 20, 21, 22, 23, 24, 25, 26
