Adjustable Track Bar, Drag Link and Tie Rod for 0 to 4-Inch Lift (94-99 4WD RAM 2500)Find parts that fit my vehicle

Application

• Compatible with Dodge Ram 2500 4WD 8-Lug 1994-1999
• Compatible with Dodge Ram 3500 4WD 8-Lug 1994-1999

Specification

• Material: Steel
• Surface Finish: Powder coated
• Lift Height: 0"-4" Lift
• Length Adjustable Range:
  • Adjustable Drag Link Bar: 1542-1630mm/60.7"-64.1"
  • Adjustable Tie Rod Bar: 870-966mm/34.5"-38"
• Track bar:
  • Rod thickness: φ35
  • Rod Length: 870mm
  • Eye-to-eye length range: MIN: 925mm / MAX: 1025mm

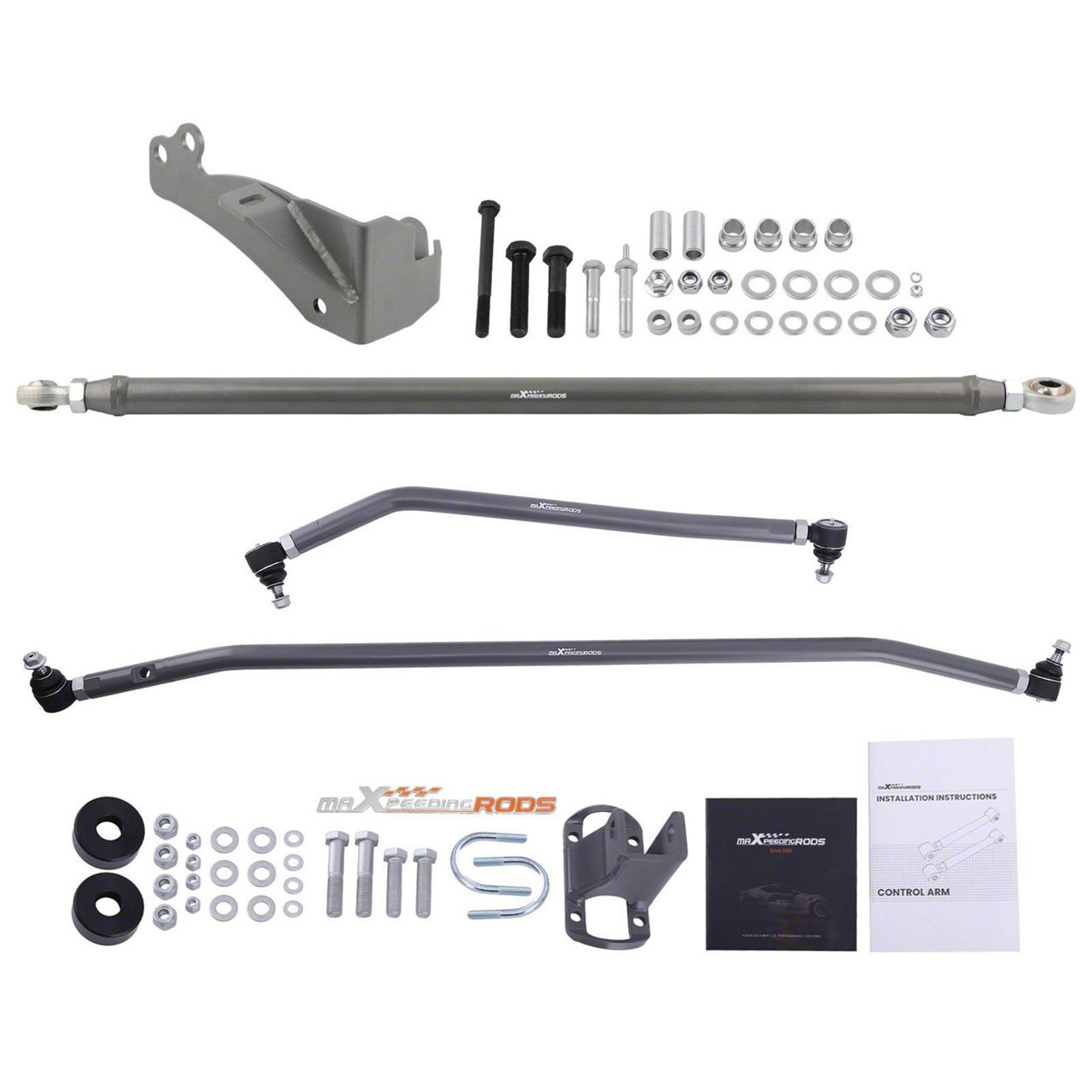

Package Includes

• 1x Heavy Duty Carbon Steel Adjustable Track Bar
• 1x Bracket (6mm thickness)
• 5x Bolts (1x combination bolt / 4x hexagon head bolts)
• 2x Bushings
• Several gaskets
• 1x Adjustable Drag Link Bar
• 1x Adjustable Tie Rod Bar
• 1x Tie Rod Stabilizer Clamp and required hardware

Feature

• This heavy-duty steering kit is larger, stronger, and a bolt-on replacement for the stock steering. No drilling or reaming of the knuckle is required.
• Adjustable straps allow you to precisely center your shafts under your vehicle. This improves drivability, comfort, and handling.
• Fine adjustment threads enable precise axle positioning.
• Constructed with extremely strong tube construction, powder coated steel, for correct geometry and clearance.
• Variable length design properly aligns axle housing with chassis and prevents undue stress on related components.
• Easy installation for maximum driving comfort.

Note

• This is an aftermarket replacement part. It can only be installed with a bracket. The hole position of the bracket needs to be drilled separately.
• Please feel free to contact us for whatever we can help with.
• Professional installation is highly recommended.
