Find Throttle Enhancement for your Ram 2500

Pacbrake PH+ PowerHalt Electronic Air Shut-off Valve Kit (07-09 6.7L RAM 2500)Find parts that fit my vehicle

Item HR25514
Product Image
Our Price

$1,125.95 each

Military, Medical & First Responders $56.30 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Diesel Engine Runaway Can Happen Whenever Your Engine Sucks In Flammable Particles Such As Gas And Oil Vapors In The Air Or Even Grain Dust
      • Controls The Electronic Throttle Body In The Intake Manifold Found On Most Late Model Diesel Engines
      • Closes Off The Air Supply In Emergency Situations Protecting Your Life Your Livelihood And Your Vehicle
      • Electronically Controlled Emergency Engine Shut Down System Forces Engine Shut Down By Blocking Engine’s Air Intake Path
      • Automatic Shutdown Achieved By Actuating Engine’s Existing Electronic Throttle Unit If Engine Speed Exceeds Pre-Set Speed Or Manually Via Toggle Switch
      • Valve Electronically Returns To Open Position After Emergency Engine Shutdown While Providing Operator Feedback Via Illuminated Switch
      • Reliable And Safe Emergency Shut Down For Diesel Engines With Electronic Throttle Body Automatically Via Overspeed Signal Or Manually Via Toggle Switch
      • Valve Remains Closed For Minimum 15 Seconds After Tripping And Holds Closed Until Removal Of Shut-Down Signal
      • Capable Of Shutting Down At A Secondary Trip Speed For Special Applications Such As Protection Of PTO Equipment Or As An Anti-Theft Device
      • In-Cab Switch For Manual Shutdown Included
      • Auto Resets After Shutdown
      • Switch Light Illuminates When Valve Is Closed Indicating System Activation
      • Valve Will Electronically Reset And Switch Light Will Extinguish Upon Removal Of Engine Shut-Down Signal
      • Secondary Trip Speed Provides Ground To Engage Second Emergency Shut-Down Speed For Auxiliary Equipment Or Theft Prevention
      • Secondary Trip Speed Applies 5 Second Grace Period When Lowering Trip Speed To Allow Engine Speed Reduction
      • Plug & Play Installation With Factory Connectors And Pre-Built Wiring Harness
      • Kits Can Be Installed In 60 Minutes Or Less
      • Easily Removable
      • Fully Automatic Operation With Manual Override
      • Easily Changes Between Multiple Built-In Shut-Off Speeds
      • Will Not Set ECM Trouble Codes
      • IP67 Rated Seal Against Water Ingress

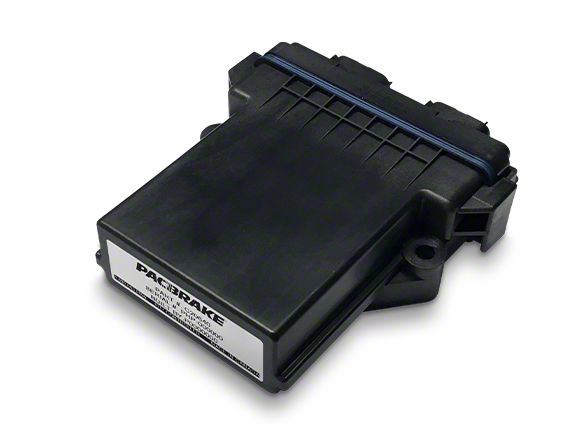

      • Includes PH+ PowerGuard Controller Application Specific Harness Power/Switch Harness Toggle Switch Assembly Tie Straps Self-Tapping Screws
      • Controller Voltage Battery Voltage 12 VDC Nominal 9 – 14 VDC
      • Seal Rating IP67 IP69K
      • Ambient Temperature Range -40°C To +85°C -40°F To +185°F
      • Vibration 8 Grms
      • Valve Activation Duration 15 Seconds Minimum
      • Current Consumption Idle 17.5 mA @ 12 VDC
      • Current Consumption Activation 9.5 A Max @ 14 VDC
      • PTO Input Signal Secondary Activation Signal Ground
      • Installation Torque 1.13 To 1.36 Nm 10 To 12 In-Lbf
      • Fits 07-09 6.7L RAM 2500

      Description

      Emergency Engine Protection. The Pacbrake PH+ PowerHalt Electronic Air Shut-off Valve Kit is designed to safeguard diesel engines from runaway conditions by quickly shutting down the engine's air supply. It operates by controlling the electronic throttle to block airflow when an overspeed condition is detected or via manual activation, preventing engine damage or hazardous situations.

      Construction and Appearance. The system features a durable PH+ PowerGuard controller sealed to IP67 and IP69K standards for water and dust resistance. It includes precision-engineered components with robust electrical harnesses and a toggle switch assembly, designed for a professional and functional fit within the vehicle’s cabin and engine compartment.

      Installation. Installation is straightforward with a plug-and-play design using factory connectors and pre-built wiring harnesses. Most users can complete installation within 60 minutes without the need for drilling or specialist tools.

      Warranty. This product is backed by an industry leading two-year warranty, ensuring dependability and peace of mind.

      Application. Designed specifically to fit the 2007 to 2009 Dodge RAM 2500 with the 6.7L Cummins diesel engine, providing targeted protection for this vehicle model and engine configuration.

      Pacbrake C50317A

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • PH+ PowerGuard Controller
      • PowerHalt Power/Switch Harness
      • PowerHalt Application Specific Harness
      • Toggle Switch Assembly
      • Tie Straps
      • Self-Tapping Screws
      • Switch Cover
      • Switch Label
      • Switch Decal

      Tech Specs

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 2500

      • 6.7L I6 - 07, 08, 09
