Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Ram 1500 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Fabtech 3-Inch Ball Joint Upper Control Arm Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks (19-24 4WD RAM 1500 Rebel w/o Air Ride)
Item R111855
$0.00
Our Price
$3,411.42 (kit)
FREE Shipping Market Price $3,990.99 You Save 15% ($579.57) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Overall Lift of 3 Inches
- Improves Ground Clearance Boosting Offroad Capabilities
- Front 2.50-Inch Dirt Logic Reservoir Coilover Shocks
- Rear 2.25-Inch Dirt Logic Shocks
- Resilient Steel Upper Control Arms
- Tough Steel Rear Coil Spring Spacers
- Runs up to 35-Inch Wide Tires
- Professional Installation Recommended
- Fits All 2019 to 2024 4WD RAM 1500 Rebel Models without the Air Ride
- Does Not Fit 2019+ RAM 1500 Classic Models
| Brand | Fabtech |
| Lift Height | 3.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Maximum Performance and Comfort. Give your RAM 1500 maximum off-road performance that maintains its factory ride comfort with the Fabtech 3-Inch Ball Joint Upper Control Arm Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks. This lift kit delivers 3 inches of front and rear lift providing enough clearance to take on more involved off-road trails on 35-inch wide tires. Moreover, this kit achieves this while keeping suspension geometry and handling at near factory levels, so you never lose your truck’s everyday driving manners.
Front Dirt Logic Reservoir Coilover Shock Absorbers. One of the components that help maintain ideal ride comfort and handling is a pair of high-performance Dirt Logic 2.5 reservoir coilover shocks. These coilovers feature shocks that utilize a monotube, pressurized nitrogen gas design with an aluminum reservoir. This configuration delivers exceptional heat dissipation and faster damping performance, translating to more accurate handling. Meanwhile, their 2.50-inch outer diameter stainless steel shock bodies provide superior durability and corrosion resistance for maximum service life. Moreover, these coilovers are paired with high-quality coil springs for ideal support.
Rear Dirt Logic Shock Absorbers. This kit also includes a pair of premium Dirt Logic 2.25 shock absorbers replacing your truck’s stock counterparts. Similar to the front coilovers, these rear shocks utilize monotube, pressurized nitrogen gas technology providing near-instantaneous damping and precise handling. These shocks also feature stainless steel shock bodies with a 2.25-inch outer diameter. This construction makes these shocks extremely durable and corrosion-resistant.
Resilient Upper Control Arms. The front lift is provided by a pair of re-configured control arms. Specifically, these control arms are designed to eliminate binding providing your truck with the correct steering geometry. Moreover, these control arms are machine-formed from high-grade tubular steel and feature resilient ball joints for increased strength and smooth performance.
Tough Rear Coil Spring Spacers. Bringing up the rear is a pair of coil spring spacers. These spacers are fabricated from high-grade steel ensuring maximum strength and a precise fit when installed. These components are then finished in a tough black powder coating providing excellent corrosion protection.
Professional Installation Recommended. The individual components of this lift kit are designed to install onto factory locations on your truck. The installation will also require the use of a spring compressor as well as minor drilling and trimming. Please note that improper use of a spring compressor can be potentially hazardous, besides being an extra investment. If you are not familiar with the use of this tool or are not inclined to purchase one, professional installation is always an option.
Application. The Fabtech 3-Inch Ball Joint Upper Control Arm Lift Kit with Dirt Logic 2.50-Inch Reservoir Coil-Overs and Dirt Logic 2.25-Inch Shocks fits all 2019 to 2024 4WD RAM 1500 Rebel models without the Air Ride.
Application Notes. This lift kit will not work with the factory wheels and tires.
Fitment:
- 2019 Dodge Ram 1500
- 2020 Dodge Ram 1500
- 2021 Dodge Ram 1500
- 2022 Dodge Ram 1500
- 2023 Dodge Ram 1500
- 2024 Dodge Ram 1500
Fabtech K3170DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

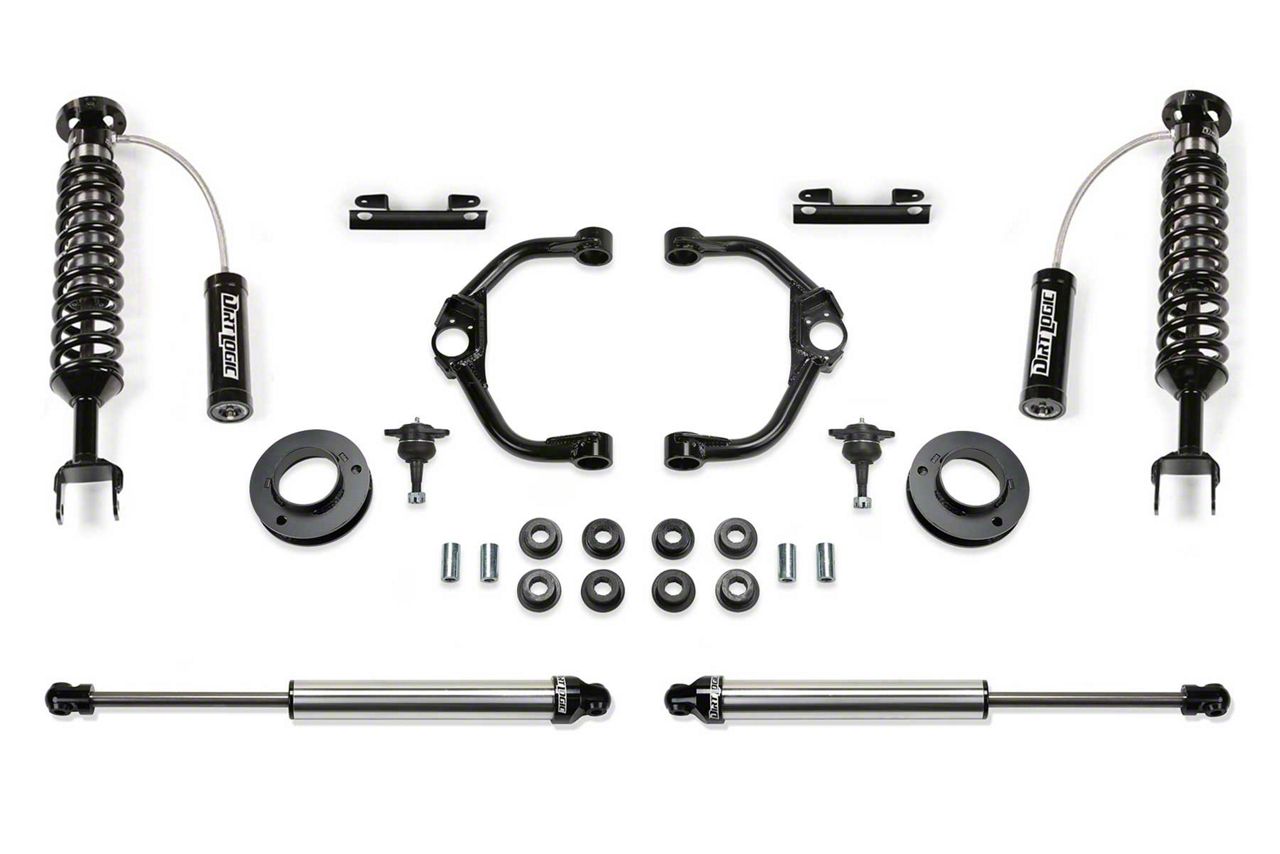

What's in the Box
- (2) Front Coilover Shocks
- (2) Rear Shocks
- (2) Upper Control Arms, Driver and Passenger Side
- (2) Rear Coil Spring Spacers, Driver and Passenger Side
- (2) Ball Joints
- (2) Spacer Sleeves
- (4) Control Arm Sleeves
- (8) Upper Control Arm Bushings
- Mounting Hardware
4.6
Customer Reviews (24)
Questions & Answers
10 More Questions
Will It Fit My Ram 1500
- 3.0L V6 EcoDiesel - 20, 21, 22, 23
- 3.6L V6 - 19, 20, 21, 22, 23, 24
- 5.7L V8 - 19, 20, 21, 22, 23, 24
