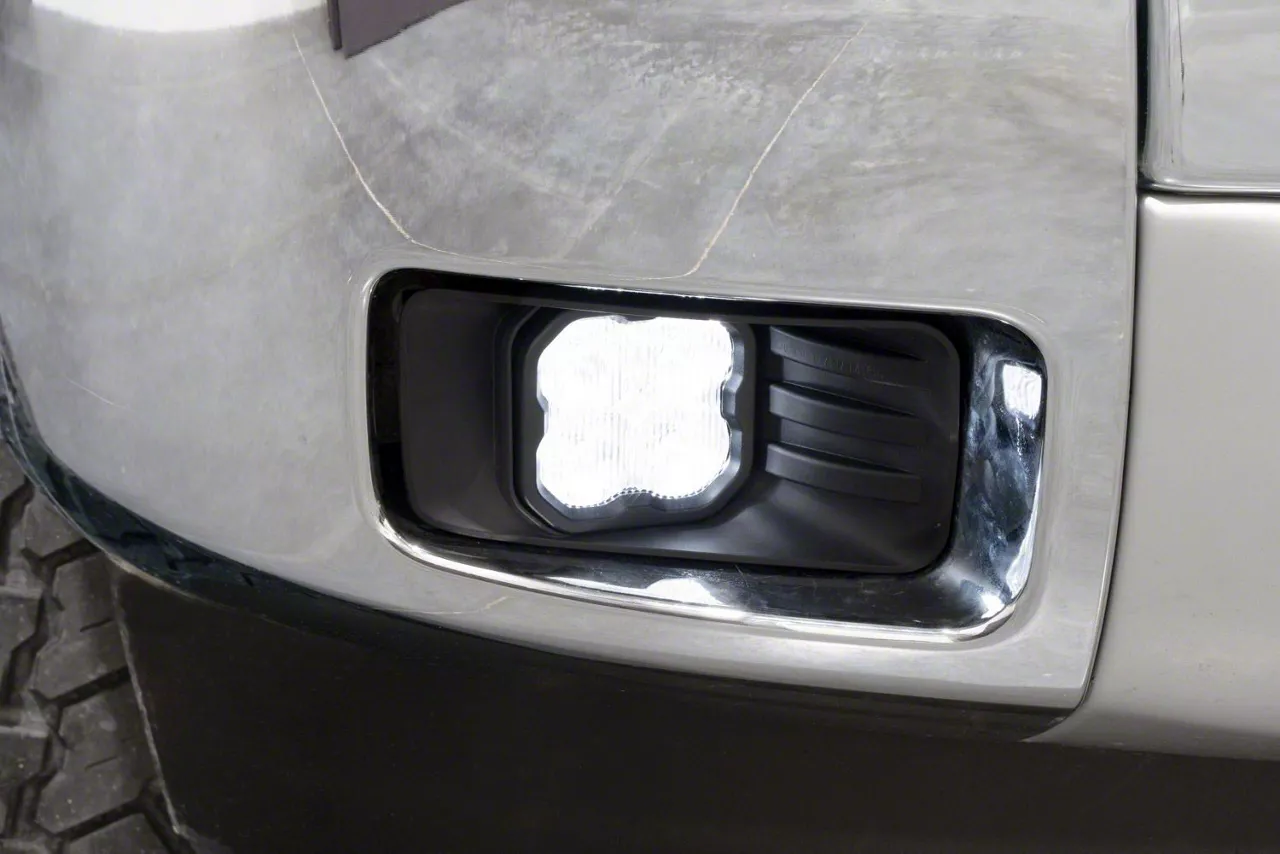

Diode Dynamics SS3 Max ABL Type CH LED Fog Light Kit; White SAE Fog (07-14 Tahoe LT w/ Z71 Package; 15-20 Tahoe)Find parts that fit my vehicle

Item CT1444
Product Image
184 Reviews of Diode Dynamics
Our Price

$719.95 kit

Military, Medical & First Responders $36.00 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle

Item Options

Diode Dynamics SS3 Security Hardware Kit
Diode Dynamics SS3 Security Hardware Kit
+ $39.95
Yes No
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Advanced TIR optics provide high efficiency and focused light distribution with reduced glare
        • _x000D_
      • SAE-compliant road-legal fog light output pattern with 80° by 8° beam spread
        • _x000D_
      • Includes one-piece molded bezel for a clean, factory-style appearance
        • _x000D_
      • Plug-and-play installation with no modifications or drilling needed
        • _x000D_
      • Durable powder-coated aluminum housing with polycarbonate lens for long-lasting performance
        • _x000D_
      • Engineered and assembled in USA
        • _x000D_
      • Peak beam intensity up to 18,000 candela (Max variant)
        • _x000D_
      • Measured output up to 3,500 lumens per pod
        • _x000D_
      • Raw output up to 7,920 lumens
        • _x000D_
      • Selectable beam colors available: 6000K white and 3000K yellow
        • _x000D_
      • Main beam power consumption of 38.5 watts and backlight power consumption of 0.4 watts
        • _x000D_
      • Main beam current draw of 3 amps at 12.8 volts; backlight current draw of 0.03 amps at 12.8 volts
        • _x000D_
      • Operating voltage range from 9 to 30 volts
        • _x000D_
      • Modular backlight functionality for added amber accent lighting
        • _x000D_
      • Polarity-specific DT input connector
        • _x000D_
      • Operating temperature range from -40°C to 85°C (-40°F to 185°F)
        • _x000D_
      • LED emitters include Luxeon Z ES, Cree XP-L HI, and Osram Boost HX
        • _x000D_
      • Constant current driver design
        • _x000D_
      • Passive cooling with pin-fin heatsink for optimal thermal management
        • _x000D_
      • Materials include polycarbonate lens, aluminum casting, and rubber gasket
        • _x000D_
      • Complies with SAE J575 durability and SAE J583 fog lamp beam pattern standards
        • _x000D_
      • Ingress Protection rating of IP69K for waterproofing and resistance to high-pressure water
        • _x000D_
      • Unit weight approximately 2.075 pounds each; product weight approximately 4.15 pounds per pair; shipped weight approximately 4.7 pounds per pair
        • _x000D_
      • Fits 07-14 Tahoe LT with Z71 package and 15-20 Tahoe models
        • _x000D_

      Description

      High-Performance Fog Lighting. The Diode Dynamics SS3 Max ABL Type CH LED Fog Light Kit; White SAE Fog delivers superior brightness and efficiency to enhance visibility in foggy conditions. Designed to replace factory fog lights, this kit improves safety by producing a focused and powerful beam that meets SAE J583 standards, making it ideal for on-road use.

      _x000D__x000D_

      Construction and Appearance. Featuring a durable powder-coated aluminum housing and polycarbonate lens, the kit includes a one-piece molded bezel for a seamless, factory-style appearance. Advanced TIR optics optimize light focus and distribution, and materials are engineered to withstand harsh environments while maintaining longevity.

      _x000D__x000D_

      Installation. Installation is straightforward, requiring basic tools with no modifications or drilling. The kit is designed for direct bolt-in replacement of factory fog lights, utilizing plug-and-play wiring harnesses for easy connection to existing sockets.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty to ensure lasting quality and performance support.

      _x000D__x000D_

      Application. Specifically designed for 07-14 Tahoe LT with the Z71 package and 15-20 Tahoe models, ensuring proper fit and function without any required modifications.

      Diode Dynamics DD7307

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (2) Fog Lights
      • (1) Wiring Harness
      • Mounting Hardware
      • Instruction Manual
      4.7

      Reviews of Diode Dynamics Lights Products (184)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Tahoe

      • 5.3L V8 - 07, 08, 09, 10, 11, 12, 13, 14
