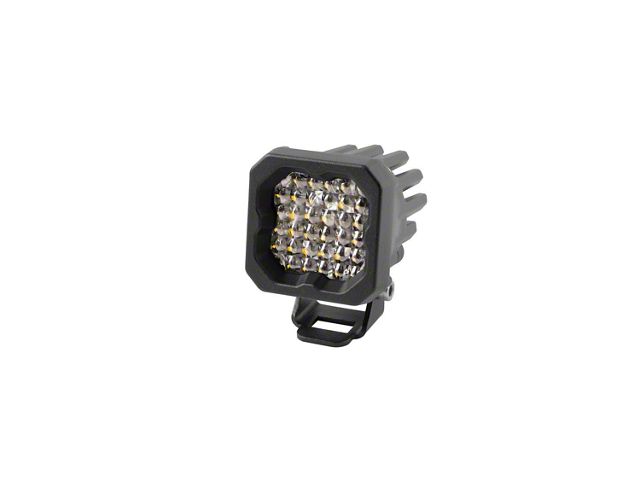

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)

Item HS28171
Product Image
32 Reviews of Diode Dynamics
Our Price

$159.95

Military, Medical & First Responders $8.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Single-LED Form Factor
        • _x000D_
      • Triple Function With High-Power White Main Beam, High-Power Red Main Beam, And Low-Power Red Accent Light Independently Activated
        • _x000D_
      • Pin-Fin Heatsink Design For Superior Thermal Dissipation
        • _x000D_
      • Integrated Deutsch-Style Connector
        • _x000D_
      • Designed, Torture-Tested, And Assembled In USA
        • _x000D_
      • Custom-Engineered TIR Optics With Single High-Power LED Chip
        • _x000D_
      • Can Be Mounted On Cars, Trucks, Motorcycles, And UTVs Including Tight Spaces
        • _x000D_
      • True Optically Designed Flood Pattern With 50x50 Degree Spread
        • _x000D_
      • Snap-On Covers Available For Protection And Cleanliness
        • _x000D_
      • 4-Pin 6-Inch Pigtail With Bare Leads: Red Powers White Main Beam, Yellow Powers High-Power Red, Blue Powers Low-Power Red, Black Is Ground
        • _x000D_
      • Tested For Wide Temperature Range From -40 To 185 Degrees Fahrenheit, Vibration, Moisture Intrusion, And Corrosion
        • _x000D_
      • Includes One LED Pod, One Deutsch-Style Wire Pigtail, And Mounting Bracket With Hardware
        • _x000D_
      • Raw Lumens 1450
        • _x000D_
      • Color Temperature 6000K
        • _x000D_
      • Beam Angle Flood 50 By 50 Degrees
        • _x000D_
      • Power Consumption 15 Watts
        • _x000D_
      • Operating Voltage 9 To 16 Volts
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Polycarbonate Lens, Aluminum Casting, Rubber Gasket
        • _x000D_
      • Passive Cooling With Pin-Fin Heatsink
        • _x000D_
      • Compliance With SAE J575 Durability Test
        • _x000D_
      • Waterproof IP69K High Pressure
        • _x000D_
      • Unit Weight 0.175 Pounds, Product Weight 0.325 Pounds, Shipped Weight 0.4 Pounds
        • _x000D_
      • Lifetime Warranty
        • _x000D_
      • Fits Universal, Some Adaptation May Be Required
        • _x000D_

      Description

      Compact High-Performance Lighting. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood is a versatile compact LED light designed for various automotive and off-road applications. Featuring triple lighting functions—high-power white main beam, high-power red main beam, and low-power red accent—it enhances visibility and safety when used as a reverse light, brake light, or running light. Its small size allows flexible mounting on cars, trucks, motorcycles, or UTVs, including tight spaces where larger pods won't fit.

      _x000D__x000D_

      Construction and Appearance. Engineered with a durable polycarbonate lens and a robust aluminum casting housing that incorporates a pin-fin heatsink design for superior heat dissipation, this LED pod offers long-lasting performance. The black anodized finish provides a sleek look and excellent corrosion resistance. Custom-engineered TIR optics deliver focused, glare-free illumination with an optically designed flood beam pattern that ensures even light distribution.

      _x000D__x000D_

      Installation. Installation is straightforward, typically requiring 30 to 60 minutes with basic tools. The pod comes with a universal mounting bracket and hardware, allowing for non-invasive mounting in various locations without complex modifications.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty against defects in materials and workmanship.

      _x000D__x000D_

      Application. Designed for universal fitment, the Stage Series C1R LED Pod can be adapted to a wide range of vehicles and mounting locations, enabling users to customize auxiliary lighting solutions to their needs.
