Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

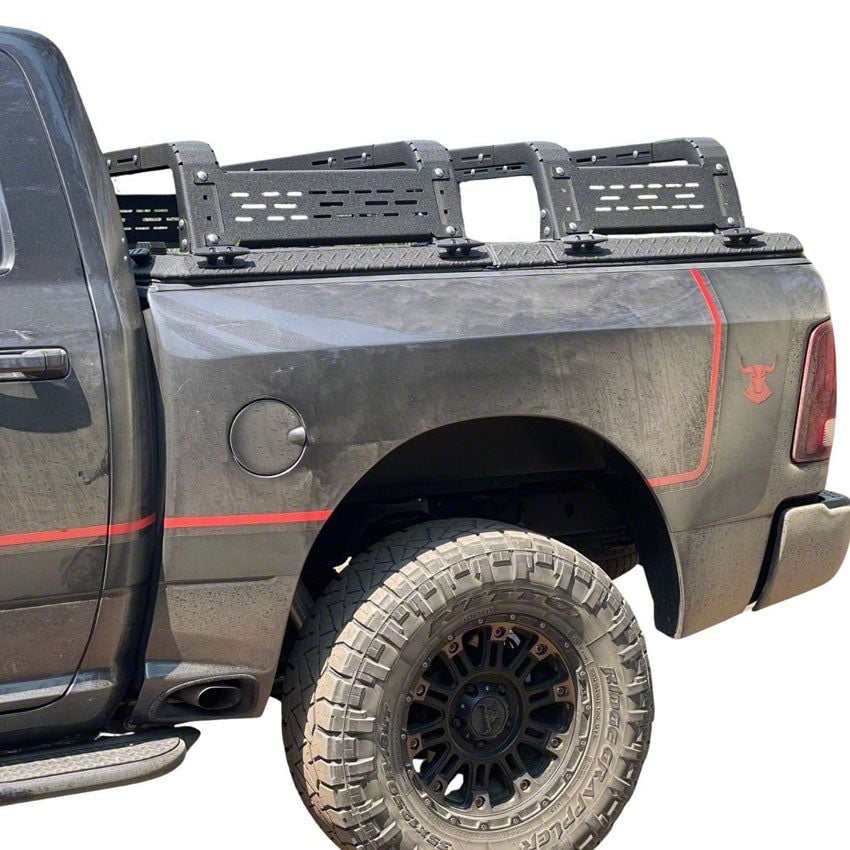

Chassis Unlimited Thorax Bed Rack System; 12-Inch Height (10-18 RAM 2500 w/o RAM Box)Find parts that fit my vehicle
Item HR45522
Our Price
$1,234.19 set
Military, Medical & First Responders
$61.71 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- For Use Only With The Diamond Back Cover On Short Bed 2010-2018 Ram 1500, 2500, 3500
- Available In 12" Or 18" Height, Measured From Top Of Bed Rails
- Rack Assembly Is Completed Easily In About 45 Minutes
- Universal Tent Mounting Slots, Makes Mounting Any Tent Brand Easy
- Universal Mounting Patterns On Top, And Both Sides Of Rack For Accessories
- Assembled Weight Is 95 Lbs
- Rated For 1000 Lb Capacity While Vehicle Is Parked
- Includes Full Rack Assembly - 4 Adjustable Width Bed Bars, 6 Connecting Panels, Assembly Hardware
- Fits 10-18 Ram 2500 W/o Ram Box
| Brand | Chassis Unlimited |
| Rack Type | Rear Cargo Rack |
Description
Adjustable Bed Rack System. The Thorax Bed Rack System is designed to provide a robust, versatile solution for mounting overland tents, recovery tools, and various gear on your truck bed. This rack system optimizes storage and accessibility, making it ideal for off-road enthusiasts and professionals who need a reliable platform to carry equipment securely.
Construction and Appearance. Manufactured with durable materials, the rack is available in raw steel requiring painting or a black texture powder coat finish for enhanced corrosion resistance and aesthetics. The system features a modular assembly of adjustable width bed bars and connecting panels, allowing for a custom fit and sturdy structure.
Installation. Assembly typically takes about 45 minutes and includes all necessary hardware. Installation involves bolting the rack onto the cleats of the Diamond Back bed cover. No drilling requirements are specified.
Application. Engineered for use with short bed 2010-2018 Ram 1500, 2500, and 3500 models equipped with Diamond Back covers, providing compatibility with this configuration.
Chassis Unlimited CUB970011
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Bed Rack Frame
- (2) Crossbars
- Mounting Brackets
- Hardware
Questions & Answers
No questions about this product yet.
Ask the First Question
