Find for your Ram 1500
BDS 6-Inch Suspension Lift Kit with 5-Inch Rear Coil Spacers and NX2 Nitro Shocks (13-18 4WD RAM 1500)Find parts that fit my vehicle
Item R191686
Our Price
$2,502.65 kit
Military, Medical & First Responders
$125.13 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- BDS Suspension Lift Kit
- Includes 5-Inch Rear Coil Spacers and NX2 Nitro Shocks
- Textured Black, Glossy Black, and Metallic Gray Finish
- High-Clearance Crossmembers
- Lift of 6 Inches
- Robust Steering Knuckles with ESC System Compliant
- HD Skid Plate System Offers Improved Protection
- Multipoint Differential Relocation Brackets
- Recommended Tire and Wheel Configuration of 37 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace
- Improved Ground Clearance and Offroad Performance
- Bolt-On
- Direct Replacement
- Comes in Kits
- Fits 2013-2018 Four-Wheel Drive Dodge RAM 1500 Models
| Brand | BDS |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Coil Spring Lift |
| Lift Kit Max Tire Size | 37 Inch |
Description
Comprehensive Lift Solution. The BDS Suspension Lift Kit is specifically engineered for 2013-2018 four-wheel drive Dodge RAM 1500 models, offering a full 6 inches of lift and improved ground clearance for both off-road adventures and daily driving. This kit provides a bolt-on, direct replacement design with high-clearance crossmembers, robust steering knuckles, HD skid plate system, and multipoint differential relocation brackets for enhanced performance, durability, and compatibility with electronic stability control systems.
Construction and Appearance. Finished in a mix of textured black, glossy black, and metallic gray, the kit features premium components crafted from high-strength materials for long-term reliability. Each element, from the coil spacers to the skid plates, is built for toughness in challenging conditions and delivers a clean, professional appearance when installed. The advanced engineering ensures OE compatibility while maximizing performance and protection on demanding terrain.
Installation. Installation is streamlined thanks to the bolt-on configuration and direct replacement layout, requiring no major modifications or welding to your vehicle. With all necessary hardware, spacers, adapters, and mounting brackets included, the adaptable kit is suitable for experienced installers and dedicated DIYers, making the upgrade process efficient while ensuring factory alignment and optimal geometry.
Application. This BDS Suspension Lift Kit fits 2013-2018 four-wheel drive Dodge RAM 1500 models. By delivering increased lift and rugged off-road capability, it enhances your truck’s stance, approach angles, and overall versatility for both on-road handling and trail performance.
BDS BDS1755H
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

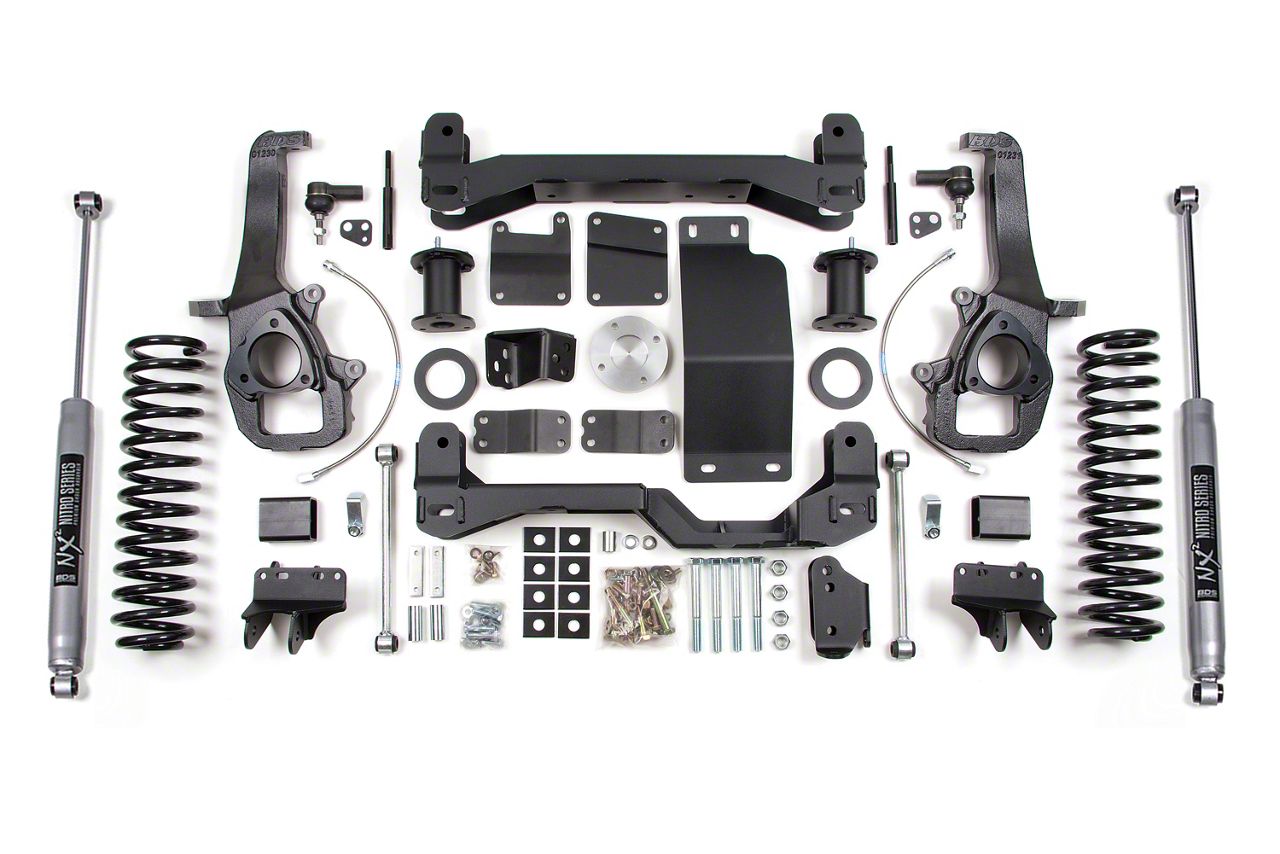

What's in the Box
- (2) Preload Spacers
- (1) Rear Track Bar Bracket
- (1) Driver Rear Bump Spacer
- (1) Passenger Rear Bump Spacer
- (1) Driver Side Relocation Bracket
- (1) Passenger Side Relocation Bracket
- (2) Sway Bar Links (022509 Only)
- (2) Shock Nut Tabs
- (2) Nut Plates
- (1) 1.00" x .125" x 1.360" DOM Sleeve
- (2) 1.00" x .125" x 2.375" DOM Sleeves
- (4) .625" x .075" x 1.375" Sleeves
- (4) 5/8" ID Hourglass Bushings, Black
- (2) Brake Adapters
- (2) Rear Bump Stops (022509 Only)
- (2) 5" Rear Coil Springs (022509 Only)
- (4) 12mm x 60mm Bolts
- (8) 7/16" USS Washers
- (4) 12mm Prevailing Torque Nuts
- (3) 9/16" x 3" Bolts
- (1) 9/16" Prevailing Torque Nut
- (4) 9/16" SAE Washers
- (2) 5/8" x 4-1/2" Bolts
- (2) 5/8" Prevailing Torque Nuts
- (4) 5/8" SAE Washers
- (9) 3/8" x 1-1/4" Bolts
- (9) 3/8" Prevailing Torque Nuts
- (18) 3/8" SAE Washers
- (1) 8mm x 30mm Bolt
- (1) 5/16" USS Washer
- (2) 1/4" x 3/4" Bolts
- (2) 1/4" Nylock Nuts
- (4) 1/4" SAE Washers
- (4) 3/8"-16 x 7/8" Bolts, Grade 8, Yellow Zinc
- (4) 3/8" SAE Washers, Yellow Zinc
- (1) Front Drive Shaft Spacer
- (1) HC Diff Skid Plate
- (4) M18-2.5 x 150mm Class 10.9 Bolts
- (4) M18 x 2.5 Prevailing Torque Nuts
- (8) Square Washers
- (1) HC Rear Crossmember
- (1) Front Brake Bracket (022402 Only)
- (1) Front Brake Bracket (022402 Only)
- (1) Bolt Pack (022402 Only)
- (4) 11.5" Nylon Cable Ties
- (2) 4" Strut Spacers (022402 Only)
- (2) Sway Bar Link Extensions
- (4) Large Stem Washers
- (2) 1/4" Spacers
- (1) Thread Locker, 1 ml
- (1) Front Brake Line (022624 Only)
- (2) Snap-In Brake Line Clips (022624 Only)
- (4) Crush Washers (022624 Only)
- (1) Brake Line Bracket (022624 Only)
- (2) 6" Strut Spacers (022624 Only)
- (1) HC Front Crossmember
- (1) Differential Drop Bracket – Passenger Side
- (1) Differential Drop Bracket – Driver Side Front
- (1) Differential Drop Bracket – Driver Side Rear
- (1) Differential Drop Bracket – Driver Side Outer Front
- (1) CV Boot Clamp
- (1) Steering Knuckle – Driver Side
- (1) Steering Knuckle – Passenger Side
- (2) Tie Rod Ends
- (3) 12mm-1.75 x 30mm Bolts
- (2) 12mm-1.75 x 40mm Bolts
- (4) 12mm-1.75 x 55mm Bolts
- (2) 12mm-1.75 x 60mm Bolts
- (13) 12mm Flat Washers
- (4) 12mm-1.75 Prevailing Torque Nuts
- (3) 1/2"-13 x 1-1/2" Bolts
- (4) 1/2"-13 x 1-1/4" Bolts
- (3) 1/2"-13 Prevailing Torque Nuts
- (10) 1/2" SAE Thru-Hardened Washers
- (2) 1/4"-20 x 1/2" Bolts
- (2) 1/4"-20 Prevailing Torque Nuts
- (4) 1/4" SAE Washers
- (4) Wire Clips
- (6) 10mm-1.50 Prevailing Torque Nuts
- (6) 10mm Flat Washers
- (2) 1/2"-13 x 1-1/4" Bolts
- (2) 1/2"-13 Prevailing Torque Nuts
- (2) 1/2" SAE Flat Washers
- (2) 7/16"-14 Nylock Nuts
- (2) 12mm-1.75 x 45mm Bolts
- (2) 12mm Flat Washers
Tech Guides:
- How Much Lift Does My Truck Need? Picking the Right Lift Height
- Pros & Cons of Lifting Your Truck: Picking The Right Upgrades for Your Needs
- Towing Suspension Upgrades: Suspension Components to Improve Towing Capability
- Failing Suspension Parts: Signs Your Truck Needs a New Suspension
- Lift Kits - How Adding Ground Clearance Makes Trucks More Capable Off-Road
- Do Lifted Trucks Consume More Fuel? MPG & Suspension Lifts
- What Is Rake? How Leveling Your Truck Improves Appearance
- FAQ What Are The Best Suspension Systems? How Suspension Systems Work
- Off-Road Suspension 101: What To Know Before You Go
- Lift Kits vs. Leveling Kits: What’s the Difference?
- How to Lift Your Truck
- 8 Most Popular Rides to Upgrade Suspensions in 2021
- How Much Does it Cost to Lift a Truck
4.6
Reviews of BDS Suspension Products (40)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Ram 1500
- 3.0L V6 EcoDiesel - 14, 15, 16, 17, 18
- 3.6L V6 - 13, 14, 15, 16, 17, 18
- 4.7L V8 - 13
- 5.7L V8 - 13, 14, 15, 16, 17, 18
