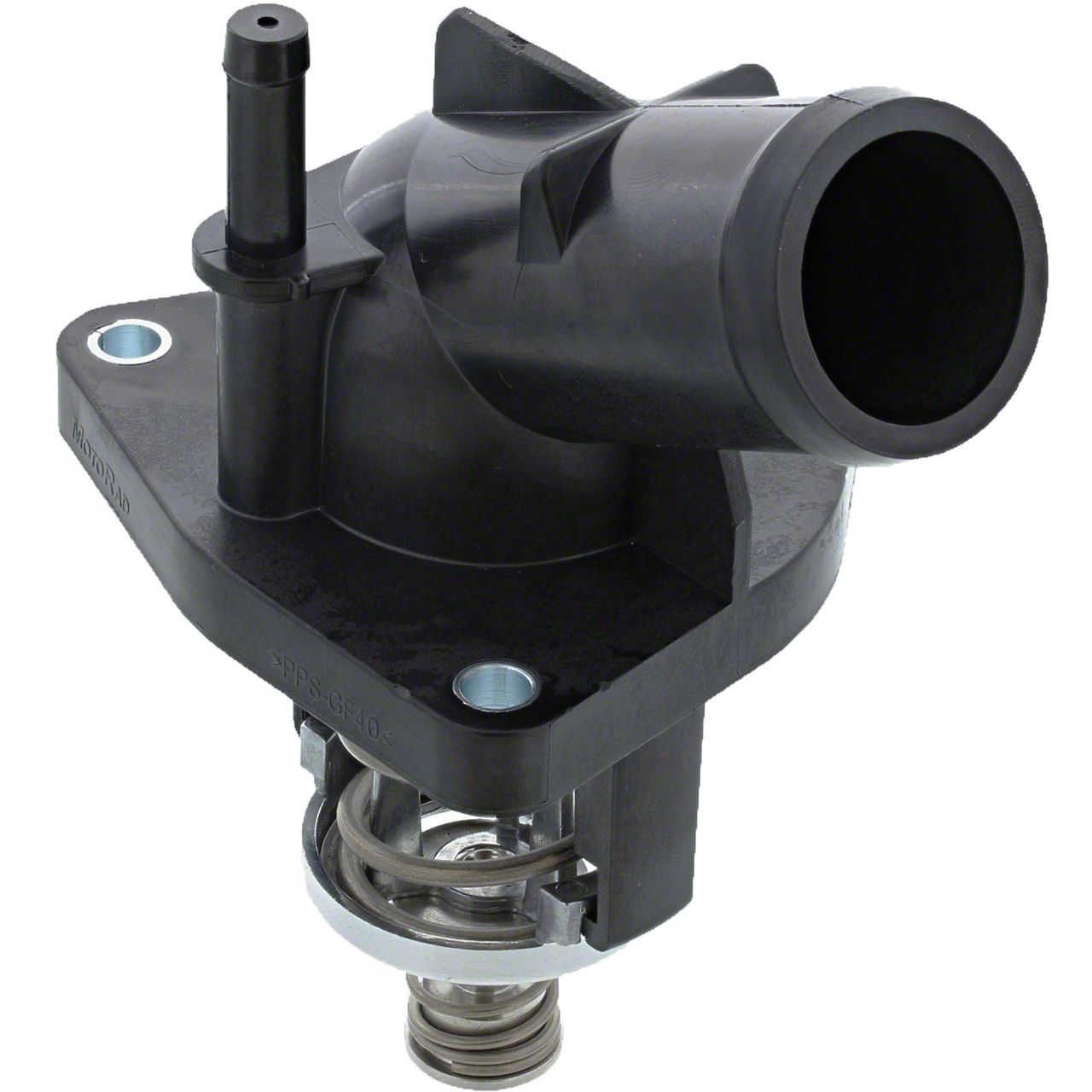

Integrated Thermostat Housing Assembly; 194-Degree (15-20 Yukon)Find parts that fit my vehicle

Item GY35866
17 Reviews of similar
Our Price

$104.99

Military, Medical & First Responders $5.25 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • High Grade Stainless Steel And Copper Construction
      • Meets Or Exceeds OEM Standards
      • Consistent And Precise Response To Cooling System Needs
      • Original Equipment Design For Worry-Free Direct Fit Replacement
      • 100% Tested And Calibrated
      • Gasket Or Seal Material Is Rubber
      • Seal Quantity Is 1
      • Gasket Or Seal Included
      • Start To Open Temperature 194 Deg. F / 90.00 Deg. C
      • Outlet Port Quantity Is 2
      • Mounting Hardware Not Included
      • Mounting Hole Quantity Is 3
      • Gasket Or Seal Required
      • Grade Type Is Standard Replacement
      • Material Includes Plastic, Steel, Copper
      • Includes No Sensor
      • Valve Type Is Disk
      • No Bleeder Hole
      • Gasket Type Is O-Ring
      • Outlet Port Outside Diameter 0.31 In / 7.87 Mm, 1.75 In / 44.45 Mm
      • Actuator Type Is Mechanical
      • Bypass Quantity 1
      • Inlet Hose Connection Type Is Bolt On
      • Inlet Inside Diameter 2.07 In / 52.58 Mm
      • Outlet Port Length 1.23 In / 31.24 Mm
      • Inside Diameter 2.07 In / 52.58 Mm
      • Outlet Port Inside Diameter 1.07 In / 27.18 Mm
      • Terminal Quantity 0
      • Inlet Quantity 1
      • Flange Width 3.40 In / 86.36 Mm
      • Bypass Outside Diameter 0.35 In / 8.89 Mm
      • Outlet Hose Connection Type Barbed
      • MAP Controlled No
      • Bypass Hose Connection Type Barbed
      • Bypass Length 0.97 In / 24.64 Mm
      • Inlet Outside Diameter 2.61 In / 66.29 Mm
      • Flange Length 3.38 In / 85.85 Mm
      • Bolt Hole Center To Bolt Hole Center 2.80 In / 71.12 Mm, 3.02 In / 76.71 Mm
      • Flange Thickness 0.41 In / 10.41 Mm
      • Mounting Hole Diameter 0.25 In / 6.35 Mm
      • Bypass Inside Diameter 0.08 In / 2.03 Mm
      • Fits 15-20 Yukon

      Description

      Integrated Thermostat Assembly. The Integrated Thermostat Housing Assembly regulates coolant flow to ensure optimal engine temperature. It opens at 194 degrees Fahrenheit, facilitating consistent and precise engine cooling. This thermostat helps prevent overheating and maintain engine efficiency.

      Construction and Appearance. Constructed from high-grade stainless steel and copper, this thermostat housing features durable plastic components for a reliable, long-lasting build. The assembly includes a rubber O-ring gasket, providing a secure seal with a black finished housing that resists corrosion and wear.

      Installation. Designed as a direct replacement for original equipment, installation requires no modifications or drilling. The mounting holes and inlet/outlet connections ensure an easy bolt-on fit for swift and secure mounting.

      Application. This thermostat assembly fits multiple vehicle makes and models, including the 2015 to 2020 GMC Yukon, and is compatible with a range of outlet and inlet configurations for various vehicle years and trims.
