Find LED Light Bars for your Silverado 3500

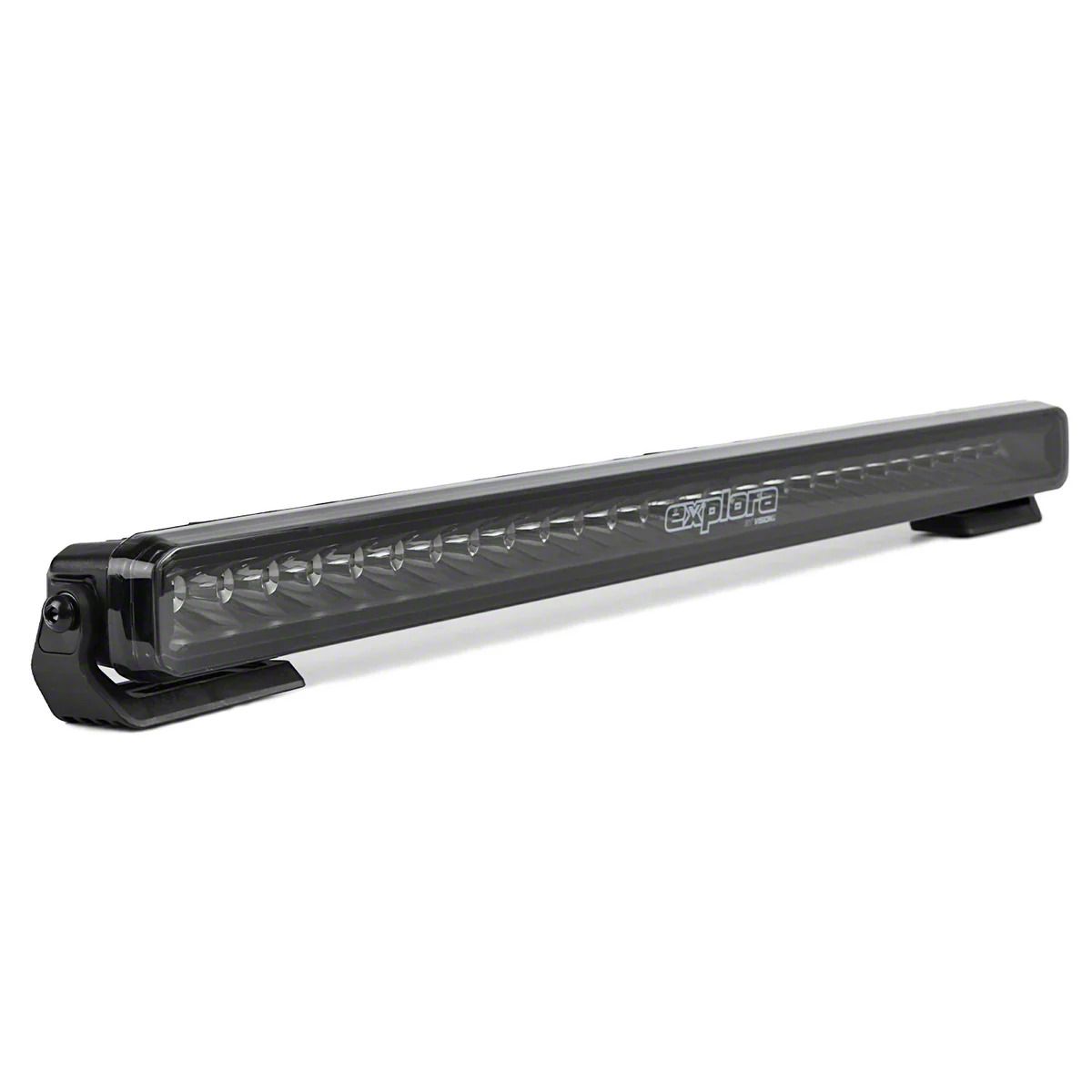

Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam (Universal; Some Adaptation May Be Required)

Item SHS66020
Product Image
61 Reviews of Vision X
Our Price

$399.00

Military, Medical & First Responders $19.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Explora Series Lights Are Purpose-Built To Deliver Modern Styling In A Fully Customizable Platform, Giving Everyday Drivers Versatility At An Affordable Price
        • _x000D_
      • Switchback Dual-Color DRLs, Multiple Lens Options, And Silicone Trim Rings Offer Extensive Customization To Match Your Build
        • _x000D_
      • Impressive Beam Performance With An Internal MOSFET Relay System Simplifying Wiring
        • _x000D_
      • Available In 10, 20, & 30 Inch Lengths With Single And Double Row Profiles
        • _x000D_
      • Next-Generation Circuit Design Featuring 2-Position DRL Operable In White, Amber, Or Switch-Back Mode
        • _x000D_
      • Switch-Back DRL Flashes In Sync With Factory Turn Signals
        • _x000D_
      • Internal MOSFET Eliminates The Need For External Relays, Simplifying Wiring With Or Without Plug-&-Play Harnesses
        • _x000D_
      • Swappable Snap-On Lens Covers And Silicone Trim Rings For Customized Appearance
        • _x000D_
      • Lenses Available In Yellow, Clear, Smoke, Or Black-Out
        • _x000D_
      • Trim Rings Available In Red, Orange, Yellow, Green, Blue, & Pink
        • _x000D_
      • X-Drive LEDs Produce 9,500 Lumens With Ultra-Reflective Honeycomb Optics Backed By Eight High-Output LEDs
        • _x000D_
      • Dual-Color DRL Provides Crisp White Or Amber Output Matching OEM Marker Lights
        • _x000D_
      • Switch-Back Technology Allows Amber DRL To Flash With Turn Signals When Both Colors Are Powered
        • _x000D_
      • Swappable Lens System Includes Smoked, Clear, And Selective Yellow Lenses
        • _x000D_
      • Customizable Colored Silicone Trim Rings Surround The Outer Lens
        • _x000D_
      • Internal Relay With Modular Switching Allows Activation Via Trigger Wire Or Universal Switch Without External Relays
        • _x000D_
      • LEDs: CREE XTE (5W Each)
        • _x000D_
      • Power Consumption: 140 Watts
        • _x000D_
      • Current Draw: 11.67 Amps
        • _x000D_
      • Raw Lumens Output: 9,500
        • _x000D_
      • Beam Distance: 1,771 Feet (540 Meters)
        • _x000D_
      • Beam Width: 197 Feet (60 Meters)
        • _x000D_
      • Connector: 3-Pin DT
        • _x000D_
      • Color Temperature: 6000K
        • _x000D_
      • Operating Voltage Range: 9-32 VDC
        • _x000D_
      • Pod Size: 30.50" Diameter X 2.52" Depth
        • _x000D_
      • Pod Weight: 4.5 Pounds
        • _x000D_
      • IP Rating: IP68 & IP69K Waterproof, Submersible & High-Pressure Spray Resistant
        • _x000D_
      • EMC Compliance: CISPR 25, CE, UKCA
        • _x000D_
      • Warranty: Limited Lifetime
        • _x000D_
      • System Includes One Explora Driving Light Bar, Smoked Lens Cover, Black Zinc Mounting Hardware, And Single-Light Modular Wiring Harness
        • _x000D_
      • Universal Fitment; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced Lighting Solution. The Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL and Flood/Spot Combo Beam delivers bright, customizable lighting designed to improve visibility and vehicle aesthetics. It offers versatile off-road and on-road lighting with adaptable daylight running lights and strong beam performance.

      _x000D__x000D_

      Durable Construction and Appearance. Featuring CREE XTE LEDs that produce a brilliant 9,500 lumens, this light bar uses an ultra-reflective honeycomb optic design. The rugged housing includes black zinc mounting hardware and silicone trim rings, with swappable lens covers available in multiple colors. The enclosure is rated IP68 and IP69K for waterproofing, submersion resistance, and protection against high-pressure sprays.

      _x000D__x000D_

      Installation. Thanks to an internal MOSFET relay system, wiring is simplified and does not require external relays. The product supports plug-and-play or custom wiring harnesses. Included mounting hardware allows straightforward installation, though drilling may be necessary depending on the vehicle.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, providing long-lasting protection and peace of mind.

      _x000D__x000D_

      Application. Designed for universal fitment, this light bar may require some adaptation or additional modifications depending on the vehicle. It is compatible with a wide range of vehicles but may need extra kit or adjustments for proper installation.

      Vision X EX-LB28S

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.6

      Reviews of Vision X Lights Products (61)

      Questions & Answers

      No questions about this product yet. Ask the First Question
