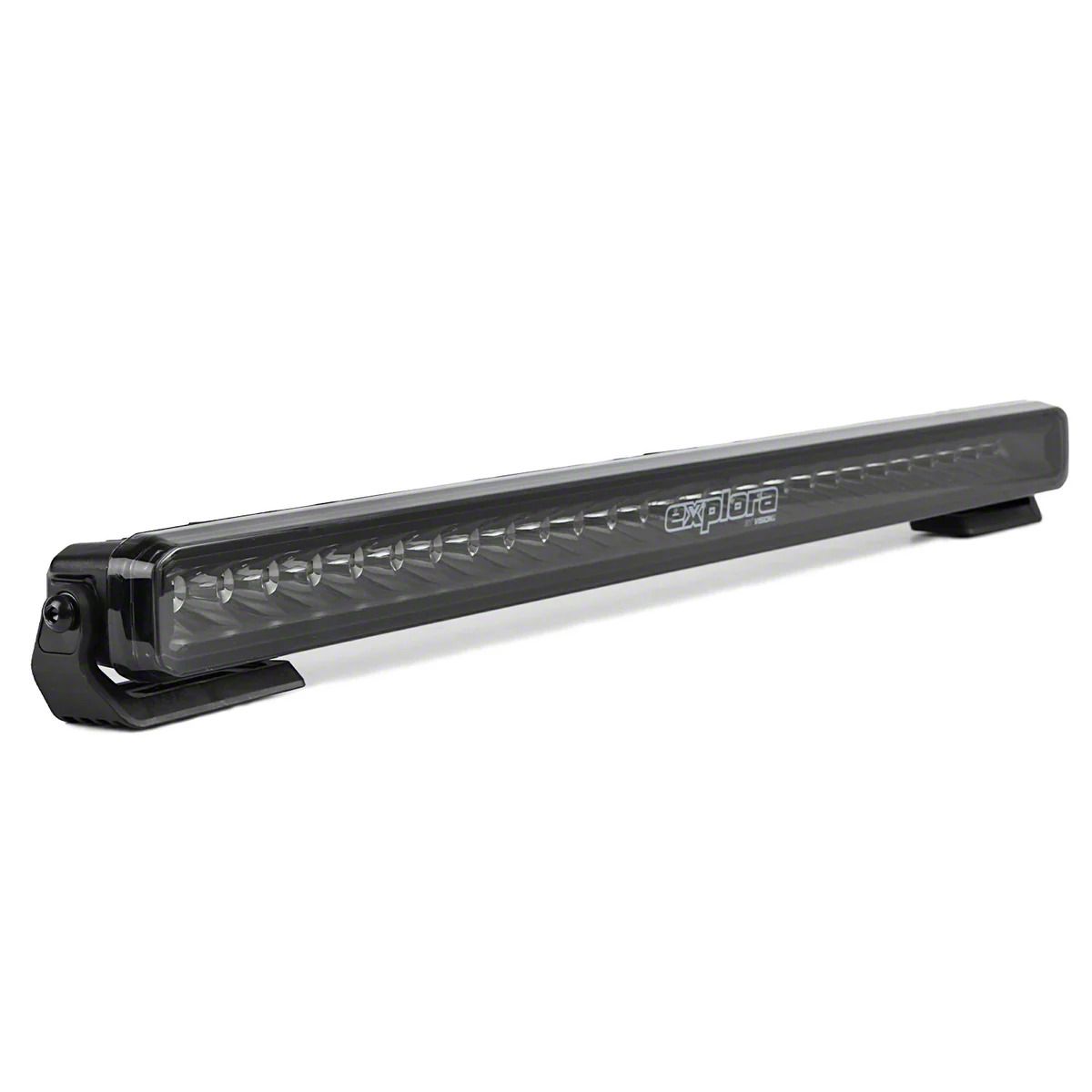

Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam (Universal; Some Adaptation May Be Required)

Item FR57014
Product Image
61 Reviews of Vision X
Our Price

$399.00

Military, Medical & First Responders $19.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Explora Series Lights Were Purpose-Built To Deliver Modern Styling In A Completely Customizable Platform Giving Everyday Drivers Unprecedented Versatility At An Affordable Price Point.
        • _x000D_
      • Switchback Dual-Color DRLs, Multi-Color Lens Options, And Multi-Color Trim Rings Provide Unlimited Customization That Are Guaranteed To Match Your Build.
        • _x000D_
      • Add To That An Impressive Beam Performance And Internal Relay System.
        • _x000D_
      • Explora Series Light Bars Are Available In 10, 20, & 30 Inch Lengths In Both Single And Double Row Profiles.
        • _x000D_
      • All Light Bars Feature A Next-Generation Circuit Design With A 2-Position DRL That Can Be Run In White, Amber, Or Switch-Back Mode Where The White DRL Switches To Amber And Flashes In Sync With Factory Turn Signal.
        • _x000D_
      • Advanced Circuit Design Utilizes Internal Mosfet Eliminating External Relays, Making Wiring Easy With Or Without Plug-&-Play Harnesses.
        • _x000D_
      • Interchange Snap-On Lens Covers And Silicone Trim Rings Are Available For All Sizes Allowing More Customization.
        • _x000D_
      • Lenses Are Available In Yellow, Clear, Smoke, Or Black-Out;
        • _x000D_
      • Trim Rings Available In Red, Orange, Yellow, Green, Blue, & Pink.
        • _x000D_
      • X-Drive LEDs Produce 9,500 Lumens With Ultra-Reflective Honeycomb Optic Backed By Eight High-Output LEDs For Powerful Driving Beam.
        • _x000D_
      • Dual-Color DRL Provides Crisp White Or Amber Output To Match OEM Marker Light.
        • _x000D_
      • Switch-Back Technology Allows Amber DRL To Flash In Sync With Turn Signals.
        • _x000D_
      • Swappable Lens System Comes Equipped With Smoked Lens That Can Be Swapped To Clear Or Selective Yellow For Dust Conditions.
        • _x000D_
      • Custom Trim Colors Available Via Colored Rubber Trim Rings Surrounding Outer Lens.
        • _x000D_
      • Internal Relay With Modular Switching; No External Relay Needed; Modular Wiring Harness Allows Switching Via Trigger Wire Or Universal Switch.
        • _x000D_
      • LEDs Are Cree XTE 5W Each;
        • _x000D_
      • Wattage At 140W With Amp Draw Of 11.67A;
        • _x000D_
      • Raw Lumens Output Of 9,500;
        • _x000D_
      • Beam Distance Of 1771 Feet (540 Meters);
        • _x000D_
      • Beam Width Of 197 Feet (60 Meters);
        • _x000D_
      • Connector Is 3-Pin DT;
        • _x000D_
      • Color Temperature At 6000K;
        • _x000D_
      • Operating Voltage Range From 9 To 32 VDC;
        • _x000D_
      • Pod Dimensions: 30.50 Inches Round By 2.52 Inches Deep;
        • _x000D_
      • Pod Weight: 4.5 Pounds;
        • _x000D_
      • IP Rating Is IP68 & 69K Waterproof Submersible And High-Pressure Spray;
        • _x000D_
      • EMC Standards CISPR 25, CE, UKCA Compliant;
        • _x000D_
      • Warranty Limited Lifetime;
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required.
        • _x000D_

      Description

      High-Performance LED Light Bar. The Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam offers modern and customizable lighting options for off-road and automotive enthusiasts. It provides exceptional beam output of 9,500 lumens with a beam distance of 1771 feet (540 meters) and a beam width of 197 feet (60 meters), enhancing visibility and safety during night driving.

      _x000D__x000D_

      Construction and Appearance. This light bar is constructed with durable materials featuring an ultra-reflective honeycomb optic backed by eight high-output Cree XTE 5W LEDs. It includes interchangeable snap-on lens covers in smoked, clear, yellow, and blackout options, along with silicone trim rings available in multiple colors for versatile style customization. Rated IP68 and IP69K, it is waterproof, submersible, and resistant to high-pressure spray.

      _x000D__x000D_

      Installation. Installation is straightforward with an internal mosfet relay system that eliminates the need for external relays. This advanced circuit design simplifies wiring with or without plug-and-play harnesses, and the modular wiring harness allows switching via a trigger wire or universal switch, requiring no drilling in most applications.

      _x000D__x000D_

      Warranty. The product includes a limited lifetime warranty, reflecting its quality and reliability.

      _x000D__x000D_

      Application. This light bar features a universal fit; however, some adaptation or vehicle-specific fit kits may be necessary for proper installation.
