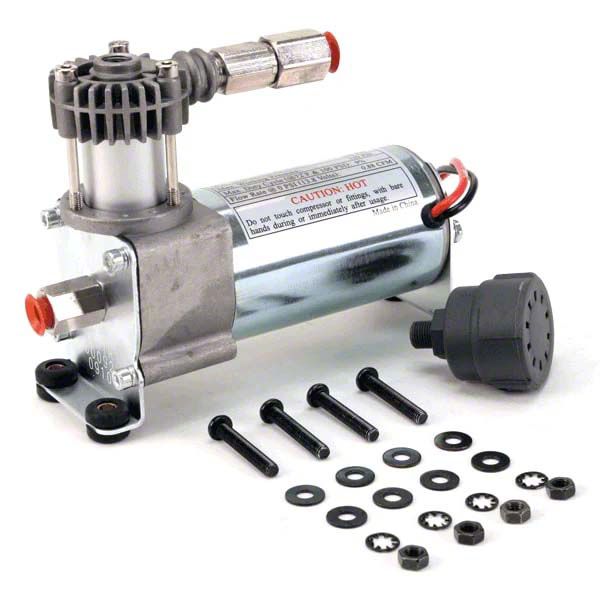

Viair 92C Air Compressor; 120 PSI / 1.03 CFM (Universal; Some Adaptation May Be Required)
Item FR36863
Our Price
$115.95
Military, Medical & First Responders
$5.80 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Light Duty Air Compressor For Smaller Pneumatic Requirements _x000D_
- Designed To Fill No Larger Than A 1 Gallon Tank _x000D_
- Features A Removable Air Filter _x000D_
- Includes Check Valve And Mounting Hardware _x000D_
- ISO 9001 Quality Standard _x000D_
- 12 Volt & 24 Volt Compatibility _x000D_
- Oil-less And Direct-Drive Design _x000D_
- Aims For 0% Failure Rate Through Unmatched Testing _x000D_
- CFM: 1.03 @ 0 PSI _x000D_
- Permanent Magnetic Motor _x000D_
- Duty Cycle: 9% @ 100 PSI _x000D_
- Maximum Working Pressure: 120 PSI _x000D_
- Maximum Air Tank Size: 1.0 Gallon _x000D_
- Maximum Amp Draw: 10 Amps _x000D_
- Ingress Protection Rating: IP54 _x000D_
- Maximum Ambient Temperature: +158°F _x000D_
- Minimum Ambient Temperature: -40°F _x000D_
- Dimensions: 7.6 Inches L x 2.0 Inches W x 4.6 Inches H _x000D_
- Net Weight: 2.45 Pounds _x000D_
- Inrush Current @ 0 PSI: 27.6 Amps _x000D_
- Noise Level @ 0 PSI: 62.1 dB _x000D_
- Includes Vibration Isolators And Direct Mount Air Filter Assembly _x000D_
- Installation Instructions Provided _x000D_
- Use Thread Sealant For Installation; Thread Tape Not Recommended _x000D_
- Recommended Torque For 1/8” Threads: 10 to 11 ft. lbs. _x000D_
- Recommended Torque For 1/4” And 3/8” Threads: 16 to 18 ft. lbs. _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Compact Pneumatic Solution. The Viair 92C Air Compressor; 120 PSI / 1.03 CFM is a light duty compressor designed for smaller pneumatic needs such as inflating small air tanks up to one gallon. It offers reliable, portable compressed air without the bulk of larger units, making it ideal for hobbyists and professionals alike.
_x000D__x000D_Construction and Appearance. This compressor features a sturdy permanent magnetic motor with an oil-less and direct-drive design housed in a compact frame. Built to meet ISO 9001 quality standards, it has a protective finish with an ingress protection rating of IP54, ensuring resilience against dust and moisture in demanding environments.
_x000D__x000D_Installation. Installation is straightforward with included mounting hardware and vibration isolators, requiring only basic tools without the need for extensive drilling. Users should use thread sealant for all fittings to ensure proper sealing and durability. Recommended torque settings are 10 to 11 ft. lbs. for 1/8” threads, and 16 to 18 ft. lbs. for 1/4” and 3/8” threads.
_x000D__x000D_Application. Fits universal setups though some adaptation may be necessary depending on specific configurations. It is designed for smaller air tanks not exceeding one gallon, making it ideal for compact pneumatic applications.
Viair 00092
