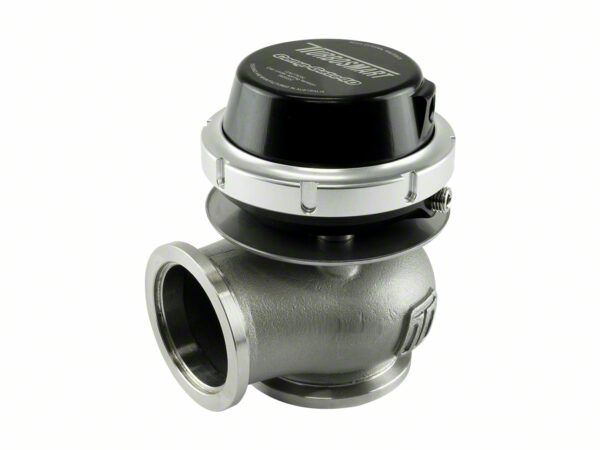

Turbosmart Gen4 CompGate40 External Wastegate; 7 PSI; Black (Universal; Some Adaptation May Be Required)
Item CY5076
Our Price
$359.99
Military, Medical & First Responders
$18.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- _x000D_
- Gen4 CompGate40 External Wastegate _x000D_
- 7 PSI Spring Pressure _x000D_
- 40 mm V-Band Inlet and Outlet _x000D_
- Unique Locking Collar Design _x000D_
- Stainless Steel Cast Body _x000D_
- Aluminium Actuator Housing _x000D_
- Springs Available From 3 to 26 PSI _x000D_
- Solid Piece Stainless Steel Valve _x000D_
- Proprietary High-Temperature Silicon Nomex Diaphragm _x000D_
- Twin 1/16” NPT Reference Ports _x000D_
- Supplied with V-Band Clamps, Inlet and Outlet Weld Flanges _x000D_
- Includes Locking Collar Tool and NPT Blanking Plugs _x000D_
- Hand Assembled and Individually Tested _x000D_
- Suitable for Pump Fuel and E85 Applications _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
_x000D__x000D_
Performance External Wastegate. The Turbosmart Gen4 CompGate40 External Wastegate; 7 PSI; Black is designed to regulate and control turbo boost pressure efficiently. It is primarily used in forced induction systems to divert exhaust gases away from the turbocharger turbine wheel, ensuring optimal boost levels are maintained and protecting the engine from overboost conditions. This wastegate offers reliable performance and is ideal for street applications that require a dependable boost control solution without motorsport-grade specifications.
_x000D__x000D_Construction and Appearance. Constructed with a stainless steel cast body and an aluminium actuator housing, the wastegate is built for durability and heat resistance. It features a solid stainless steel valve and a proprietary high-temperature silicon Nomex diaphragm to withstand high thermal and mechanical stresses. The unit has a sleek black finish and includes precision-engineered 40 mm V-band inlet and outlet connections for secure and efficient fitment.
_x000D__x000D_Installation. Installation of the Gen4 CompGate40 is straightforward with no special drilling required, as it is designed to fit standard 40 mm peer flange configurations. The unique locking collar design simplifies spring replacement and adjustment while ensuring vibration resistance during operation.
_x000D__x000D_Warranty. The product is backed by a manufacturer warranty ensuring quality and reliability for users.
_x000D__x000D_Application. Fits universal; some adaptation may be required for specific setups. The wastegate is suited to various turbocharged systems requiring a 40 mm external wastegate with a 7 PSI spring setting and is compatible with pump fuel and E85 applications.
Turbosmart TS-0505-1006
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- Turbosmart Gen V Wastegate
- Valve Seat
- Inlet V-Band clamp
- Inlet Weld flange
- Outlet V-Band clamp
- Outlet weld flange
- Collar tool
- Spring kit
- Fitting kit
- Turbosmart Sticker
