sPOD BantamX HD with 36-Inch Battery Cables (Universal; Some Adaptation May Be Required)

Item FR29934
Product Image
1 Reviews of sPOD
Our Price

$1,006.50

Military, Medical & First Responders $50.33 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Fully Programmable, Digitally Controlled System
        • _x000D_
      • Eight Circuits Rated at 30 Amps Each at 12.5 VDC
        • _x000D_
      • Sixteen-Position Terminal Block for Easy Accessory Attachment
        • _x000D_
      • Two Controller Ports (RJ45) for Ethernet Cable Connection
        • _x000D_
      • Integrated Low Voltage Cutoff (LVCO) Battery Protection with Optional Override
        • _x000D_
      • One ATM Mini-Style Fuse for LVCO Protection and Reset
        • _x000D_
      • Failsafe Self-Healing Fault Protection System Ranging from 1.5 to 30 Amps
        • _x000D_
      • Current-Sensing MOSFETs Controlled by Microprocessor—No Fuses or Relays Required
        • _x000D_
      • 100 Amp Inline Fuse Included
        • _x000D_
      • Nylon Braided Battery Cables Made from High-Strand Crosslinked Copper Wire with Silicone Jacket
        • _x000D_
      • Operates on Both 12VDC and 24VDC Systems
        • _x000D_
      • Eight-Position Input Terminal Block for Output Control
        • _x000D_
      • Built-In Bluetooth Capabilities for Remote Control and Programming
        • _x000D_
      • Protection Against Overheating, Over-Current, Shorts, Reverse Polarity, and Field Collapse
        • _x000D_
      • Ignition Control and Safety Lock-Out for Switches One and Two (Optional)
        • _x000D_
      • On-Demand Wireless Software Updates and Upgrades
        • _x000D_
      • HD Control Panel Encased in Powder-Coated Black Aluminum Billet Machined Housing
        • _x000D_
      • Silicone Buttons with Positive Tactile Feedback
        • _x000D_
      • Compact Control Panel Dimensions: 2-7/8 Inches Wide, 4-7/8 Inches Long, 1/2 Inch Thick
        • _x000D_
      • Panel Designed to Withstand Harsh Weather Conditions
        • _x000D_
      • Universal Back with Two Pressed-In 1/4-20 Studs for Flat Mounting
        • _x000D_
      • Supports Communication via Standard RJ45 Jack and CAT-6 Ethernet Cable up to 25 Feet
        • _x000D_
      • Three Levels of Secured or Open Bluetooth Pairing and Connectivity
        • _x000D_
      • All Eight Switches Programmable for Dimming, Flash, Momentary, Strobe, and Switch Linking
        • _x000D_
      • Switches are Backlit with Adjustable RGB Backlight Color and Intensity
        • _x000D_
      • Panel Lock-Out Feature for Safety and Security
        • _x000D_
      • Compatible with External Controllers Including Third-Party Switches, Computers, Arduino, Raspberry Pi, and More
        • _x000D_
      • Fits Universal - Some Adaptation May Be Required
        • _x000D_

      Description

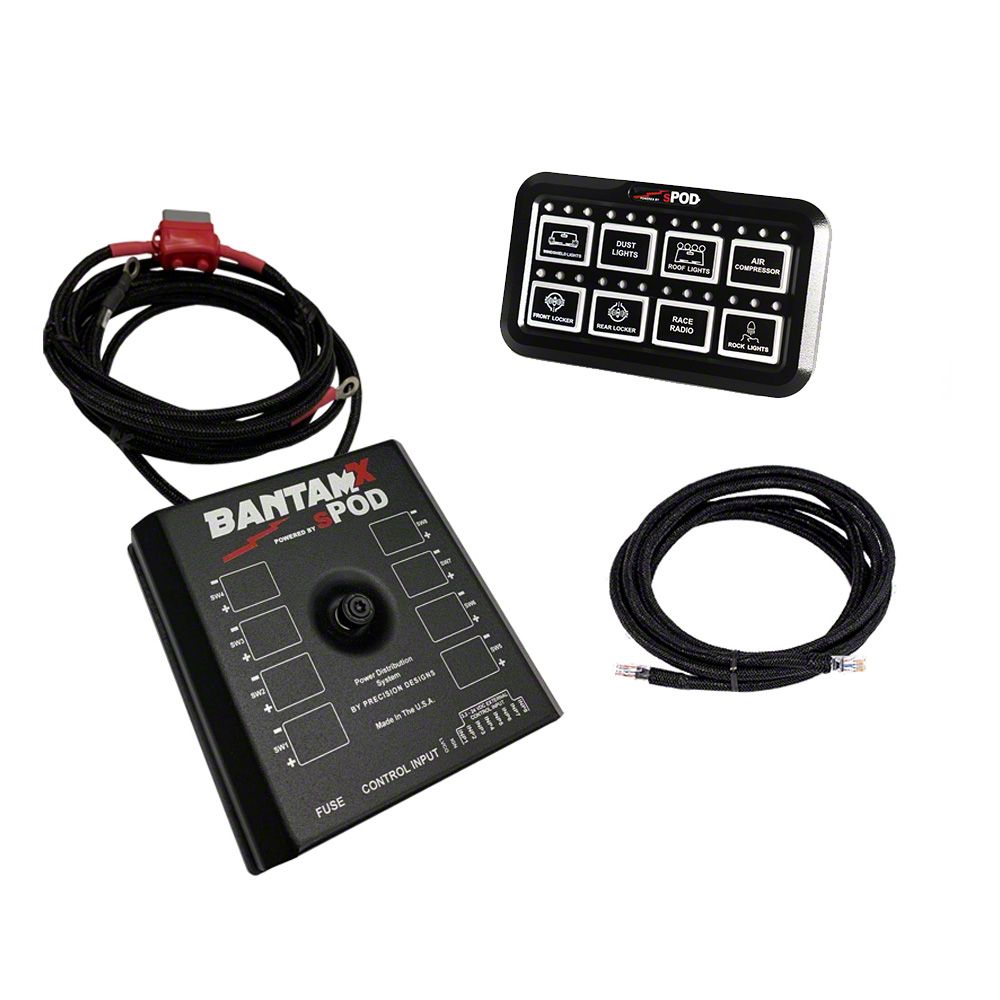

      Advanced Power Management. The sPOD BantamX HD with 36-Inch Battery Cables is an innovative, fully programmable power control system designed for managing vehicle accessories. It simplifies wiring by consolidating control into a single clean interface using Ethernet connectivity, reducing installation time and complexity. This system is ideal for powering and managing multiple 12V or 24V DC aftermarket accessories while providing critical battery protection and customizable control options.

      _x000D__x000D_

      Construction and Appearance. The unit features a durable powder-coated steel base with built-in hardware and a silicone gasket for weatherproofing. Its black aluminum billet machined housing encloses the HD control panel, which includes tactile silicone buttons for reliable performance in harsh conditions. The compact design measures less than 5 inches in length and presents a professional and rugged appearance optimized for tough environments.

      _x000D__x000D_

      Installation. Installation requires basic electrical knowledge but does not require cutting or tapping into the vehicle's factory wiring. The system includes mounting hardware and a universal mounting bracket, allowing secure attachment in most applications without drilling. The plug-and-play Ethernet connection enables panel placement up to 25 feet from the power source.

      _x000D__x000D_

      Application. Fits universal - some adaptation may be required.

      sPOD BXHDUNI36

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      5.0

      Reviews of sPOD Interior Products (1)

      Questions & Answers

      No questions about this product yet. Ask the First Question
