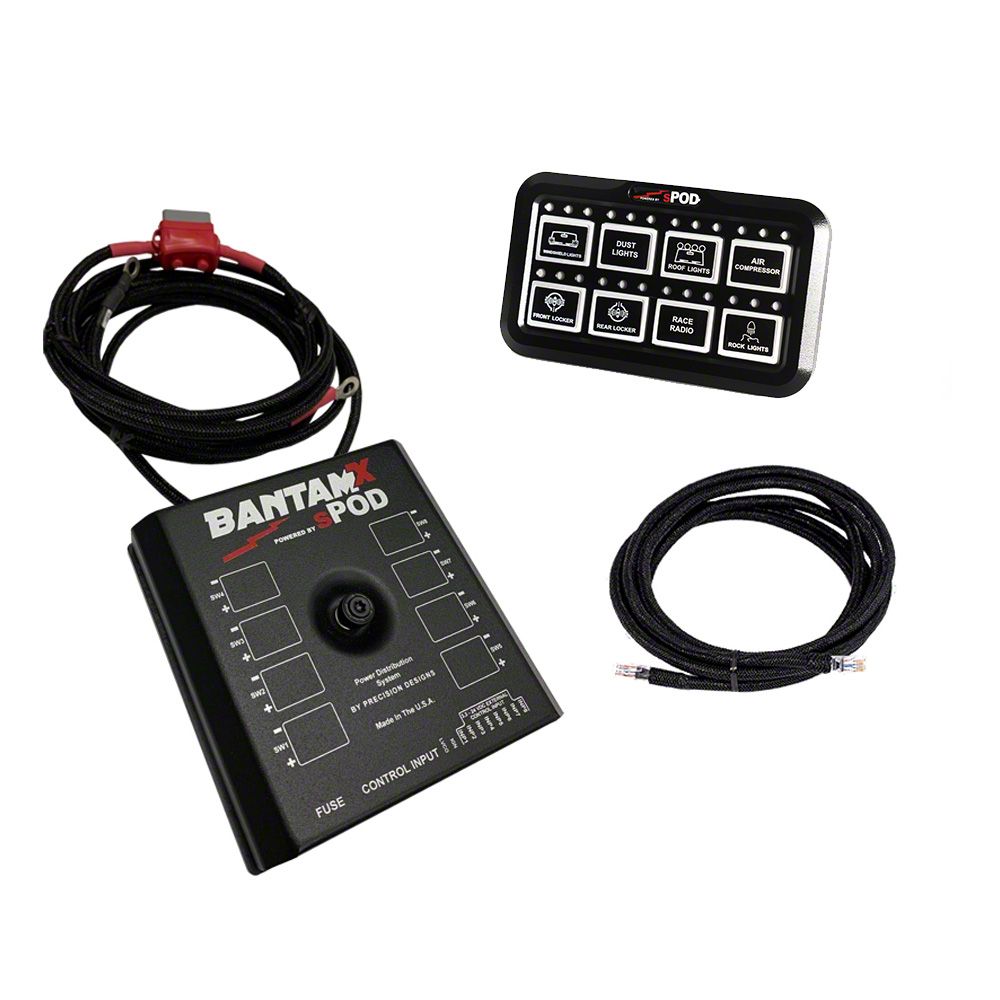

sPOD BantamX HD with 36-Inch Battery Cables (Universal; Some Adaptation May Be Required)

Item CY10827
Product Image
1 Reviews of sPOD
Our Price

$1,006.50

Military, Medical & First Responders $50.33 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Fully Programmable Digital Control System Supporting 8 Circuits at 30 Amps Each (12.5 VDC)
      • 16-Position Terminal Block for Easy Attachment of Accessories
      • 2 Controller Ports (RJ45) for Ethernet Cable Connections
      • Integrated Low Voltage Cutoff (LVCO) Battery Protection with Optional Override
      • One ATM Mini-Style Fuse for LVCO Protection and Reset
      • Failsafe Self-Healing Fault Protection System Rated from 1.5 to 30 Amps
      • Current-Sensing MOSFETs Controlled by Microprocessor — No Fuses or Relays Required
      • 100 Amp In-Line Fuse Included
      • Nylon Braided Battery Cables Composed of Hi-Strand Crosslinked Copper Wire with Silicone Jacket
      • Operates on 12VDC or 24VDC Systems
      • 8-Position Input Terminal Block for Controlling Outputs
      • Built-In Bluetooth Capabilities for Remote Control
      • Protection Against Overheating, Over-Current, Short Circuits, Reverse Polarity, and Field Collapse
      • Optional Ignition Control and Safety Lock-Out for Switches 1 and 2
      • On-Demand Wireless Software Updates and Upgrades
      • Powder-Coated Steel Base with Built-In Mounting Hardware
      • Silicone Gasket Provides Weatherproofing
      • Simple Aluminum Lid with Thumb Screw Fastening and Silkscreened Outlines for Legend Placement
      • Universal and Vehicle-Specific Mounting Options Available
      • Robust Insulated Base and Cover
      • Includes HD Control Panel Made from Machined Aluminum Billet Housing with Silicone Tactile Switches
      • HD Control Panel Features Backlit Switches, RGB Color and Intensity Customization, and Status Lights
      • HD Control Panel Supports Bluetooth LE Programming via Free App
      • HD Control Panel Can Be Mounted up to 25 Feet from Source Using CAT-6 Ethernet Cable
      • Supports Advanced Features Through Pro-Series Mobile App, Including Timers, Switch Lockout, Ignition Control, and Strobe Patterns
      • Compatible with External Controllers Such as Third-Party Switches, Arduino, Raspberry Pi, and Alpine Audio Systems
      • Fits Universal; Some Adaptation May Be Required

      Description

      Advanced Power Management. The sPOD BantamX HD with 36-Inch Battery Cables is a compact, fully programmable control system designed to manage up to eight high-current circuits for automotive 12V or 24V DC accessories. It streamlines wiring and installation by requiring only one Ethernet cable into the cab, significantly reducing setup time and complexity. The system is ideal for managing aftermarket electrical accessories safely and efficiently.

      Construction and Appearance. The system features a powder-coated steel base with a robust silicone gasket for weatherproofing, complemented by a simple and durable aluminum lid secured by thumb screws. The included HD control panel is machined from billet aluminum housing tactile silicone-encapsulated switches and customizable RGB backlighting, ensuring durability and an attractive finish suitable for harsh environments.

      Installation. Installation is straightforward, with universal and vehicle-specific mounting options. No cutting or tapping into the vehicle’s electrical system is required. The system connects via standard CAT-6 Ethernet cable, allowing the control panel to be mounted up to 25 feet from the power source.

      Application. Fits universal; some adaptation may be required. This product is designed to be compatible with a wide variety of vehicles and accessory setups, offering flexibility for diverse automotive electrical configurations.

      sPOD BXHDUNI36
