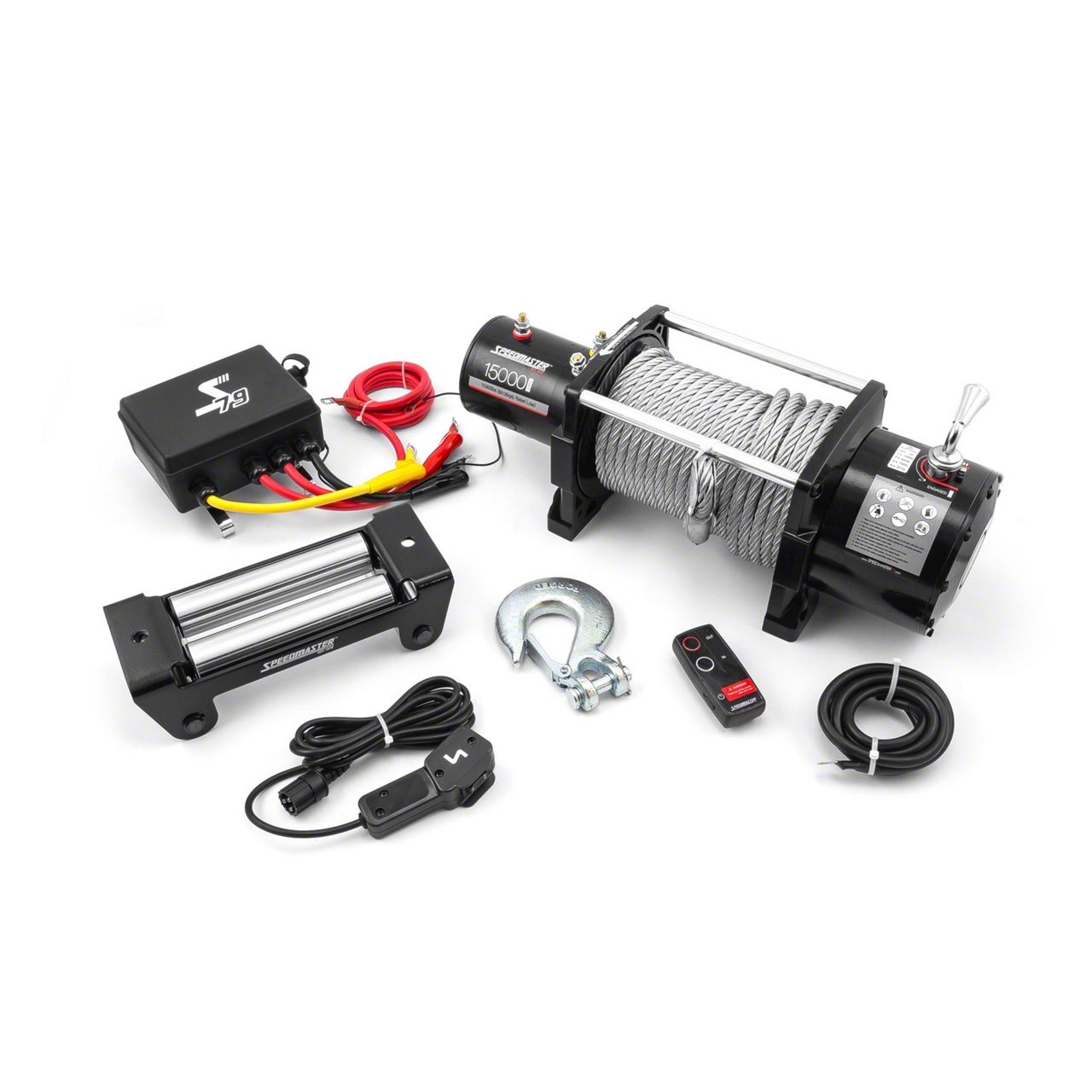

Speedmaster 15,000 lb. Winch with Steel Cable and Wireless Control (Universal; Some Adaptation May Be Required)

Item U56589-AT
Product Image
Our Price

$622.70

Military, Medical & First Responders $31.14 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Description, Q&A, Specs & Installation

      Description

      OverviewSpeedmaster winches are the complete recovery system, built with the muscle and reliability to pull you through any situation.SpecsBrand: SpeedmasterPart Number: PCE553.1006Part Type: WinchWinch Style: ElectricPull Rating (lbs): 15,000 lbs. (6803kg)Volts: 12 VWinch Fairlead Type: RollerRemote Included: YesRemote: Remote switch,12ft (3.7m)lead + WirelessFree-Spooling Clutch: Sliding Ring GearBrake: Automatic In-The-DrumPower Out: YesDrive Gear: 3-Stage Differential PlanetaryWinch Line Included: YesWinch Line Type: CableWinch Line Diameter (in): 1/2 in. (12.7mm)Winch Line Material: SteelWinch Line Length (ft): 85 ft. (26m)Weight: 117.000 lbs. (53.1kg)Motor Horsepower: 6.0 hpGear Reduction Ratio: 265.2:1Drum Diameter (in): 2.500 in. (63.5mm)Drum Length (in): 8.800 in. (224mm)Overall Dimensions (in): 558mm(L) x 203mm(W) x 304mm(H)Winch Finish: BlackRecommended Battery: 650CCA min.Quantity: Sold as a kit.AttachmentsInstructionsDescriptionThe Speedmaster 4wd winches emcompass all the best features you could want in a winch. Ranging from 2500lb - 15000lb, they can handle any situation you could get into. Every winch is finished with a black powder coat with stainless steel hardware, an aluminum cross bars to provide great looking, and long lifetime. They include a wired remote switch and a wireless remote control, waterproof box with the versatility to be mounted over the winch motor or winch cable, a four way roller fairlead, and forged hook.Electric winch with Permanent MagnetModel Capcity Power Steel cable Size (L X W X H) NWPCE553.1006 15000LB DC12V 12.7mm X 26m 558mm(L) X 203mm(W) X 304mm(H) 53.1KGPull, Speed, Amperes, Volts (First Layer)Line Pull (lbs./ kg) Line Speed FPM(m/min) Motor (Amps)0 22.0ft (6.8m) 803000 (1361) 11.5ft (3.5m) 1706000 (2722) 9.8ft (3.0m) 2109000 (3629) 8.2ft (2.5m) 25012000 (4536) 6.8ft (2.1m) 30015000 (5909) 5.6ft (1.7m) 360Line Pull And Rope Capacity In LayerLayer Rated Line Pull (lbs./kgs) Total Rope On Drum (ft/m )1 15000 (6804) 21 (6.4)2 12273 (5567) 46 (14.0)3 10385 (4711) 63.0 (19.4)

      Speedmaster PCE553.1006

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Tech Specs

      Questions & Answers

      No questions about this product yet. Ask the First Question
